High speed checkweigher
group nameOnline automatic checkweigher
-
Min Order1 piece
brand nameSyndar
modelCW3016L03,CW3516L08,CW4016L15
payment methodT/T
-
update timeFri, 26 Feb 2021 17:35:48 GMT
Paramtents
The check weigher shows the graduation 0.02g;
Checkweigher machine checkweighing range 1-300g;
checkweigher scales ±0.15-0.3g;
Rejection device air blowing type, push rod type
Rejection device lever type, up and down flap optional;
Number of checkweighing stages standard 2 stages, optional 3 stages;
Packging & Delivery
Min Order1 piece
Briefing
The high-precision, high-speed checkweigher replaces manual labor and improves production efficiency.
Detailed
Using High speed checkweigher<CW-3016 Series>, you can：
●automatic checkweigher (applicable to sanitary control area (IP65)
●High speed checkweigher According to the size, the checkweigher conveyor can weigh up to 600 products per minute
●The checkweigher conveyor is easy to disassemble and assemble, easy to maintain and easy to clean.
●Can be customized according to different chassis materials, checkweigher belt and other standard parts.
High speed checkweigher<CW-3016 Series> advantages:
High speed checkweigher<CW-3016 Series> is SYNDAR's new online automatic checkweigher, which is suitable for packaging weight detection at the end of the production line or large weight in beverage and logistics conveying systems to achieve high speed, high precision and high reliability.
●10.4" color touch screen
●The checkweigher design signal processing algorithm realizes the non-photoelectric and photoelectric check weighing, adapting to different packaging objects.
●Online checkweigher intelligent hardware high-speed filtering improves filtering ability, stability and reliability.
●Checkweigher equipment can maintain first-class accuracy during long-term operation or environmental changes.
●Checkweigher belt high-speed, high-precision weighing, with an accuracy of up to 0.2g (3σ), and a maximum speed of 600 pieces per minute.
|
Product number
|
CW3016L03 |
CW3516L08 | CW4016L15 |
|
Display index
|
0.02g
|
0.05g | 0.1g |
|
Checkweighing range
|
1-300g
|
1-800g | 2-1500g |
|
Checkweighing accuracy
|
±0.05-0.3g
|
±0.2-0.5g | ±0.2-0.6g |
Weighing section size | L 300mm*W 160mm | L:350mm*W 160mm | L 400mm*W160mm |
Applicable product size | L≤200mm，W≤160mm | L≤230mm，W≤160mm | L≤280mm，W≤160mm |
Weighing control system | Use SYNDAR weighing controller system V1.15 | ||
Belt speed | 5-90/minuteStandard configuration (customizable <600/min) | ||
Quantity | 20-50 kinds | ||
Rejection device | Air blowing type, push rod type, lever type, up and down flaps are optional; | ||
Number of checkweighing sections | Standard 2 sections, optional 3 sections; | ||

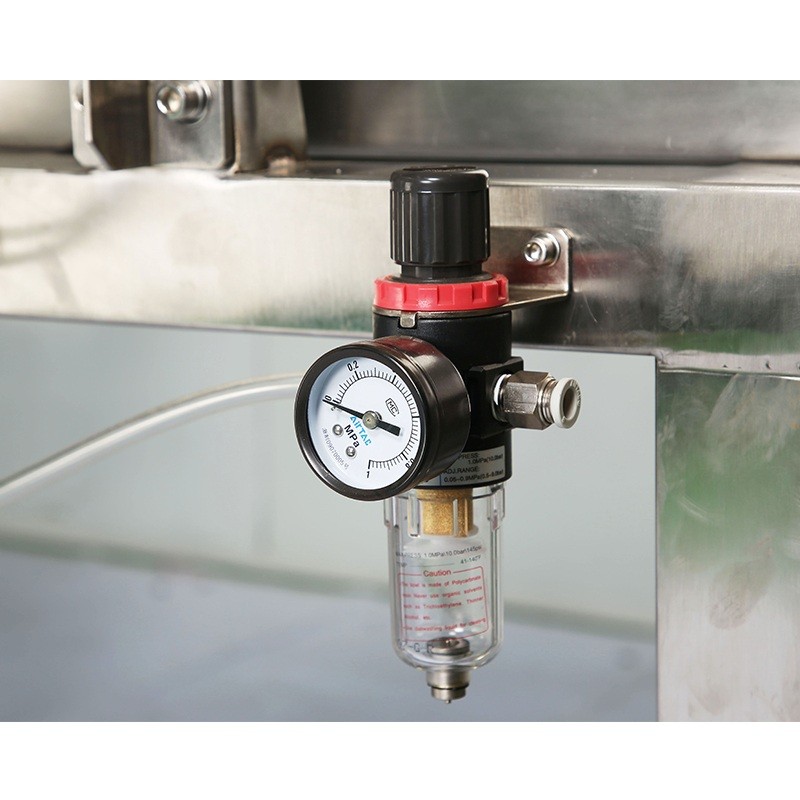

Standard technical parameters | Power supply: standard single-phase AC200~240V, 50/60Hz, 0.4KW, optional three-phase AC380V, 50/60Hz, 0.4KW Air source: dry 0.5~0.8MPa (5~8bar) Temperature: Operating temperature: 0℃~40℃, storage temperature: -20℃~60℃ Humidity: 10~90%RH, no condensation Protection level: IP30, IP54, IP65 optional Noise: ≤75db Machine weight: ≈60kg Working height: 750±50mm (confirm when ordering other heights) | ||
Material | checkweigher load cell: aluminum, stainless steel optional Roller: Aluminum Structure: stainless steel 304, Conveyor belt: white, food grade, thermoplastic polyurethane (TPU) | ||
Product size chart
Features of Glass X-ray inspection:
checkweigher software weighing data recognition is faster and more stable.
Can store multiple weighing information, U disk export EXCEL table data
The checkweigher high speed can trace product information with EMS, WMS and other systems to ensure no missing data.
The checkweigher food can effectively protect the overload capacity of the sensor under severe impact or heavy pressure, leaving the weighing and accuracy intact.
Applications
The hardware conveyor belt checkweigher scale is a kind of equipment that can detect whether the weight is qualified when the checkweigher belt is running.
Boxed mask weighing scale: weight detection, heavy and light weight detection. FCL masks missing package/box detection, etc.;.
The checkweigher food industry is suitable for Snack checkweigher to process sugar-coated products.
Nominal weight, content of pre-packed bags, and classification into different weight areas, SYNDAR automatic checkweigher can monitor the entire packaging process.
