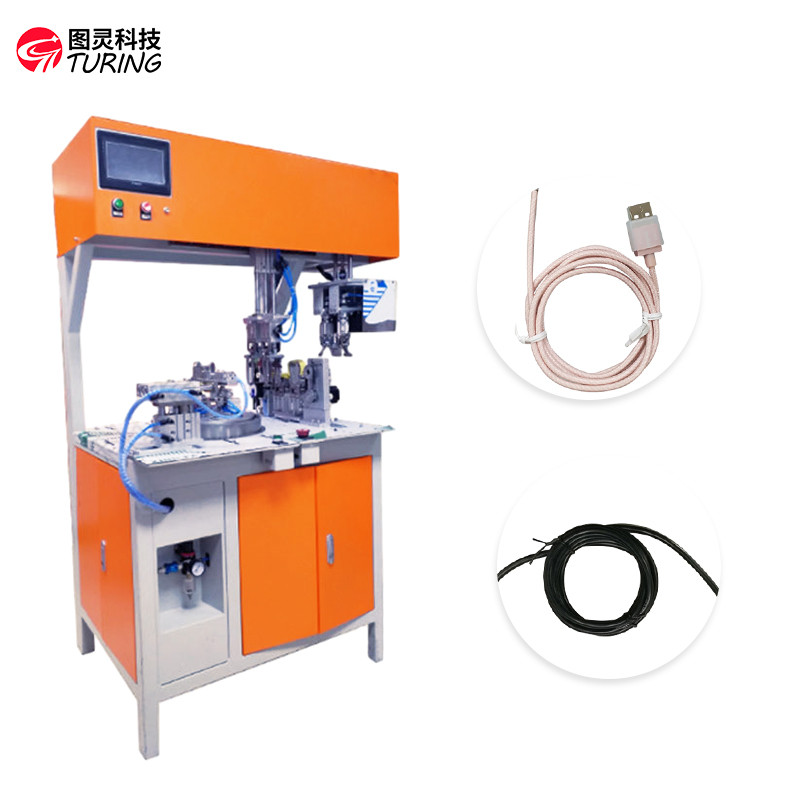

TR-BS0 Data Cable Power Cable Tying Small Circle Winding And Tying Machine
group nameCable Winding and bunding Machine
-
Min Order1 piece
brand nameTuring
modelTR-BS0
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 05 Dec 2025 22:48:58 GMT
Paramtents
Power AC220V/50HZ,
Application Winding and Binding Machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-BS0 Data Cable Power Cable Tying Small Circle Winding And Tying Machine
Detailed
TR-BS0 Data Cable Power Cable Tying Small Circle Winding And Tying Machine
Applicable
materials：Wire Tube Vine
Lap Speed：adjustable
Applicable Ties：Coated iron core, coreless
size & weight：1170*720*1600mm，120kg
auxiliary drive：Servo and stepper
Voltage requirement：210V-240V 5A
Finished Appearance：Double Tie in Circles
electricity
consumption：1.5 kWh for 12 hours
theoretical
production：1200pcs/h
gas
consumption：Gas consumption of
common peeler
Applicable
length：≤6m (depending on wire material)
Air Pressure
Requirements：0.4-0.55Mpa
tie into a
diameter of：≤18mm
leave the
head long：≤100mm
Applicable
Diameter：≤Φ4mm
leave the
tail long：≤100mm
center distance：45-120mm
Data Cable Tying Small 8-Shaped Winding And Tying Machine
1. TOUCH SCREEN
Intelligent control panel high-definition display intelligent key control More convenient to use
Multi-faceted display of operating status
2. BOBBIN WINDER
High quality material with high strength
CNC-machined oxidized surface ensures long time stable operation and high quality surface Running speed up to 1200 lines/hour
03 YADEKECYLINDER
Three-axis cylinders with cushioning from AT&TLong service life ,Safe maintenance is quaranteed
