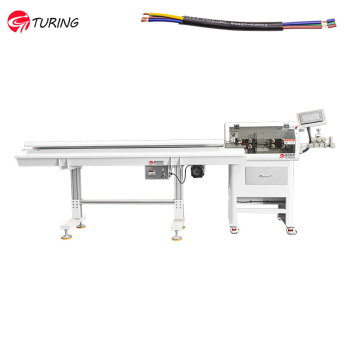

TR-8030HYJS Automatic 30 square 16mm round sheathed wire inner and outer jacket stripping machine with take-up stand

  • group nameComputer Wire Stripping Machine

  • Min Order1 piece

  • brand nameTuring

  • modelTR-8030HYJS

  • payment methodWestern Union, MoneyGram, T/T

  • update timeFri, 05 Dec 2025 22:22:28 GMT

Paramtents

  • Power AC220V/50HZ,

  • Name wire inner and outer sheath stripping machine

  • Contact coco 0086 18666170785

Packging & Delivery

  • Min Order1 piece

Briefing

TR-8030HYJS Automatic 30 square 16mm round sheathed wire inner and outer jacket stripping machine with take-up stand.
Fully automatic inner and outer jacket stripping and cutting. Wire without embossing and scratching. With extra long take-up device.Round sheathed wire stripping outer skin, core wire stripping at the same time, cutting a complete;Round sheathed wires are cut off at one time, double-ended inner and outer stripping, outer skin without indentation, inner and outer skins are stripped together.

Detailed

TR-8030HYJS fully automatic round sheathed wire inner and outer sheath stripping machine
Applicable wires : New energy cable, automobile power distribution box large square cable, BV/BVR/PVC wire, etc.
Functionality : ①Wire, cable, fully automatic cutting and stripping. ② multi-core sheathed wire, outer skin peeling, inner core wire peeling, cutting off a complete.
Strip length : Front-end full stripping: 1-200mm, front-end half stripping 1-500mm; rear-end full stripping: 1-80mm.Rear end half stripped 1-200mm (different lines, the situation is different, to the actual test)
Catheter Diameter : Φ 16
Cutting length : 1mm-99999.99mm
Stripping range : 1-30 sq. ft. (including sheathed wires up to 6 cores)
Production capacity : 2000 pcs/hour (800 pcs/hour for sheathed wire) depending on the length and size of the wire.
Cutting Tolerance : Within 0.002*L (L=cutting length)
Display method : 7" true color touch screen
Cutting tool materials : High quality imported high speed steel
Driving method : 16-wheel drive (silent hybrid stepper motor, servo tool holder)
Wire feeding method : Belt feeding, no embossed marks and scratches on the cable
Automatic 30 square 16mm round sheathed wire inner and outer jacket stripping machine with take-up stand.Fully automatic inner and outer jacket stripping and cutting. Wire without embossing and scratching. With extra long take-up device. Round sheathed wire stripping outer skin, core wire stripping at the same time, cutting a complete;Round sheathed wires are cut off at one time, double-ended inner and outer stripping, outer skin without indentation, inner and outer skins are stripped together.
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
TR-8030HYJN fully automatic round sheathed wire inner and outer sheath stripping machine
Nearest port for product export
Yantian, Huangpu, Shekou, Nansha
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
Acceptable payment methods
T/T, MoneyGram, Westem Union, Cash
