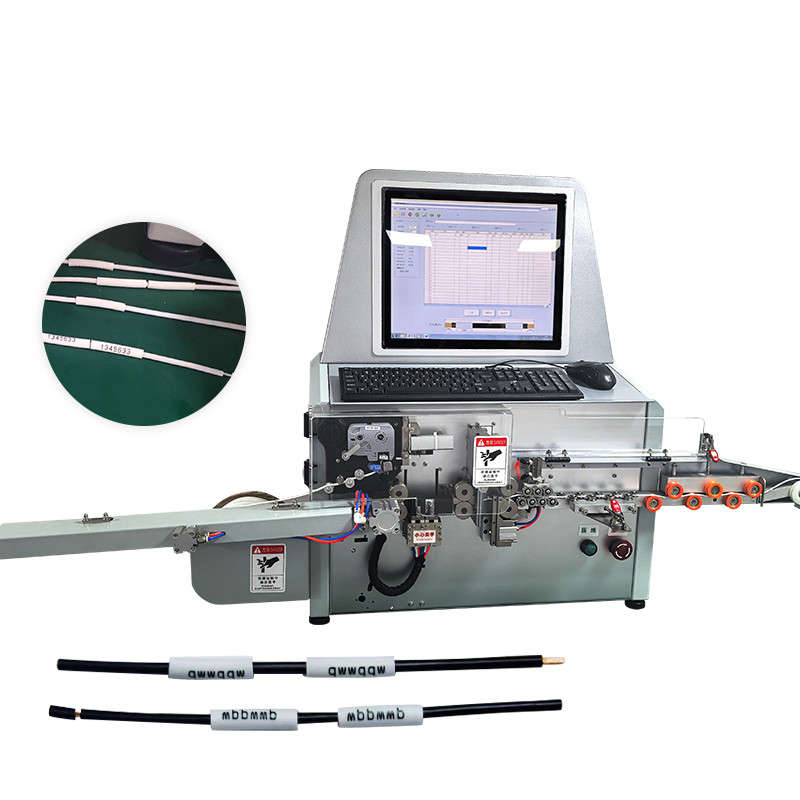

TR-YY20/30 Threading Number tube Stripping Machine
group nameSemi-automatic Pneumatic Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-YY20/30
payment methodWestern Union, MoneyGram, T/T
-
update timeSat, 06 Dec 2025 04:35:13 GMT
Paramtents
Operating power 220VAC/50Hz 1000W
Cutting line length 150mm-20000mm
speed 600 strips/hour
Packging & Delivery
Min Order1 piece
Briefing
TR-YY20/30 Threading Number tube Stripping Machine.The number tube printing module, Za wire release module, cutting and stripping module, casing module, the first end of the wire head pressure deflate module, the hub device, exce report data organisation and saving.
Detailed
TR-YY20/30 Threading Number tube Stripping Machine
Cutting length: 150mm-20000mm
Power supply: 220VAC/50Hz 1000W
Opening speed: 600 / hour (tube length of 20mm or so with the same code, line length of 800mm as an example)
Number tube length: 20mm or 30mm (other tube lengths need to be customized)
Software operating environment: windows 7, windows 10, exce control mode: all-in-one computer, PC software control
Input mode: PC software direct input or Excel import
Connection: USB and RS232 serial port
Casing options: casing or no casing
The use of wire range: 2.5-6mm ² national standard conventional BVR class insulated wire, plastic insulation diameter ± 0.1mm
Scope of application: number tube printing module, Za wire release module, cutting and stripping module, casing module, the first end of the wire head deflating module, the hub device, exce report data organization and preservation.
