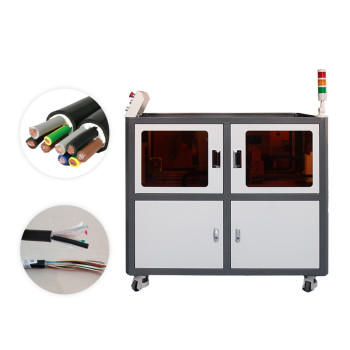

TR-8050 Semi-automatic Coaxial Wire Stripping Machine
group nameSemi-automatic Coaxial Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-8050
payment methodWestern Union, MoneyGram, T/T
-
update timeSat, 06 Dec 2025 08:36:29 GMT
Paramtents
Power AC220V/50HZ,
Function Cable Stripping Machine
Cable diameter Φ10mm-Φ50mm
Packging & Delivery
Min Order1 piece
Briefing
TR-8050 Semi-automatic Coaxial Wire Stripping Machine
Detailed
TR-8050 Semi-automatic Coaxial Wire Stripping Machine
Power supply: AC220V 50Hz
Size and weight: 1230x600x1240mm, 200kg
Wire diameter range: Φ10mm-Φ50mm
Stripping length: 10mm-800mm
Cutting depth unit: 0.01mm
Maximum number of peeling layers: 9 layers
Working environment: -5~45 degrees dry and vibration-free working surface
Driving mode: motor / Taiwan TBI ball screw drive
Applicable wire: coaxial cable, new energy cable
Rotary cutting blade: 4 pieces of imported tungsten steel
Centering blade: 4 pieces of imported high-speed steel
Clamping device: automatic centering, motor drive, clamping force program control
Start-up mode: induction / manual / foot pedal (optional)
Storage function: 99 kinds of processing parameters
