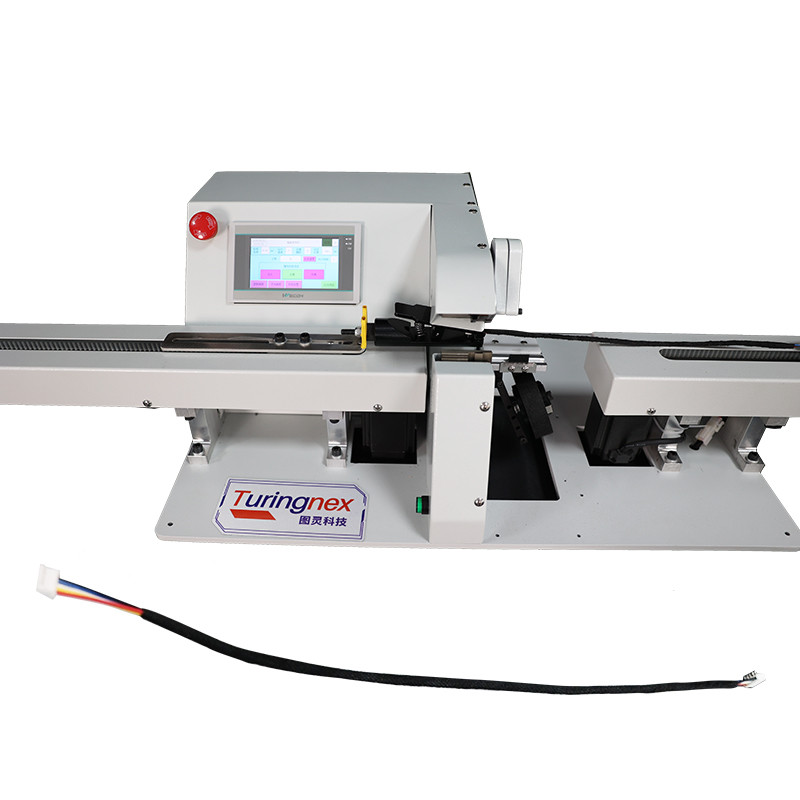

TR-303KL Bilateral Pull Tape Wrapping Machine
group nameFull tape wrapping machine
-
Min Order1 piece
brand nameTuring
modelTR-303KL
payment methodWestern Union, MoneyGram, T/T
-
update timeWed, 09 Sep 2026 07:13:02 GMT
Paramtents
Power AC220V/50HZ,
operating mode Touch Screen
power supply AC220V/DC24V
Warranty 1year
Wire diameter Ф3mm-25mm
Packging & Delivery
Size45cm x35cm x50cm
Min Order1 piece
Briefing
TR-303KL Bilateral Pull Tape Wrapping Machine
Detailed

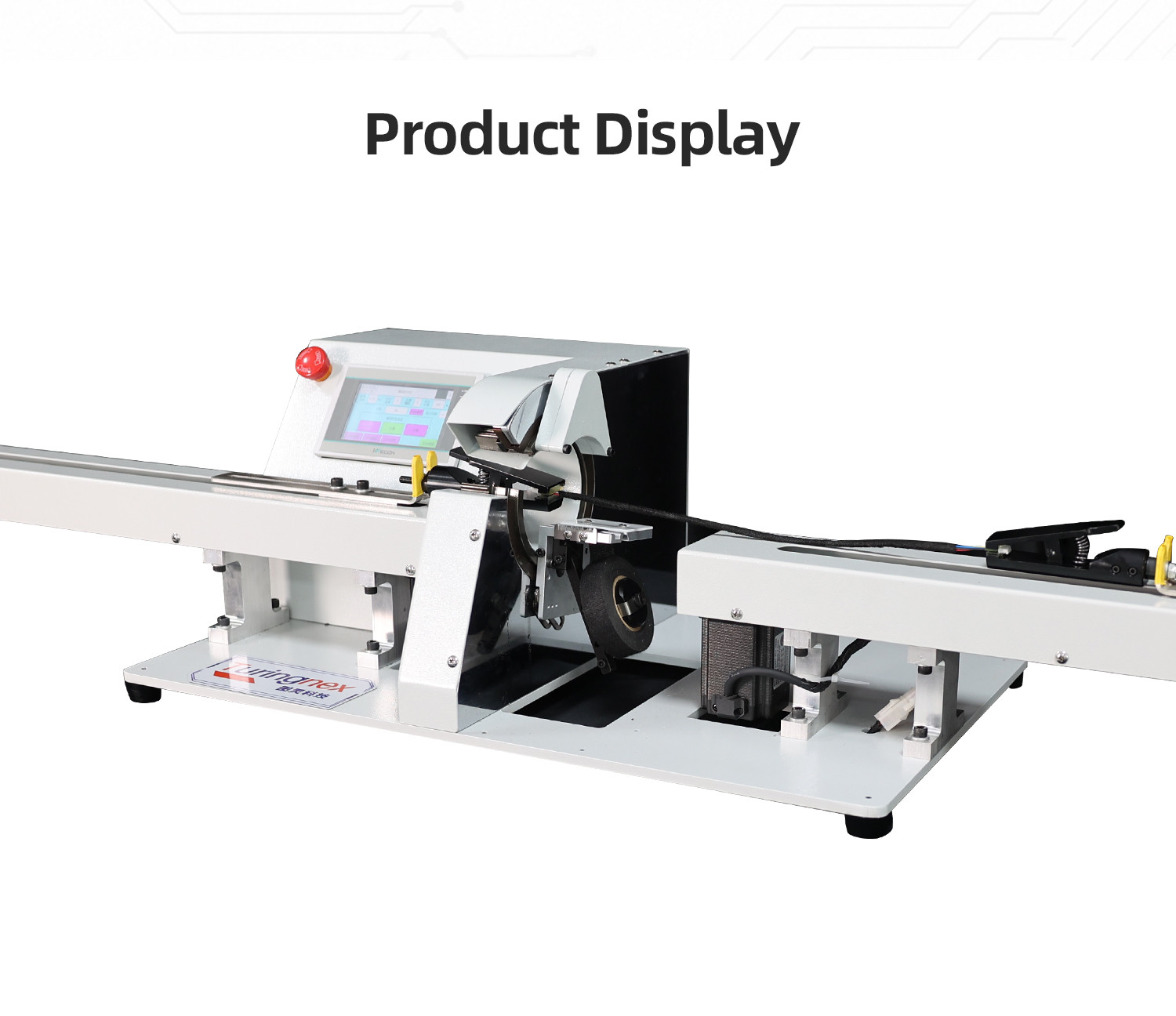

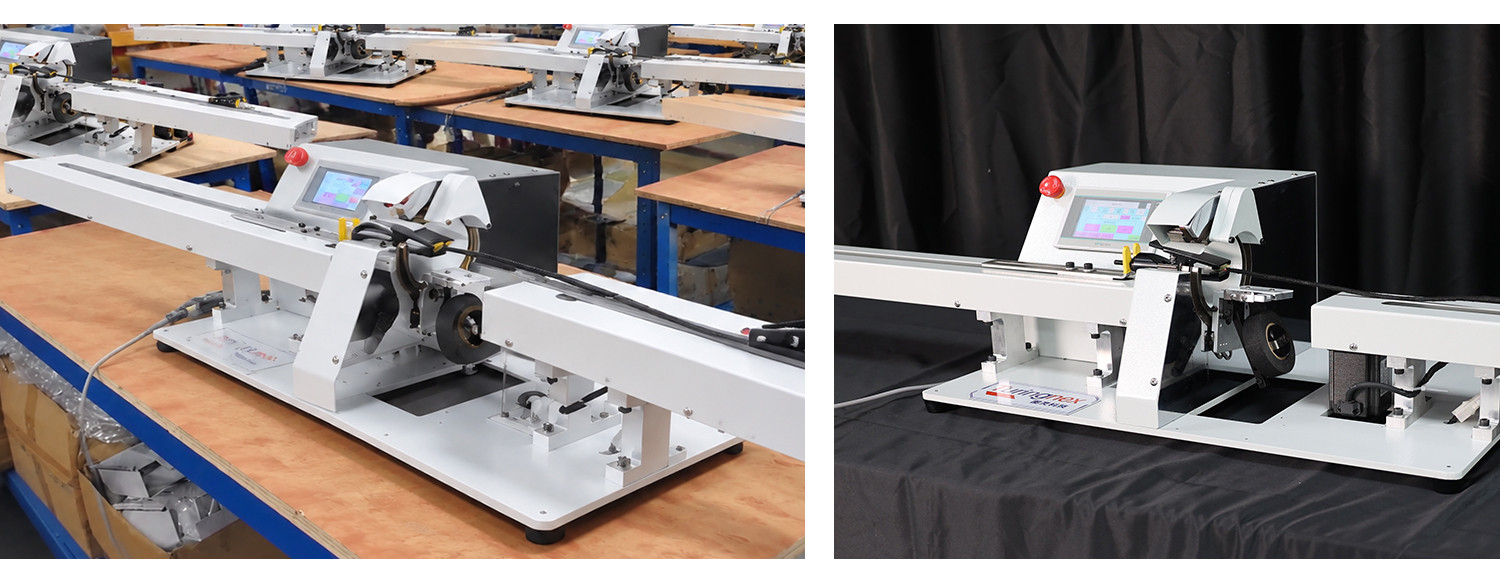

TR-303KL Bilateral Pull Tape Wrapping Machine
Product Highlights

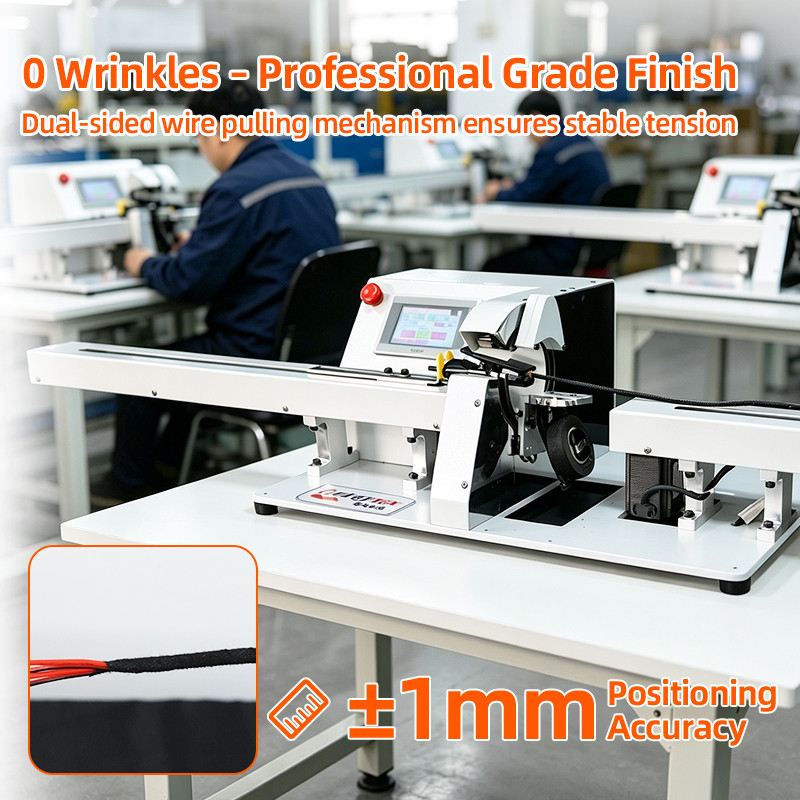

1. High‑precision winding positioning
The positioning accuracy of winding stop position can reach ±1 mm, meeting the precise winding requirements for multi‑section and multi‑branch wire harnesses.
2. Multiple winding modes available

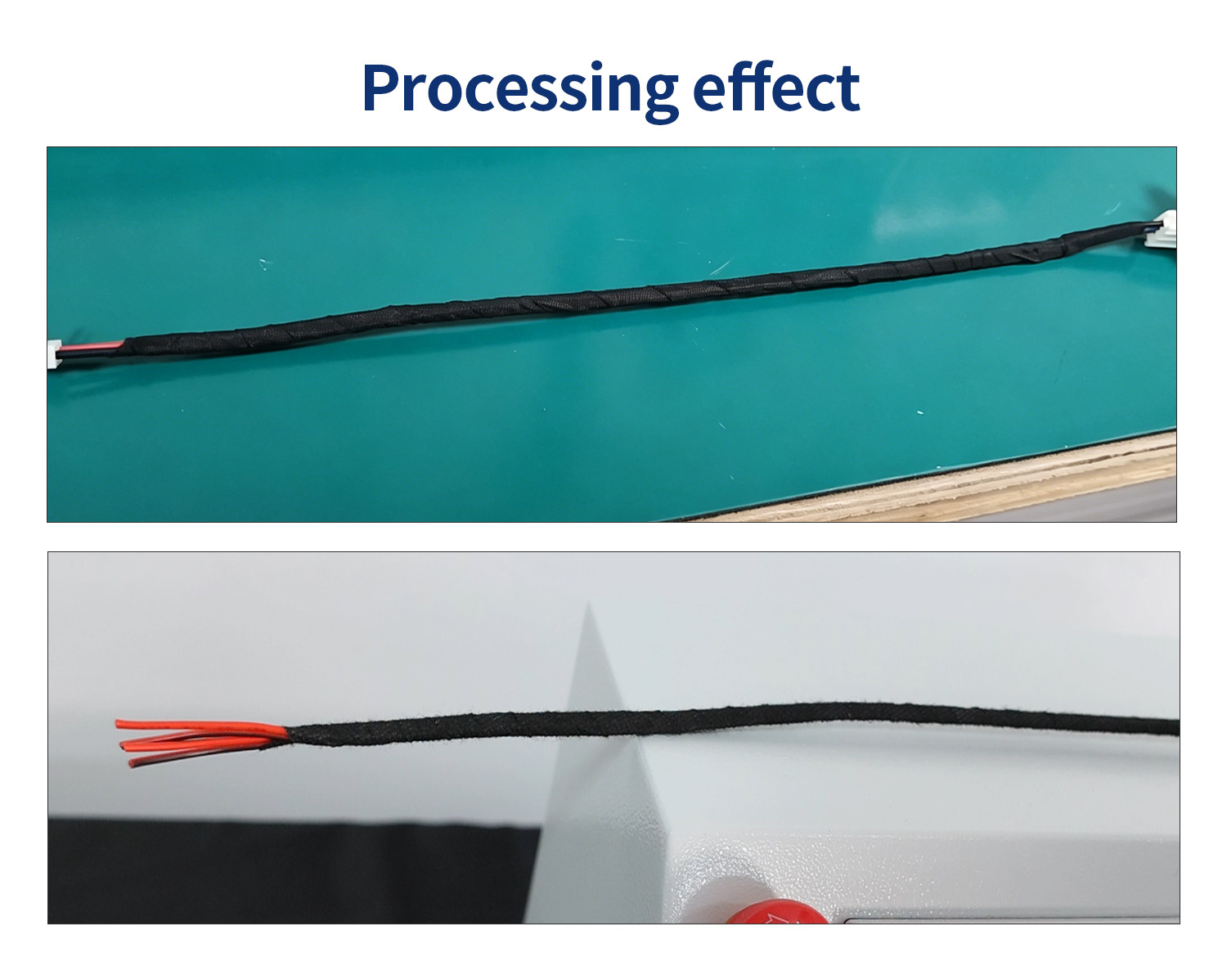

Supports full‑wrap, interval‑wrap and spot‑wrap. The tape overlap area can be adjusted via parameters to fit different processes.
3. Wide application scope
Fits wire diameters from Φ3mm to 25mm. Compatible with various tapes including PVC, cloth‑based, high‑temperature, mica and ceramic tapes.
4. Adjustable rotating speed and wrapping density
Main‑unit rotation speed is adjustable from 200‑1400rpm. Tape‑wrapping density can be set directly on the machine for flexible processing.
5. Customizable winding stroke
Standard winding length is 1050mm; non‑standard customization for longer or shorter lengths is available.

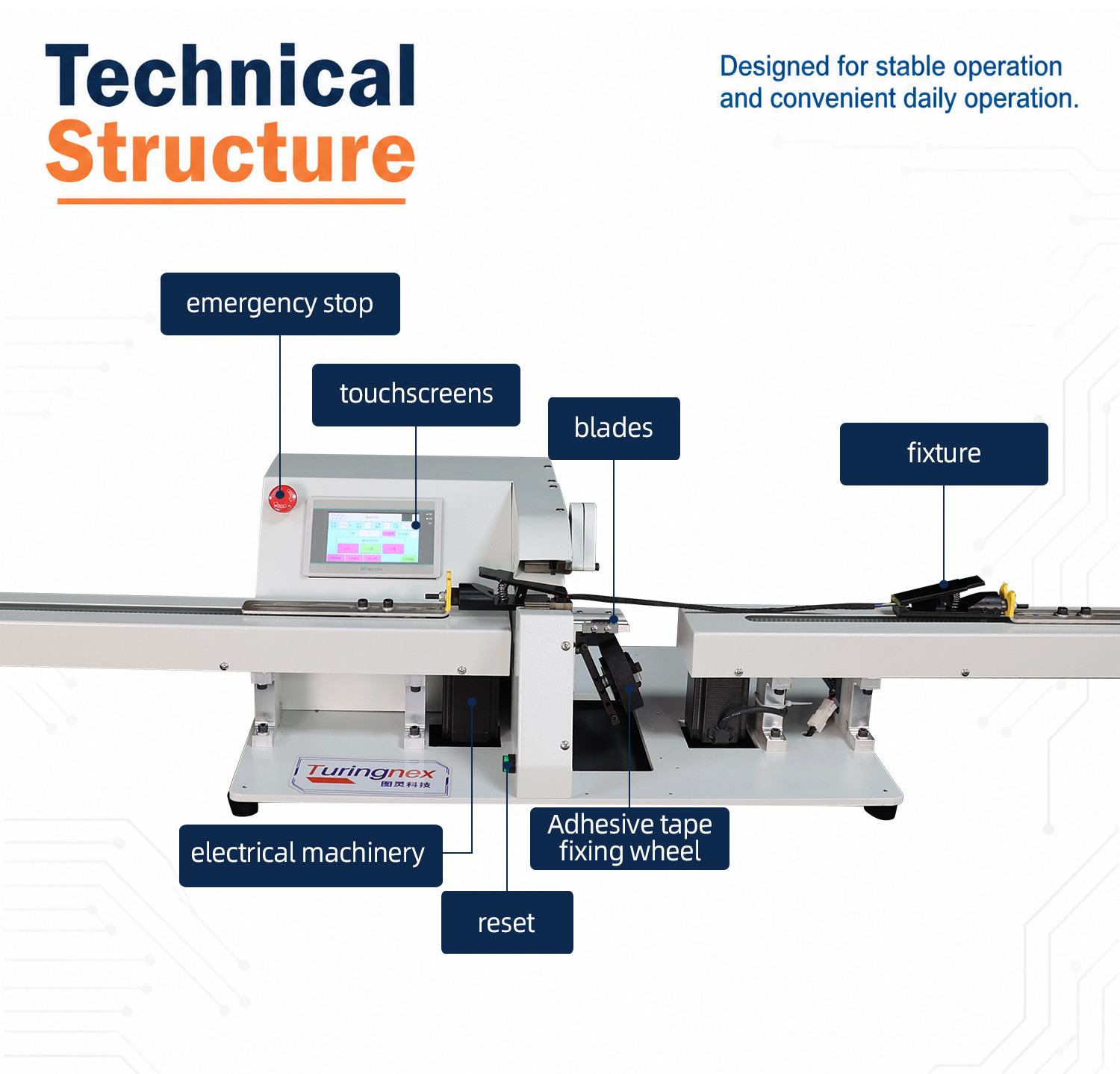

6. Easy operation & strong compatibility
Adopts touch‑screen operation. Supports multiple tape inner‑hole sizes. Optional 110V/220V voltage, suitable for export‑oriented applications.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
Equipment Name | TR-303KL Bilateral Pull Tape Wrapping Machine | |
Power | AC220V/DC24V 50/60HZ 110V optional | |
Size & Weight | 2780mm*380mm*280mm ，48kg | |
operating method | Touch screen | |
Winding method | Ф3mm-25mm | |
OD of tape | Max. 110mm | |
Width of tape | 9-30mm | |
Winding length | 1050mm (longer and shorter can be customised) | |
Density of tape wrapping | Machine settable parameter adjustment | |
Hole size of tape | Ф38 (other sizes need to be informed in advance) | |
Main machine speed | 200-1400 rpm adjustable | |
input voltage | AC220V/DC24V 50/60HZ 110V optional | |

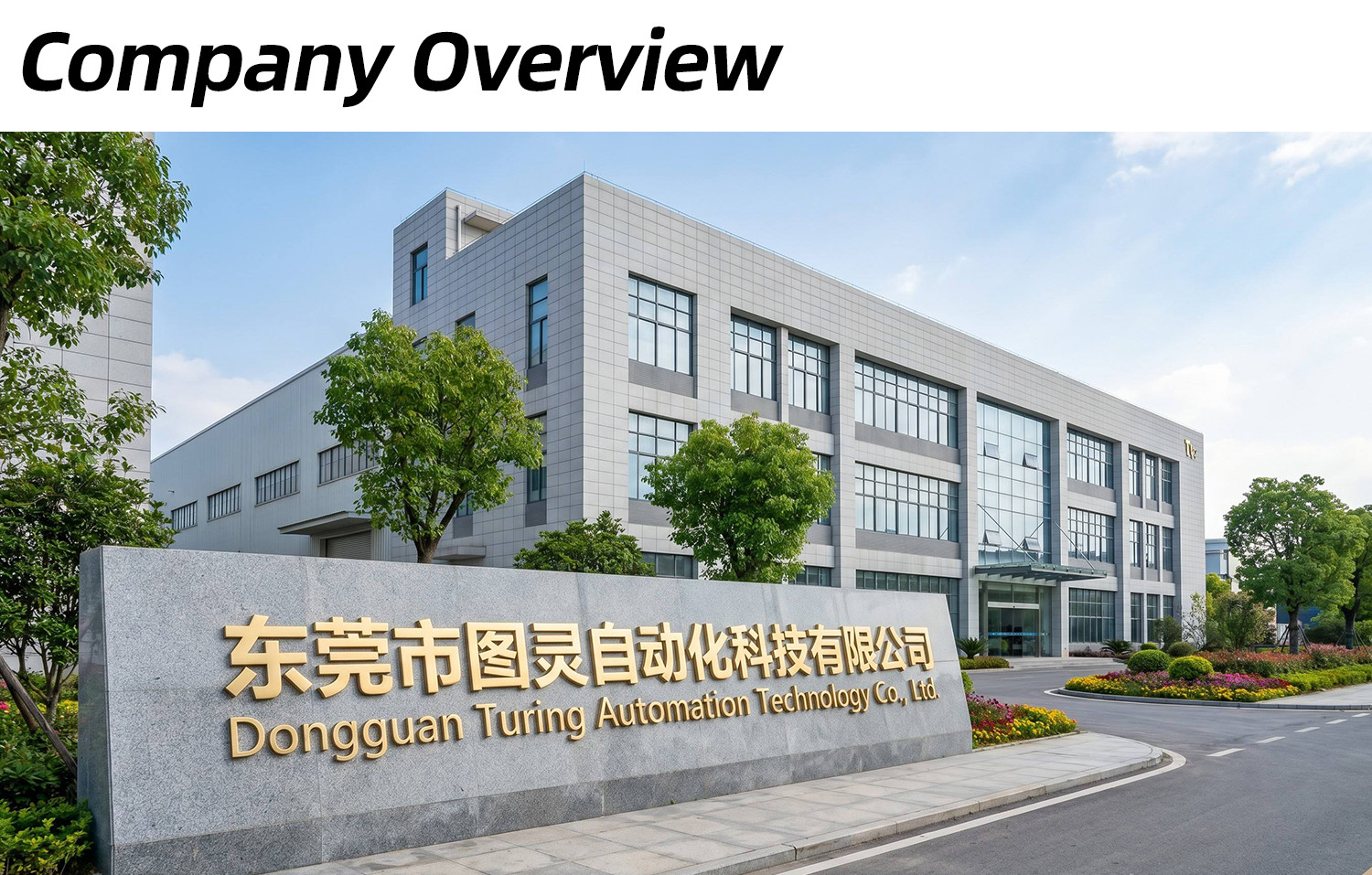

Dongguan Turing Automation Technology Co., Ltd. was founded in 2008 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
