TR-603Q 30 mm² fixed-length cut-off + front-end stripper (Wire diameter range:0.25-30mm²)
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-603Q
payment methodWestern Union, MoneyGram, T/T
-
update timeSat, 06 Dec 2025 01:56:49 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1mm-999999.99mm
Scope of processing 0.25-30mm²
Contact CoCo +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing

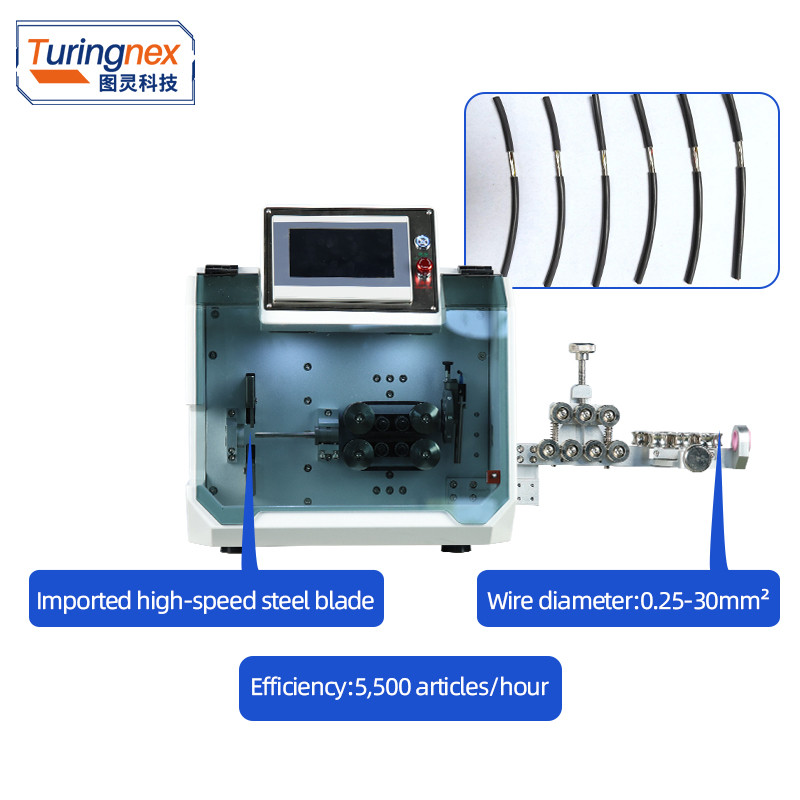

TR-603Q 30 mm² multi-purpose cut-off machine (Fully automatic cut-to-length + front-end stripping)
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR-603Q 30 mm² multi-purpose cut-off machine (Fully automatic cut-to-length + front-end stripping)
Model: TR-603Q
Display: 7-inch human-machine interface
Function: single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cut-off (attached to the front-end stripping function of the wire class)
Type of conductor: single-core wire, multi-core cable, shielded cable, wires, PVC pipes, etc.
Processing range: 0.25 -- 30 sq. ft.
Cutting length: 1mm-999999.99mm
Cutting tolerance: Within 0.002*L (L=cutting length)
Stripping length: front full off: 1-200mm, front half off 1-1500mm
Allowed to pass through the largest diameter: Φ18
Knife material: high quality imported high-speed steel
Productivity: 5500 PCS/hour (according to the length of the line, the size of the depending on the)
Driving mode: 16-wheel drive (feeding stepping motors, knife frame servo motors); can be equipped with optional servo Feeding
Feeding line Mode: Belt feeding, no embossing and scratching on the cable. (with stripping and pressurizing function)
Lifting and lowering operation mode Digital adjustment of the height of the pressure wheel
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air source: 0.5Mpa clean air source
Dimensions: 480*605*520mm
Net weight: 70kg
