TR-615Q 150 mm² fixed-length cut-off + front-end stripper (Wire diameter range:1-150mm²)
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-615Q
payment methodWestern Union, MoneyGram, T/T
-
update timeTue, 31 Mar 2026 03:02:34 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1mm-999999.99mm
Scope of processing 1-150mm²
Contact CoCo +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing

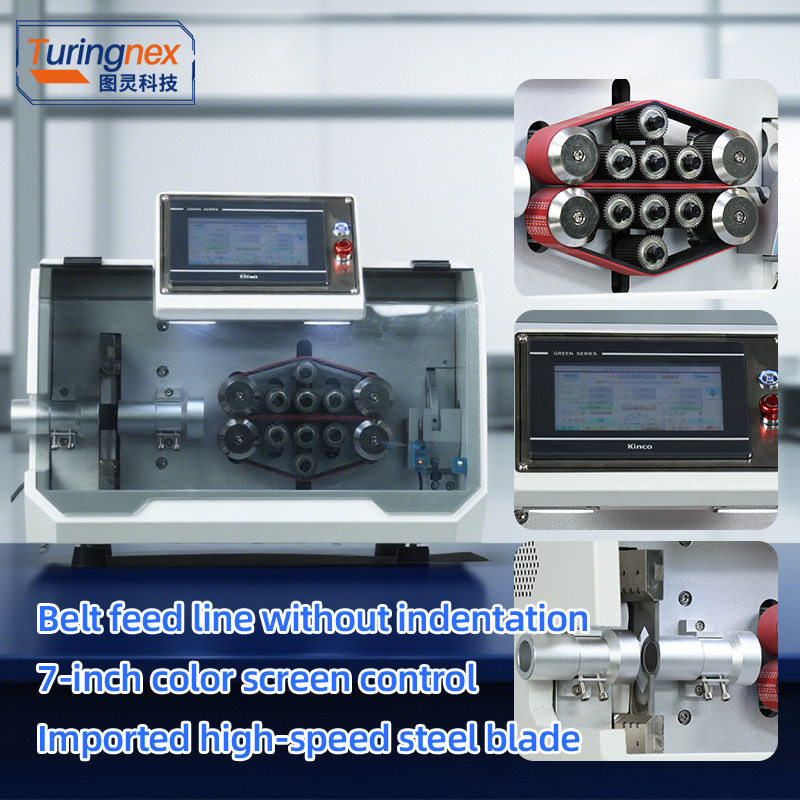

TR-615Q 150mm² multi-purpose cut-off machine (Fully automatic cut-to-length + front-end stripping)
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR-615Q 150mm² multi-purpose cut-off machine (Fully automatic cut-to-length + front-end stripping)
Model: TR-615Q
Display: 7-inch human-machine interface
Function: Wire, cable, flat wire, soft copper row, sheath tube, and other kinds of PVC hose, fully automatic cutting + front stripping
Type of wire: wire, cable, flat wire, soft copper row, sheath tube, and other kinds of PVC hose
Processing range: 1-150 sq. ft.
Cutting length: 1mm-999999.99mm
Cutting tolerance: wire type within 0.002*L (L=cutting length, hose type within 0.003*L (L=cutting length) Stripping length: front stripping: 1-800mm, back stripping: none Allowable: within 0.003*L (L=cutting length) Cutting tolerance: wire within 0.002*L (L=cutting length), hose within 0.003*L (L=cutting length)
Stripping length: front stripping: 1-800mm, back stripping: no
Maximum diameter allowed: Φ33
Knife material: high-quality imported high-speed steel
Productivity: 1800 PCS/hour (according to the length of the line, the size of the decision)
Driving mode: cutter servo, feed stepping ( Optional full servo)
Wire feeding method: belt feeding, cable without embossing and scratch. (with stripping and pressurizing function)
Full load current: 18A (allow the minimum current 10A)
Power supply: 220V/50HZ ±10%
Air source: no
Special function 1: special cable can be customized, need to send a sample line for testing
Special function 2: Stripping and pressurizing, front-end full stripping of the conduit, automatic wire detection
Auxiliary functions: optional: rewinding clamps, rewinding robot, rewinding rack. (Please add module isolation when using)
