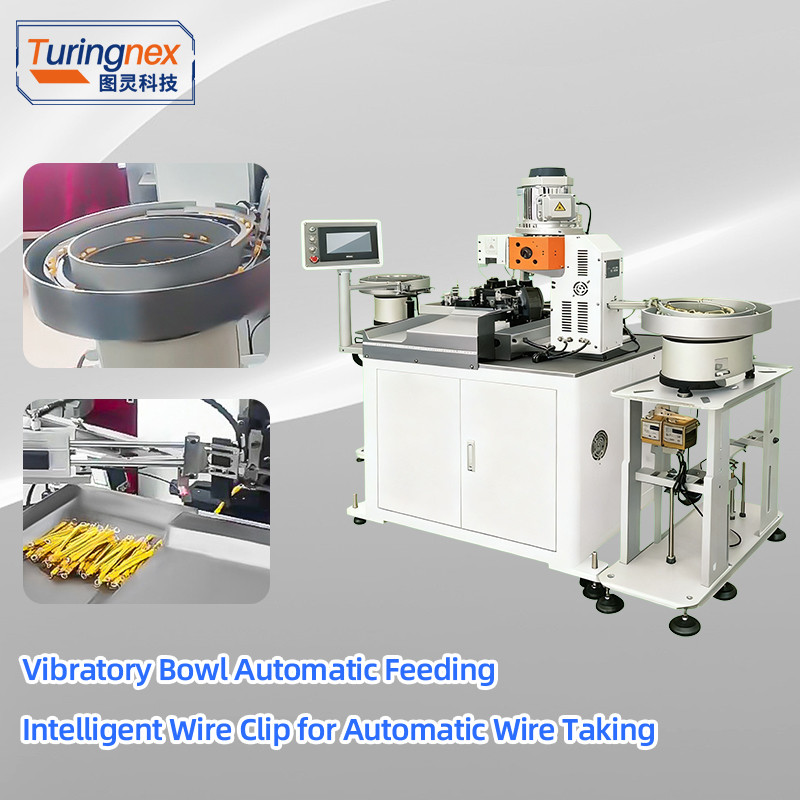

TR-SZ03 Automatic Bulk Tubular Terminal Machine
group nameFully Automatic Terminal Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-SZ03
payment methodWestern Union, MoneyGram, T/T
-
update timeSat, 06 Dec 2025 12:04:47 GMT
Paramtents
Power 3-phase 220V±10% (50/60Hz)
Dimensions & Weight: 2000x1100x1600mm, 580kg
Applicable Wire Gauge AWG#12 ~ AWG#24
Crimping Capacity 2T
Contact Coco : +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-SZ03 Automatic Bulk Tubular Terminal Machine.Adopts Mitsubishi Servo or Xinje (6 servo motors of the whole machine can be configured as required) and ball screw drive for wire feeding, stripping, twisting, crimping, etc. The positions are very precise, and the movements are connected smoothly, with a speed of up to 2000~3000 pcs/hour;
Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;
The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)
Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;
The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)
Detailed
TR-SZ03 Automatic Bulk Tubular Terminal Machine
Power Supply 3-phase 220V±10% (50/60Hz)
Dimension & Weight 2000x1100x1600mm, 580kg
Applicable Wire Gauge AWG#12 ~ AWG#24
Cutting Length 50~9999mm
Efficiency 2000~3000 pcs/hour
Stripping Length 0~15mm
Crimping Capacity 2T
Air Requirement 0.5MPa 150(ANR)/min
Cutting Precision within ±0.1(0.1+0.005*L)mm
Air Pressure 0.6-0.75Mpa(6-7KG/cm³)
Crimping Drive Inverter drive, AC motor
Display Language Chinese
Applicable Wire Types AV、AVS、AVSS、CAVUS、KVKIV、UL
Feature Description
1.Adopts Mitsubishi Servo or Xinje (6 servo motors of the whole machine can be configured as required) and ball screw drive for wire feeding, stripping, twisting, crimping, etc. The positions are very precise, and the movements are connected smoothly, with a speed of up to 2000~3000 pcs/hour;
2.Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;
3.The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
