TR-CG25 Fully Automatic Wire Marking Tube Insertion and Terminal Crimping Machine
group nameInserting Tube Terminal Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-CG25
payment methodWestern Union, MoneyGram, T/T
-
update timeSun, 12 Apr 2026 14:12:28 GMT
Paramtents
Power AC220V 50/60Hz 20A
Application wire cutting, stripping, terminal crimping
Cutting Length 180~20000mm (customizable)
Contact Coco : +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing

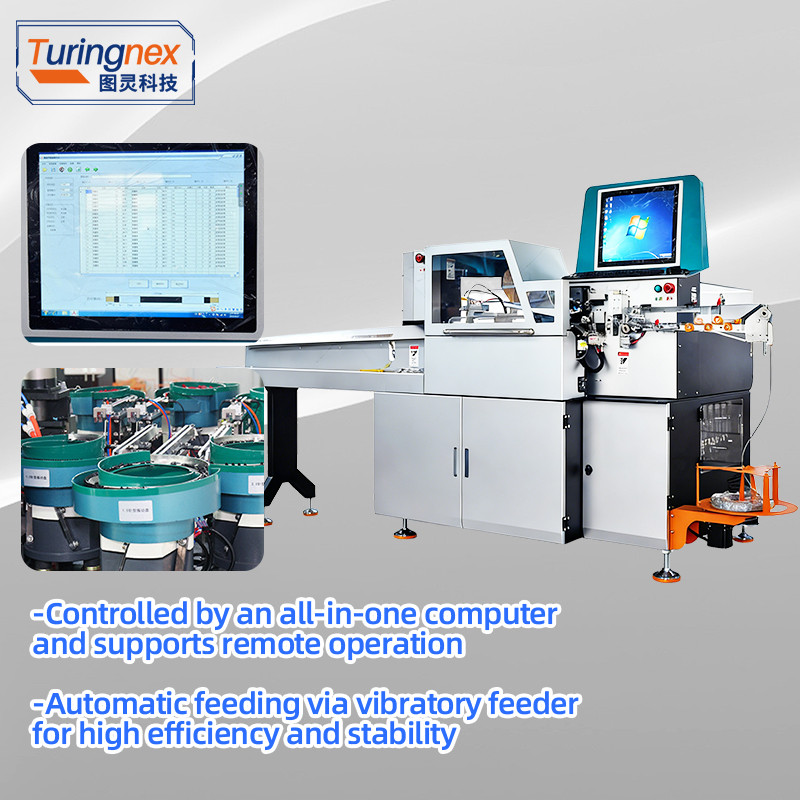

TR-CG25 Fully Automatic Wire Marking Tube Insertion and Terminal Crimping Machine
Detailed
TR-CG25 Fully Automatic Wire Marking Tube Insertion and Terminal Crimping Machine
Power Supply：AC220V/50Hz, 1kW
Marking Tube Length：20mm or 30mm (customizable)
Software Compatibility：Windows 7, Windows 10, Excel
Control Method：19.5-inch all-in-one computer, controlled by PC software
Input Method：Direct input via PC software or Excel import
Wire Range：①1.5mm², 2.5mm² national standard BVR insulated wires (plastic insulation diameter ±0.1mm)
②0.75, 1.0, 4.0mm² (customizable)
Wire Cutting Length：180~20000mm (customizable)
Cooling Method：Forced air cooling
Remarks：Protection and detection functions for wire shortage, no air pressure, marking tube shortage, no ribbon, and failed tube picking/insertion
Equipment Features
1.The length of each wire and characters on the marking tube can be customized; the tube can also be printed in both positive and reverse directions.
2.Just fill in the processing parameters of wires in an Excel table and import it into the system.
3.Maximum processing length up to 10 meters, supports remote operation.
4.Capable of processing tube-type, O-type, U-type terminals; double-head terminals can be cross-crimped.
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
