TR-603Y Large Square Computerized Wire Stripping Machine+ TR-D502 Wire Winding Machine
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-603Y；TR-D502
payment methodWestern Union, MoneyGram, T/T
-
update timeSat, 21 Mar 2026 00:36:43 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1-999999.99mm
Scope of processing 0.75-30mm²
Contact CoCo +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing

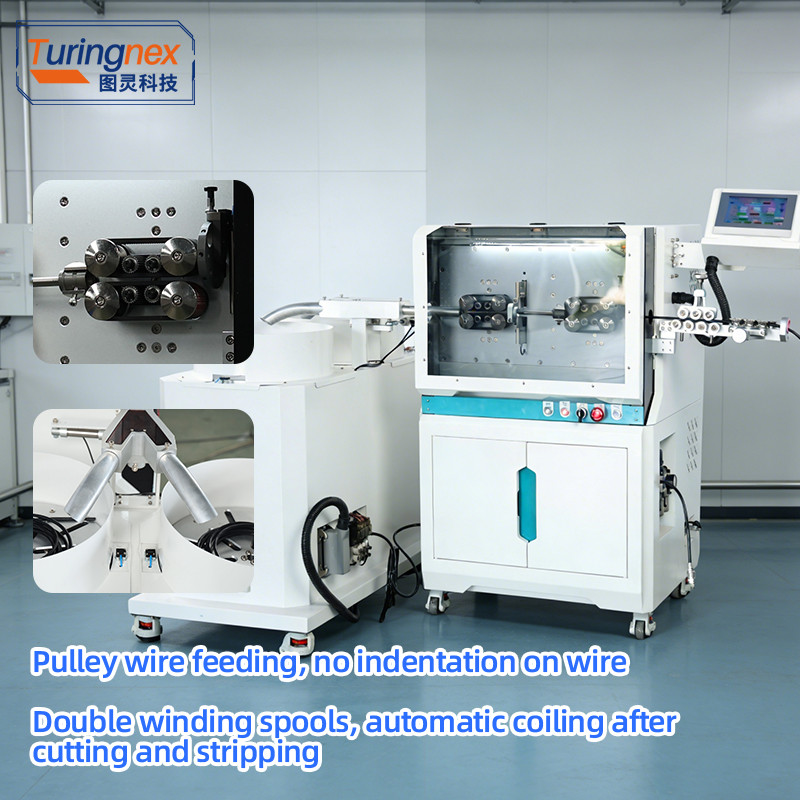

TR-603Y + TR-502 Large Square Computerized Wire Stripping Machine.Wire cutting, stripping and coiling completed in one go
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR-603Y Large Square Computerized Wire Stripping Machine+ TR-D502 Wire Winding Machine
Equipment name: TR-603Y Large Square Computerized Wire Stripping Machine
power supply: AC220V 50/60HZ (1100V 50/60HZ optional)
Display Mode: 7-inch human-machine interface
function: Single-core line, multi-core cable line, shielded cable, fully automatic fixed-length cutting, stripping
Wire Type: Single-core wire, multi-core cable wire, shielded cable, electric wire, PVC, etc.
Scope of processing: 0.75-16mm²
Max. permissible passing diameter: φ18
Cutting length: 1-999999.99mm
Blade Material: Imported high-speed steel
Cutting tolerances: Within 0.002*L (L=cutting length)
Strip length: Front end full release: 1-200mm, front end half release 1-1500mm; Rear end full release: 1-100mm, Rear end half release 1-300mm
Stripping speed: 3500pcs/H
Size / Weight: 707x590x1140mm, 140kg
Wire feeding method: Belt feeding, cable without embossing marks and scratches. (with stripping and pressurizing function)
Driving method: 16-wheel drive (feed stepper motors, tool holder servo motors); servo feeding optional
Lifting and lowering operation: Digitally adjustable pressure wheel height
note: Ultimate cutting capacity 50 sq. ft.
Features
Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;
User-friendly system, can be operated intuitively through the 7-inch color touch screen;
Modularized interface, convenient to link accessories and peripheral equipment;
Modular design, upgradeable in the future;
Various attached options, customizable system. Special cable processing, non-standard customization.
TR-D502 Dual Winding Machine
Display Mode：Digital tube
Function：Wire winding and coiling Wire Type Electric wires, cables
Number of take-up reels：2
Control Mode：Host follow control
Working Mode：Fully automatic
Diameter of winding reel：2*500mm
Coiling diameter：200-500mm
Coiling speed：2M/s
Drive Mode：Servo motor
Winding completion detection：Optical fiber
Safety device：None / optional light curtain
Dongguan Turing Automation Technology Co., Ltd. was founded in 2020 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
We have rich industry experience and are a trustworthy supplier. Our holding/cooperative factories are equipped with advanced production equipment and skilled front-line employees. Fully aware that the company's development depends on product innovation and quality, we have established a quality management system that meets the requirements of international quality management systems. The company continuously launches original innovations based on market and customer needs, always maintaining the novelty and innovation of products. We think what customers think and prioritize what customers need. Providing customers with excellent services and meeting their needs is our eternal pursuit!
