TR-JG03 Laser Marking Heat-Shrinkable Tube Sleeving Machine
group nameInserting Heat Shrink Tube Baking Machine
-
Min Order1 piece
brand nameTuring
modelTR-JG03
payment methodWestern Union, MoneyGram, T/T
-
update timeTue, 26 May 2026 05:53:25 GMT
Paramtents
Power AC220V/50HZ,
Application heat shrinkable tube baking machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-JG03 Laser Marking Heat-Shrinkable Tube Sleeving Machine，Automatic feeding, laser printing, cutting and heat shrinking.Widely applicable to wire harnesses, electronic connecting wires, board terminal connecting wires, power cords, and AC/DC wires
Detailed

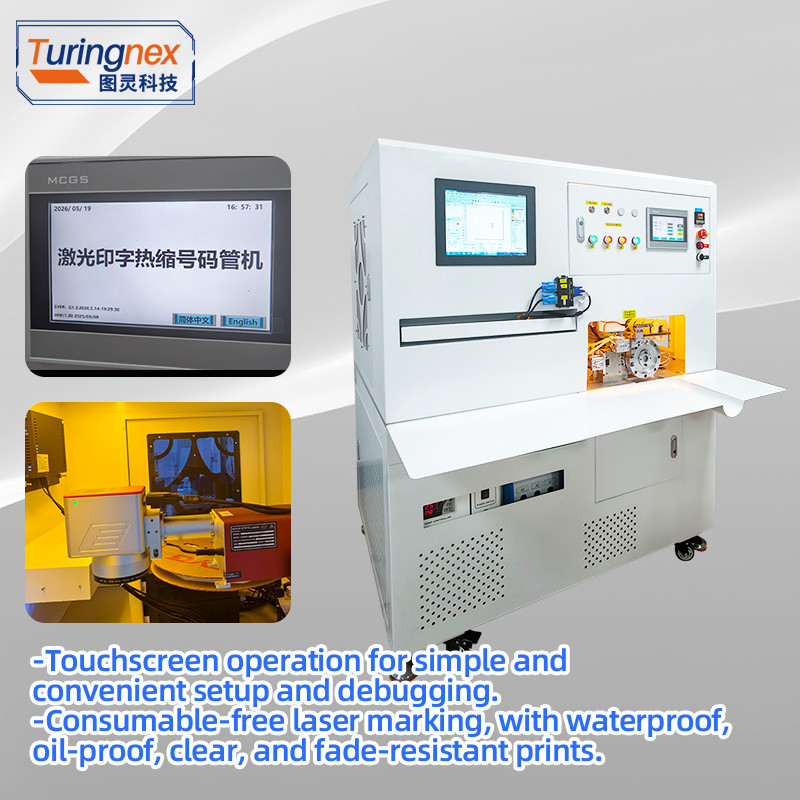

TR-JG03 Laser Marking Heat-Shrinkable Tube Sleeving Machine
Equipment Name: TR-JG03 Laser Marking Heat-Shrinkable Tube Sleeving Machine
Voltage & Power: AC220V 50/60Hz, 2500w
Size & Weight: 900x1020x1480mm, 200kg
Application Scope: Heat-shrinkable tube laser marking
Operation Mode: Passive
Compatible Tube Range: φ1.0-φ6.5 standard round tubes, φ7.0-φ20 flat tubes
Heat-shrinkable Tube Length: Round tubes: 5mm-200mm; Flat tubes: 12mm-100mm (optional fixture required)
Baking Temperature: 0℃-500℃ (adjustable via temperature controller)
Air Pressure Requirement: 0.5/0.65MPa
Operating Temperature: 0℃-50℃
Storage Temperature: -20℃-60℃
Cycle Time: 2.5 seconds
Anti-Interference Capability: Interference Voltage: 1500Vp-p; Pulse Period: 1μs; Duration: 1 minute
Air Requirement: No corrosive gases
Cooling Method: Forced water cooling
Operating Humidity: 10%RH-90%RH (non-condensing)
Product Description
1.Industrial automation PLC, controlled by all-in-one desktop computer and upper computer software, easy to operate, stable performance and high efficiency.
2.Automatic marking of heat-shrinkable tube labels via upper computer software with freely customizable characters; supports different label printing for 2-core wires. The heat-shrinkable tube is automatically fed and cut, with baking length freely adjustable via the fixture and baking position adjustable via the positioning device.
3.Output: 1000-2000 pcs per hour (depending on manual loading speed).
Product Features
1.Standard with robotic arm auto wire pick-up device (applicable to standard wires only, excluding special wires).
2.Adopts UV light source printing technology, with clear, waterproof and oil-proof printed texts. Built-in memory function, supports Excel file import, serial number printing and combined document printing.
3.Laser marking requires no consumables, and works with various colored heat-shrinkable tubes (white, red, blue, etc.) to meet diverse process requirements. When the laser is off, it can process standard black heat-shrinkable tubes, compatible with all functions and fixtures of standard models.
4.Digital temperature adjustment and abnormal heating device monitoring. The heating device automatically protects when air pressure is too low, extending service life.
5.One-click system recovery to prevent parameter adjustment errors by operators.
