Hydraulic Butt Fusion Machine V250 90MM-250MM (2" IPS - 8" IPS)
group nameHydraulic Butt Fusion Machines
-
Min Order1 set
brand nameRIYANG
modelV250
payment methodL/C, Western Union, T/T, Paypal
-
update timeSat, 06 Dec 2025 06:19:02 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1set
Working Range in mm (63*) 90mm - 250mm
Working Range in Inch 2" - 8" IPS
Working Pressure Range 0 - 80Bar
HDPE Welding Standard Applied ISO21307, DVS2207/1, ASTM F2620 etc.
Packging & Delivery
Min Order1 set
Briefing
V250 is an on-site pipe fusion machine suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Detailed
Hydraulic Butt Fusion Machine V250 (63*)90MM-250MM (2" IPS -8" IPS)
The V250 Butt Fusion Welding Machine from RIYANG is designed to meet the demanding requirements of various applications, ensuring precise and reliable fusion welding. Key application areas include:
● Water Infrastructure: Ideal for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
● Gas Distribution Systems: A reliable solution for welding pipes in gas distribution systems, ensuring the integrity of gas infrastructure.
● Industrial Pipelines: Suited for a range of industrial applications utilizing thermoplastic pipes, providing durable fusion joints.
● Mining Industry: The V250 excels in the mining sector, delivering efficient fusion welding for pipelines critical to mining operations, ensuring dependable and durable connections for water, chemicals, or other resources.
|
Product Details
|
|||
|
WELDING RANGE O.D.
|
(63*) 90 - 250 MM
|
WELDING RANGE INCH
|
2" - 8" IPS
|
POWER SUPPLY | 220V±10%, 50/60 HZ | TEMPERATURE RANGE | MAX. 320 ℃ |
HEATER POWER | 2.0 KW | PACKING DIMENSION | 830*520*500 MM |
|
TRIMMER POWER
|
1.5 KW
|
560*540*600 MM
|
|
|
PUMP POWER
|
1.1 KW
|
650*340*380 MM
|
|
WORKING PRESSURE RANGE | 0 - 80 BAR | GROSS WEIGHT | 192KG |
Machine Chassis
● The integral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.

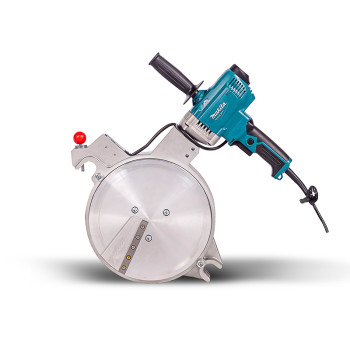

Heating Plate & Trimmer
● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 3°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.
Power Station
● Robust hydraulic power with a maximum system pressure of up to 80 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
Data Logger
Aluminum Stub End Holder
Roller Support
Inserts
About RIYANG
RIYANG Fusion Manufacturing Limited, established in 2010, has emerged as a prominent force in the world of thermoplastic welding equipment. Our journey began with a commitment to reliability, efficiency, ruggedness. At RIYANG, our unwavering dedication to excellence is the cornerstone of our product design, engineering, and manufacturing. We take pride in offering the advanced solutions to meet the evolving needs of the industry. For more information, please explore our RIYANG website at ..........com.
