Hydraulic Butt Fusion Machine V630 315MM-630MM (12" IPS -24" IPS)
group nameHydraulic Butt Fusion Machines
-
Min Order1 set
brand nameRIYANG
modelV630
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 18:08:44 GMT
Paramtents
Certificate CE, ISO9001
Packing Material Plywood Box
MOQ 1set
Working Range in mm 315mm - 630mm
Working Range in Inch 12" - 24" IPS
Working Pressure Range 0 - 120Bar
HDPE Welding Standard Applied ISO21307, DVS2207/1, ASTM F2620 etc.
Packging & Delivery
Min Order1 set
Briefing
V630 is an on-site poly welding machine suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF.
Detailed
Hydraulic Butt Fusion Machine V630 315MM-630MM (12" IPS -24'' IPS)
The V630 Butt Fusion Welding Machine from RIYANG is designed to meet the demanding requirements of various applications, ensuring precise and reliable fusion welding. Key application areas include:
● Water Infrastructure: Ideal for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
● Gas Distribution Systems: A reliable solution for welding pipes in gas distribution systems, ensuring the integrity of gas infrastructure.
● Industrial Pipelines: Suited for a range of industrial applications utilizing thermoplastic pipes, providing durable fusion joints.
● Mining Industry: The V630 excels in the mining sector, delivering efficient fusion welding for pipelines critical to mining operations, ensuring dependable and durable connections for water, chemicals, or other resources.
|
Product Details
|
|||
|
WELDING RANGE O.D.
|
315 - 630MM
|
WELDING RANGE INCH
|
12" - 24" IPS
|
POWER SUPPLY | 380V±10%, 50/60 HZ | TEMPERATURE RANGE | MAX. 280℃ |
HEATER POWER | 9.3 KW | PACKING DIMENSION | 1600*1130*1100 MM |
|
TRIMMER POWER
|
1.5 KW
|
1030*720*1350 MM
|
|
|
PUMP POWER
|
1.5 KW
|
800*350*400 MM
|
|
WORKING PRESSURE RANGE | 0 - 120 BAR | GROSS WEIGHT | 739 KG |
Machine Chassis
● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.
Heating Plate & Trimmer
● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 5°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.

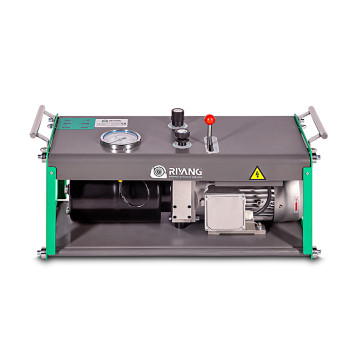

Power Station
● Robust hydraulic power with a maximum system pressure of up to 120 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
Data Logger PEWELDBANK
Aluminum Stub End Holder
Roller Support
Crane
About RIYANG
RIYANG Fusion Manufacturing Limited, established in 2010, has emerged as a prominent force in the world of thermoplastic welding equipment. Our journey began with a commitment to reliability, efficiency, ruggedness. At RIYANG, our unwavering dedication to excellence is the cornerstone of our product design, engineering, and manufacturing. We take pride in offering the advanced solutions to meet the evolving needs of the industry. For more information, please explore our RIYANG website at ..........com.
