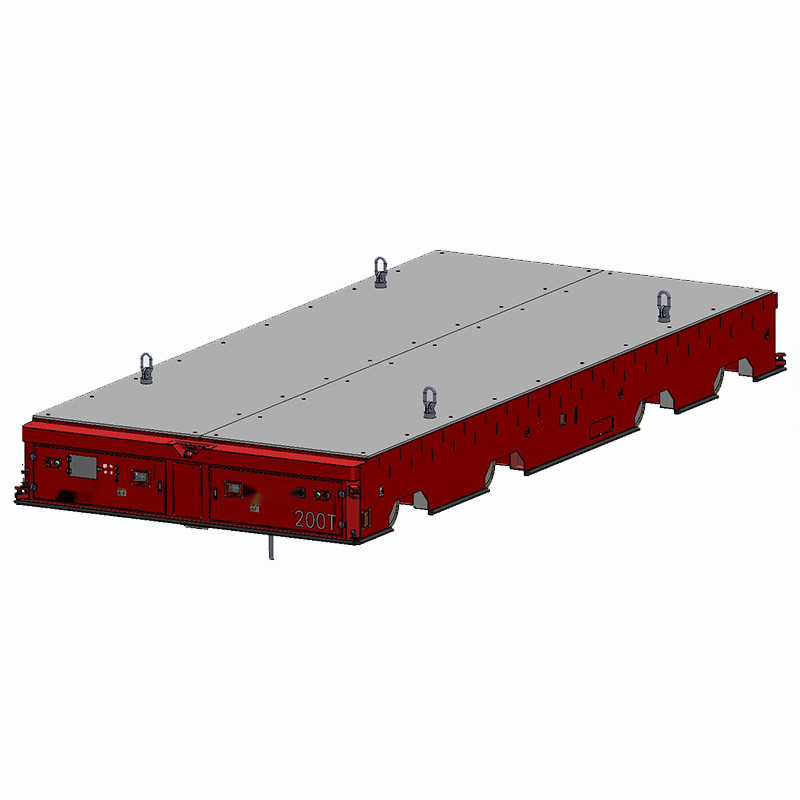

200ton-Heavy-duty-AGV-backpack-transmission-box
group nameAutomated guided vehicle
-
Min Order1 piece
modelLY-1-20 0T -816-A
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeSun, 07 Dec 2025 09:07:14 GMT
Paramtents
Rated load 200T
Quipment weight 35T
Body shape L8100 *W3500 *H870
Lifting stroke 200mm _ Climbing ability(°) ≤5°
Working environment Indoor and outdoor work
Body structure differential drive
Number of driving wheels (pair) Eight-wheel drive and sixteen wheels
Operation mode The whole vehicle can realize forward and backward
Packging & Delivery
Min Order1 piece
Briefing
200 ton Heavy-duty AGV Backpack Transmission Box - OEM/ODM solutions for wholesalers and distributors, ensuring robust performance and reliability.
Detailed
Drive motor type： Low voltage servo motor + independent servo controller
hanging form
1.Hydraulic suspension;
2.It is a passive suspension with reliable performance and even stress on multiple wheels. Walking speed 0-30 meters/min
battery form Lithium Iron Phosphate Battery , 96V/ 600 AH
Navigation Magnetic stripe navigation , inching accuracy ±3mm
control method ：wireless remote
Security
Laser obstacle avoidance sensor + contact collision avoidance + sound and light warning + emergency stop
charging method ：Manual charging
Braking distance (mm) ：Full load braking ≤500mm, no-load braking distance ≤300mm
Protection level： IP44 /IP65
