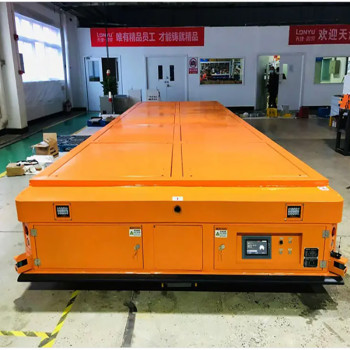

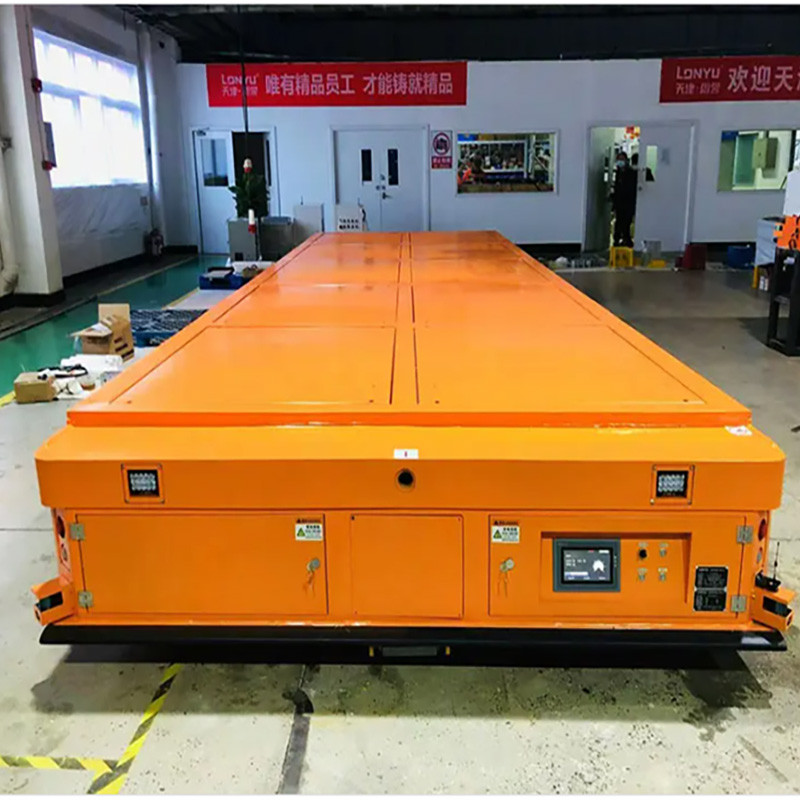

30T-Backpack-Lifting-Heavy-load-AGV
group nameAutomated guided vehicle
-
Min Order1 piece
modelModelLY-AU-40T-4-0A
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeSat, 06 Dec 2025 02:59:19 GMT
Paramtents
Load capacity 30T
Design load 40T（10-500T）customizable
Kerb weight 5T
Dimensions L5230*W1800*H550mm
Packging & Delivery
Min Order1 piece
Briefing
Intelligent remote fault diagnosis system;
The overall lifting mechanism and operation mode are flexible and stable;
Realize the mode of intelligent unmanned transportation production line;
The protection level reaches IP54;
The driving wheels with friction resistance, corrosion resistance are suitable for various harsh environments such as high temperature and humidity.（LY-AU Series ）
The overall lifting mechanism and operation mode are flexible and stable;
Realize the mode of intelligent unmanned transportation production line;
The protection level reaches IP54;
The driving wheels with friction resistance, corrosion resistance are suitable for various harsh environments such as high temperature and humidity.（LY-AU Series ）
Detailed
Technical parameters
| Load capacity | 30T |
|---|---|
| Design load | 40T（10-500T）customizable |
| Kerb weight | 5T |
| Dimensions | L5230*W1800*550mm (length, width and height) |
| Number of driving wheel | 4WD with eight-wheel |
| Navigate mode | Magnetic stripe |
| Direction | Forward and backward, move left and right, rotate |
| Control mode | Manual remote control + automatic navigation |
| Communication | Wireless LAN (optional) |
| Driving Mode | Differential drive (load-supporting) |
| Walking speed | 0-30m/min（Continuously variable speed, customized） |
| Jack-up height | 80mm-100mm±2.5mm（The lifting height is 550mm before and 650mm from the ground after lifting） |
| Jack-up speed | 10mm/s-15mm/s |
| Min. turning radius | 1.75m（When the body rotates） |
| Navigation precision | ±5mm |
| power supply mode | Lithium battery / external towing power supply / online automatic charging |
| Safety sensing range | ≤3m, Adjustable, emergency braking distance is less than 20cm at full load, less than 40cm at non-load |
| Alarm mode | Sound and light alarm prompt |
| Security | Front obstacle detection sensor + mechanical anti-collision mechanism double protection + emergency stop button |
| Design life | >ten years |
