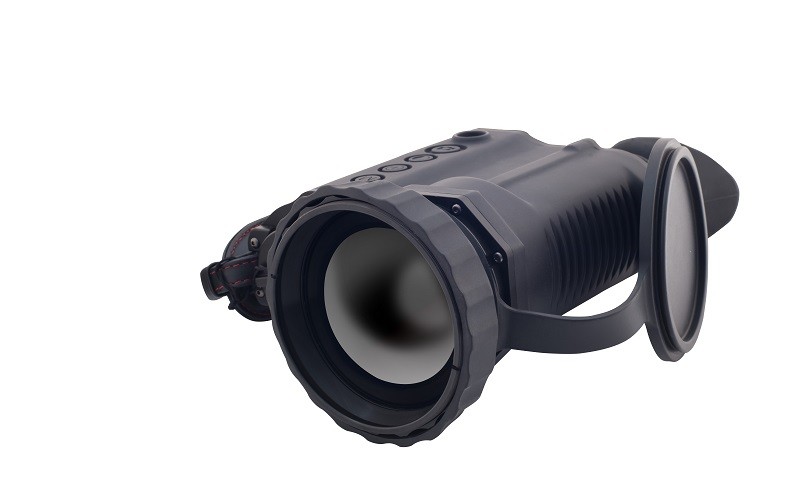

group nameHandheld Thermal Telescope
Min Order1 piece
brand nameTHERMEYE Thermal Camera Manufacturer
modelT600
update timeTue, 03 Aug 2021 11:09:36 GMT
Detector Type FPA
Resolution / Pixel Spacing 640x480/17um
NETD ≤50mk@300k
FOV 10.4°x 7.8°
Lens 60mm F#=0.8
Spatial Resolution 0.28mrad
Focus Electro-motion focusing
Zoom x2, x4
Min Order1 piece
Product Features
1. Good performance
High sensitivity thermal module with large aperture lens, offering clear image performance under even extreme weather
2. Multi-functional
Support image capture, video record and storage function
3. Pocket size
Light weight and small size, easily portable
Technical Datasheet:
Sensor Parameters | ||
Items / Specification | T300 | T600 |
Detector | Uncooled Microbolometer FPA (Amorphous Silicon) | |
Resolution / Pixel Spacing | 384x288/17μm | 640x480/17μm |
NETD | ≤50mk@300K | |
Frame Rate | 25Hz | |
Spectral Range | 8~14μm | |
Lens | 60mm F#=0.8 | |
FOV | 6.2°(H) x4.7°(V) | 10.4°(H) x7.8°(V) |
Spatial Resolution | 0.28mrad | |
Focus | Electro-motion focusing | |
Image Processing | ||
Nonuniformity calibration | No shutting technology | |
Instantaneous boot | 7s | |
Noise reduction | Digital filter | |
Image adjustment | Auto / manual | |
Zoom | x2, x4 | |
Image definition | 768x576(CCIR) | |
Polarity | White hot/Black hot | |
Image output | OLED 800x600 resolution x 2 | |
OLED display adjustment | Brightness/Contrast adjust | |
Image/video storage | ||
SD Card | 4G | |
Image format | JPEG | |
Picture storage | ≥250 | |
Video format | AVI | |
Continuous recording time | >4.5hrs | |
Power | ||
Working voltage range
| DC: +2.6V~+5.5V | |
Battery | One 26650 battery | |
Power consumption | <2.8W | |
Continuous working time | >6 hours @300K | |
Working time with continuous recording | >3.5 hours @300K | |
Reverse voltage protection | Yes | |
Over/Under-voltage Protection | Yes | |
Interface | ||
Power port | Yes | |
USB port | Yes | |
Video output | Yes (PAL) | |
Serial port | RS-232 | |
Environmental parameter | ||
Working temperature rang | -40℃~+60℃ | |
Storage temperature range | -45℃~+65℃ | |
Humidity | ≤90%RH | |
Encapsulation | IP67 | |
Physical Parameters | ||
Weight
|
≤1.2kg With batteries, No strap | ≤1.25kg With batteries ,No strap |
Dimension | 169.5mmx123.5mmx62.5mm | |
Accessories |
||
Accessories | With USB, RS232 cable | |
Batteries | 2 Wide temperature lithium batteries | |
Charger | Lithium battery charger110v~240v | |
Strap | Optional | |
Package |
Cable ABS shielded suitcase |
