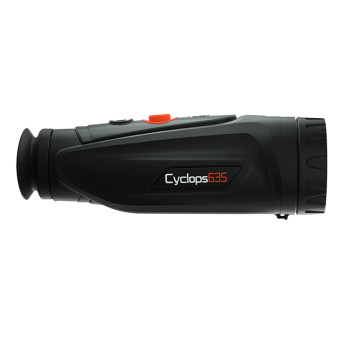

High sensitivity thermal monocular day and night used night vision monocular cyclops 635

  • group nameHandheld Thermal Telescope

  • Min Order1 piece

  • brand nameTHERMEYE Thermal Camera Manufacturer

  • modelcyclops 635

  • update timeWed, 03 Nov 2021 14:43:45 GMT

Paramtents

  • Detector Type Vox Microbolometer

  • Resolution / Pixel Spacing 640x512/12um

  • NETD ≤30mk@300k

  • FOV 12.5°x 10°

  • Diopter Control -5~+5

  • Working Temperature -20℃~+55℃

  • Size 67mm×63mm×190mm

  • Weight 550g (with battery)

Packging & Delivery

  • Min Order1 piece

Briefing

thermal monocular for hunting , zoom monocular telescope

Detailed

Cyclops 635 Product Features


1. 12μm Vox detector: Comparing with 17μm, 12μm enables a better, further view,  also provides images with more details;



2. Smooth zoom 6x


3. Perfect ergonomic design: Balance the centra of gravity, provide an easier hand-held experience;



4. 6 thermal image pallets with comfortable visual experience, to meet with variety of environment and weather;


5. IP67 Waterproof, 2m drop resistance;



6. 12H super long standby

High definition monocular telescope

* AI distance measurement: Automatically measure distance;

* Joystick: Simple to use (Joystick= 5keys: up/down/right/left/ok);

*. Two-way Wi-Fi connection: Enable to see the live views from the monocular on a smartphone by using App, also synchronizes the real-time share with another smartphone/PC via internet;
night vision monocular
AI distance measurement monocular

Technical Datasheet:

Sensor Parameters

Items / Specification
Cyclops635

Detector Type

Vox detector

Resolution / Pixel Spacing

640x512/12um

NETD

≤30mk@300k

Frame Rate

50Hz

Spectral Range

8~14μm

Lens

35mm (F#1.0, manual focus)

FOV

12.5°x 10°

Image Processing

Digital Zoom

1~6x continuous

Color Palette

5+

Noise Reduction

3D noise reduction

Image Enhancement

IDE、HDR

Display

OLED

0.39 inch,1024×768 resolution

Diopter Control

-5~+5

Eye Distance

40mm

Function

OLED

8 modes

Language

English

Reticle

6+, adjustable coordinates
Memory Card
16G

Heat Track

Yes

AI Distance Measurement

Yes
Laser Indicator
No

Photo, Record, Playback

Yes

GPS

Yes

Power

Battery Type

Internal Li-Ion Cell(18650 Li battery x 2)

Battery Life

Continuous working time≥ 12h
Interface

Type-C

Power charge, read data, output analog video

WI-FI

Two-way Wi-Fi connection, APP remote control

Environmental Parameters

Working Temperature

-20℃~+55℃

Protection Level

IP67,1 meter drop resistance

Physical Parameters

Weight

550g (with battery)

Size

67mm×63mm×190mm

Accessories

External Cable

Analog video cable, USB data cable

Other Accessory

Wrist strap, plush bag, user manual
Product Application
outdoor animal observation
