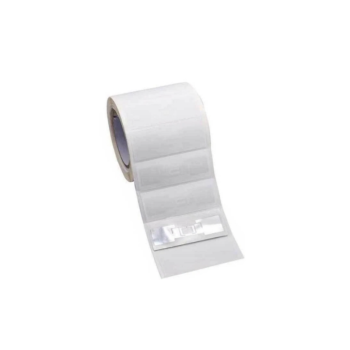

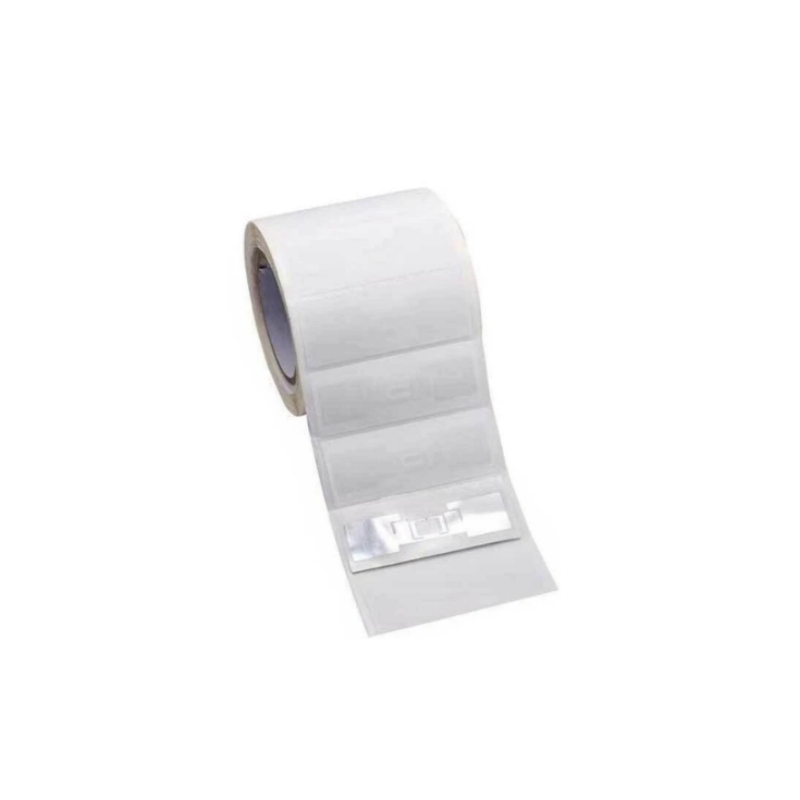

UHF RFID tags Yanzeo 860-960MHZ 9424 UHF RFID TAG Vehicle Windshield Parking Access Control

  • group nameRFID Tags

  • Min Order100 piece

  • brand nameYanzeo Pro RFID & BarCode Solutions

  • model9424

  • payment methodT/T, Paypal

  • update timeSun, 06 Sep 2026 09:33:36 GMT

Paramtents

  • Frequency: UHF 860-960MHz

  • Size: 98mm*27mm

Packging & Delivery

  • Weight0.5kg / piece

  • Min Order100 piece

Briefing

The Yanzeo 9242 UHF ultra-high frequency RFID tag is available in various materials such as waterproof PP paper, ceramics, and PET. It features high temperature resistance, waterproofing, anti-collision, anti-tampering, and corrosion resistance. The working frequency band is 860-960 MHz, and the reading distance ranges from 1 to 15 meters (affected by the reader, antenna, and the surrounding environment). It is installed by using strong adhesive tape. The storage temperature ranges from -40℃ to +120℃, and the working temperature ranges from -25℃ to +160℃. It complies with the ROHS standard and can be erased up to 100,000 times.

Detailed

Technical Parameters


ParameterSpecification
MaterialWaterproof PP paper / Ceramic / PET
FeatureHeat resistant, water‑proof, anti‑collision, tamper proof
FrequencyUHF 860‑960 MHz
Anti‑corrosionYes
Read range1‑15 m (depends on reader, antenna and working environment)
Mounting MethodStrong Adhesive
Housing MaterialPET / Coated Paper / Ceramic
Storage Temperature-40 °C ~ +120 °C
Operating Temperature-25 °C ~ +160 °C
StandardsROHS
Erase & Write Cycles100,000 times


Application Field

  1. Access and Control management
  2. Parking management
  3. Vehicle management
  4. Anti-dismantle Long range RFID UHF 915MHZ adhesive tag /lable for windshield
