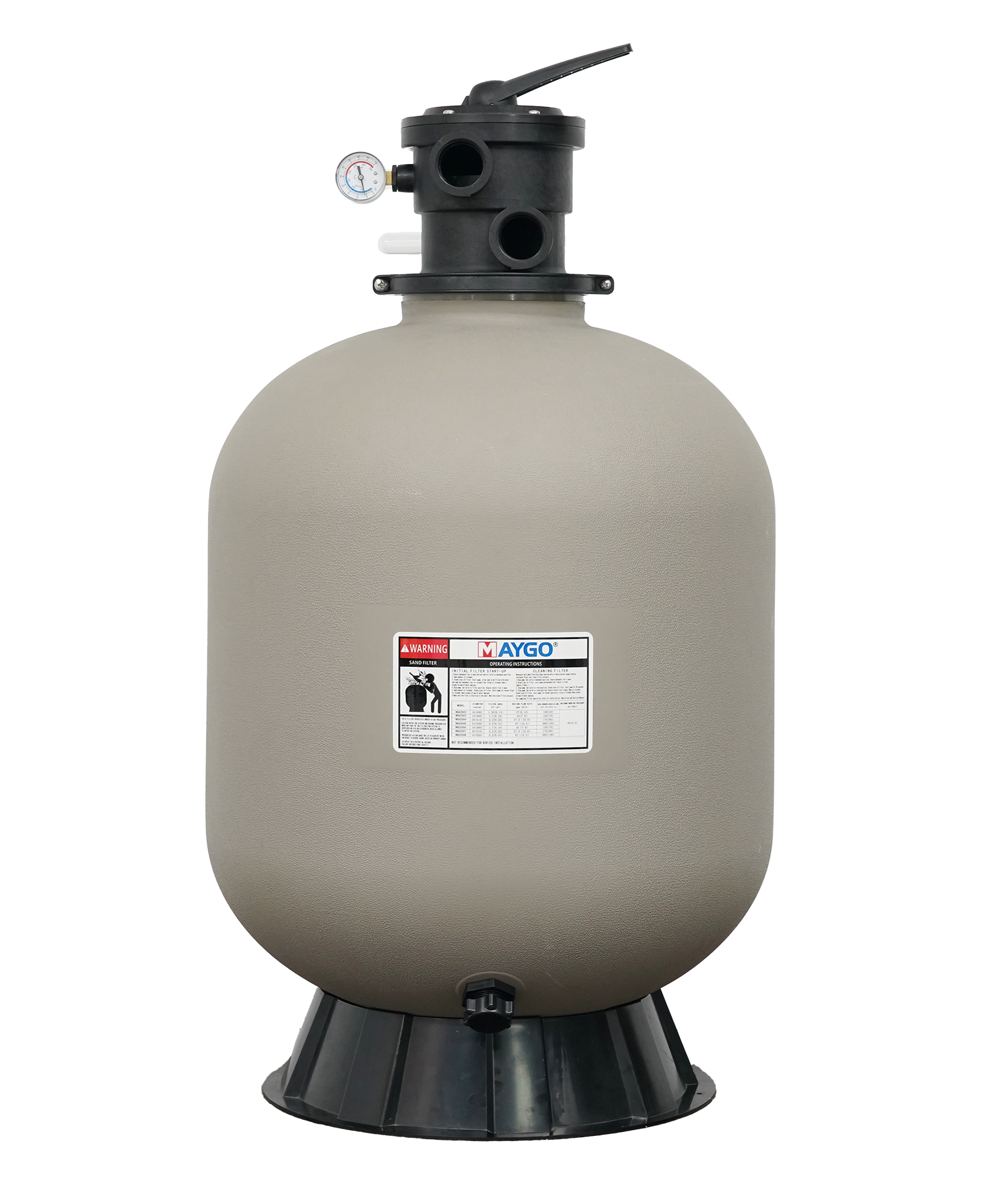

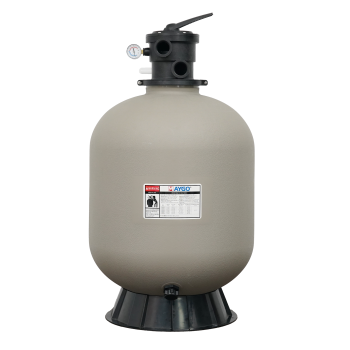

Customized 25inch Sand Filter For Above Ground Pool,Jacuzzi,Sauna,SPA | PE Plastic Sand Silica Filter
group namePE Top Mounted Sand Filters
-
Min Order1 piece
brand nameMaygo Pool Equipment Manufacturer
modelMGT25
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 30 Dec 2025 07:16:27 GMT
Paramtents
Max Working Pressure 200kpa/28psi/2.0bar
Factory Testing Pressure 300kpa/44psi/3.0bar
Max Water Temp 40℃(104℉)
Size Of Silica Sand 50m³/h/㎡
Color can be customized Yes
Filter Diameter 360-600mm
Packging & Delivery
Min Order1 piece
Briefing
Customized 25inch Sand Filter For Above Ground Pool,Jacuzzi,Sauna,SPA | PE Plastic Sand Silica Filter
Detailed
Customized 25inch Sand Filter For Above Ground Pool,Jacuzzi,Sauna,SPA | PE Plastic Sand Silica Filter
Working Condition● Max Working Pressure: 250kpa/ 35psi/ 2.5bar
● Max Hydrostatic Pressure Capacity: 46psi / 3.2bar
● Max Water Temp: 40℃(104℉)
● Size Of Silica Sand: >0.5mm
● Max Filtration Velocity: 50m³/h/㎡Color can be customized
Performance Table
| Model No. |
A | C | Filter Area(㎡) |
Valve Connections |
Max Flow Rate | Sand(KG) | ||||
| mm | in | mm | in | |||||||
| MGT16 | 400 | 16 | 665 | 26.2 | 0.13 | 1.5inch | 50mm | 105LPM | 6.3m³/h | 35 |
| MGT18 | 460 | 18 | 710 | 28.0 | 0.16 | 1.5inch | 50mm | 130LPM | 7.8m³/h | 45 |
| MGT20 | 510 | 20 | 775 | 30.5 | 0.22 | 1.5inch | 50mm | 180LPM | 10.8m³/h | 85 |
| MGT25 | 620 | 25 | 975 | 38.4 | 0.31 | 1.5inch | 50mm | 255LPM | 15.3m³/h | 145 |
| MGT28 | 710 | 28 | 950 | 37.4 | 0.40 | 1.5inch | 50mm | 333LPM | 20m³/h | 220 |
Installation Sketch
Features

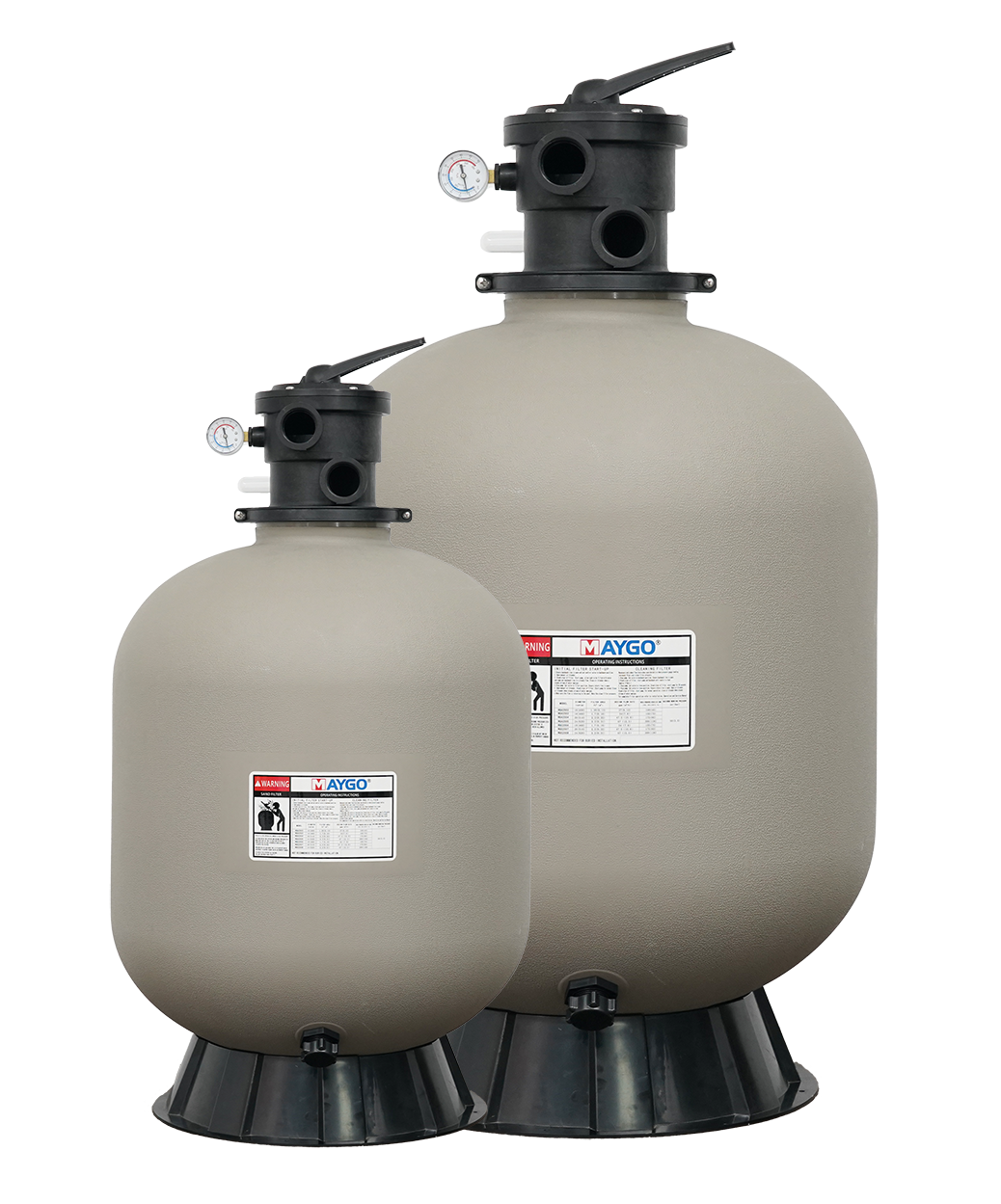

MGT Plastic Top Mounted Sand FiltersFeatures
●Transparent lid cover allows easy inspection of the sand bed
●Top diffuser ensures even distribution of water over the top of the sand bed
●Air relief enables easy release of trapped air during operation of the filter
●Easy-to-use multiport valve lets you select any of the valve/filter operation with a simple lever-action
