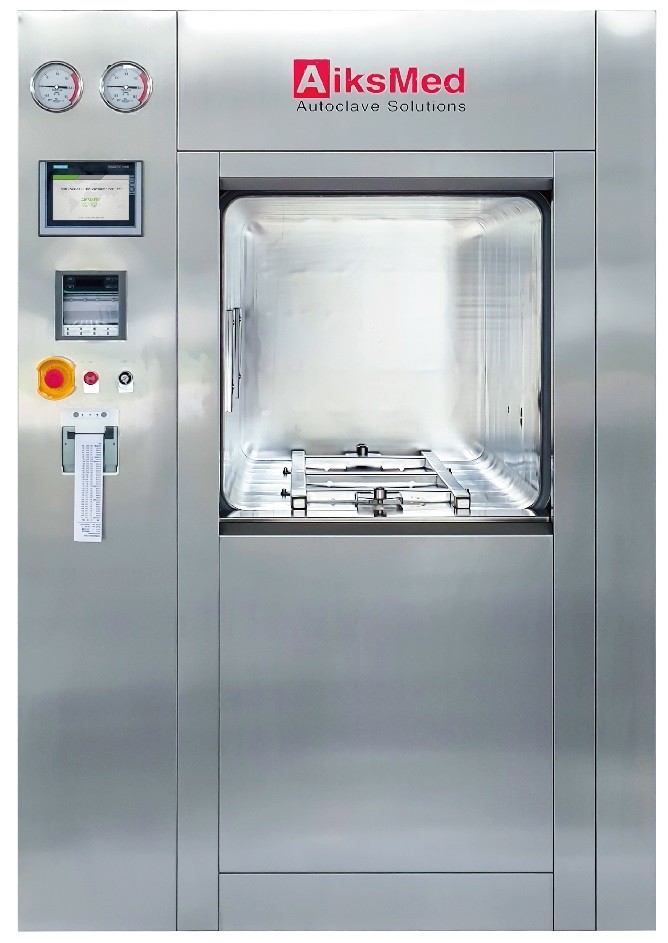

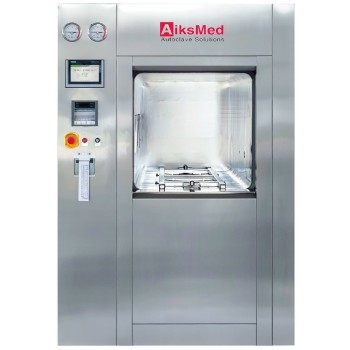

Automatic Door Steam Autoclave Machine Sterilizer for Aluminum Caps

group nameGarments and Tools Steam Autoclave
Min Order1 set
brand nameAIKSMED Steam Autoclave Sterilizer Manufacturer
modelMDH-0.36/0.45/0.55/0.65/0.8/1.0/1.2/1.5/2.6/3.2/5.2
payment methodL/C, T/T
update timeSat, 04 Apr 2026 09:36:04 GMT

contact supplier

Paramtents

Capacity 360L, 450L, 550L, 650L, 800L,1000L,1200L,1500L
Customized Available
Application Garments, Tools, Rubbers, Alu Caps, Liquids
Door Single/Double, Vertical Sliding
Control Mode Automatic & Manual
Steam Built-in Generator/Evaporator
Loading Shelve/Cart

Packging & Delivery

Size1420cm x1300cm x1940cm
Weight1080kg / set
Min Order1 set

Briefing

Pulse Vacuum Steam Sterilizer, MDH Model
MDH Series Pulse Vacuum Sterilizer employs intense heat of saturated steam to build up pressure within the chamber and so kill bacterial spores by denaturing and coagulate their cell proteins through hydrolysis, then dry the loading with heat from jacket, while vacuuming out the humidity inside chamber.

Detailed

Specification

Technical Specifications

Features

Video

Applications

1. Pharmaceutical industry, biological safety laboratory, SPF animal laboratory, Hospital CSSD.

2. Garments, tools, apparatus, rubbers, aluminum caps, liquids, culture medium, etc.

Key Configurations

Chamber: Square and horizontal, material made of SS316L/304(Optional), Jacket made of SS304, pressure vessel, designed service life: 15 years.

Door: Hinged/Sliding doors(Optional), Single/Double doors(Optional)

Vacuum Pump: NASH

Pneumatic Valve: High temperature resistant angle seat pneumatic valve

Control System: PLC+HMI(SIEMENS)

Cycle: Textile+Tools+B-D test+Vacuum Leak Test

Temperature Sensor(PT100): Poratble and Fixed type

Pressure Transmitter: JEMS

Pressure Gauge: WIKA

Printer: Print Time, Temperature, pressure, F0, Cycle name, Batch No., etc.

Steam Generator: Optional.

Specification

Door	Model	Volume (m³)	Chamber Size (LWHmm)	Overall Size (LWHmm)	Steam (KG)	CW (KG)	CA (L)	Power (KW)	N/W (KG)
Vertical Sliding Door	MDH-0.36	0.36	1000×600×600	1320×1200×1740	25	150	50	1.2	880
	MDH-0.45	0.45	1000×675×675	1360×1300×1940	30	200	50	1.6	950
	MDH-0.55	0.55	1200×675×675	1560×1300×1940	35	250	50	1.6	1000
	MDH-0.65	0.65	1500×675×675	1860×1300×1940	40	300	60	2.4	1200
	MDH-0.8	0.8	1800×675×675	2160×1300×1940	45	350	60	2.4	1400
Horizontal Sliding Door	MDH-1.0	1.0	1250×680×1180	1610×2100×2040	50	400	60	2.4	1600
	MDH-1.2	1.2	1500×680×1180	1860×2100×2040	60	500	70	3.2	1700
	MDH-1.5	1.5	1900×680×1180	2260×2100×2040	70	600	70	3.2	1850
	MDH-2.6	2.6	1700×1000×1550	2060×2600×2100	90	1000	80	4.2	2700
	MDH-3.2	3.2	2100×1000×1550	2460×2600×2100	110	1200	90	5.7	3200
	MDH-5.2	5.2	3340×1000×1550	3700×2600×2100	150	1800	100	7.7	4500

Techinical Parameters

Design pressure	-0.1/0.3MPa
Working pressure	0.27MPa
Desing temperature	144℃
Working temperature	137℃
Max. vacuum	-0.096MPa
Thermal Uniformity	≤1℃
Steam pressure	0.3~0.5MPa
Water pressure	0.15~0.3MPa
Compressed air pressure	0.5~0.7MPa

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams for LAYOUT and P&ID are available upon inquiry.

Our engineering team can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 12 months after SAT, or 18 months after shipment (whichever comes first).

Extended Warranty: Optional coverage up to 24 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.

Company Profile

Jiangsu AiksMed Autoclave Equipment Co., Ltd.

Jiangsu AiksMed Equipment Co., Ltd. is a leading Chinese manufacturer of steam sterilizer,autoclave equipment,laboratory device with over 20 years of expertise. Certified with ISO 9001, CE, and we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
