8inch to 24inch Steel Pipes for Max 10mm Automatic Roll Grooving Machine Roll Groover AG-4X
group nameElectric Hydraulic Roll Groover
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelAG-4X
payment methodT/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
-
update timeFri, 05 Dec 2025 17:15:53 GMT
Paramtents
Grooving Capacity 8"-24"
Max Wall Thickness 16mm
Power Supply 2200W-3PH
Output Speed 23RPM
Packging & Delivery
Min Order1 piece
Briefing
The semi-automatic steel pipe grooving machine is designed for efficiently creating grooves on steel pipes, primarily used in piping systems such as fire protection, plumbing, and HVAC.
Detailed
8"-24" Automatic hydraulic pipe groove machine
Below are its main functions and features:
Key Functions:
1. Groove Formation: Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.
2. Compatibility: Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.
3. Semi-Automatic Operation: Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.
Features:
1. Robust Construction: Built with durable materials to withstand high-intensity operations and ensure a long service life.
2. High Efficiency: Semi-automatic operation speeds up the grooving process while maintaining accuracy.
3. User-Friendly Design: Simple controls and an ergonomic structure make the machine easy to operate, even for users with minimal training.
4. Adjustable Settings: Equipped with adjustable rollers and blades to accommodate different pipe specifications.
5. Compact and Portable: The machine's compact design ensures easy transport and storage, ideal for on-site applications.
This machine is a cost-effective solution for professionals seeking reliable and efficient grooving for steel pipe installations.
scope
|
model
|
AG-4X
|
|
Applicable materials
|
Carbon steel, stainless steel
|
|
capacity
|
Suitable for 8"-24" steel pipe
|
|
power supply
|
380V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 16mm |
Motor Power | 2200W |
Output speed | 23 rpm |
Packaging gross weight | 550kg |
Package Size | 125*110*160cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
999020
|
three phase
|
2200W
|
380V, 50/60HZ
|
Standard Parts
|
Item Number
|
describe
|
net weight
|
|
|
911087
|
Drive roller 8"~12" (φ219~Φ325)
|
3.5kg
|
|
|
911088
|
Driving roller 14"~16" ((Φ355~Φ426)
|
3.5kg
|
|
|
911089
|
Drive roller 18"~24" (Φ457~Φ630)
|
3.5kg
|
|
912029 | Groove roller 8"~12" ( Φ219~Φ325) | 1.4kg | |
912030 | Groove roller 14"~16" (Φ355~Φ426) | 1.4kg | |
912031 | Groove roller 18"~24" (Φ457~Φ630) | 1.4kg | |
998038 | Pipe stand for 8"~24" (Φ219~Φ630) | 33.0kg | |
Optional Parts
|
Item Number
|
describe
|
net weight
|
|
|
911099
|
AGS Groove roller 14"~24" (Φ355~Φ630)
|
3.5kg
|
|
|
912034
|
AGS Drive roller 14"~24" (Φ355~Φ630)
|
2.0kg
|
|
Product details picture

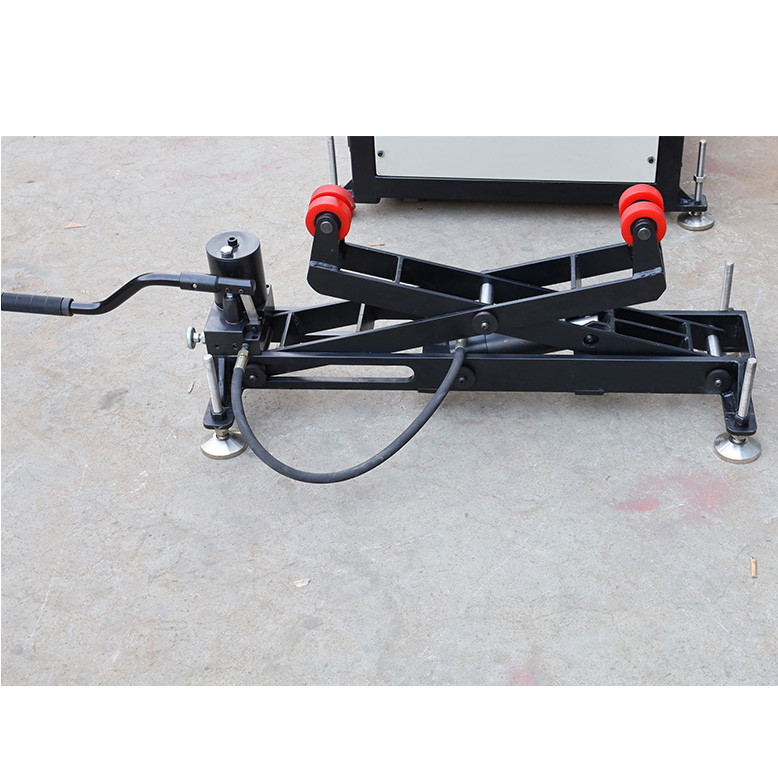

pipe stand
Suitable for 8"-24" steel pipe
drive roller
A set of 8"~12" (Φ219~Φ325)
A set of 14"~16" (Φ355~Φ426)
A set of 18"~24" (Φ457~Φ630)
groove roller
A set of 8"~12" (Φ219~Φ325)
A set of 14"~16" (Φ355~Φ426)
A set of 18"~24" (Φ457~Φ630)
