Hydraulic HDPE Pipe Fusion Welding Machine 1800mm
group nameHydraulic Butt Fusion Machines
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelWP1600A
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 22:10:07 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type Plastic pipe welding machines manufacturer
Packging & Delivery
Min Order1 piece
Briefing
It is a versatile machine designed for butt fusion of 1200mm to 1800mm pipe and fittings, with durability and reliability.
Detailed
1800mm Hydraulic Butt Fusion Welding Machine for PE Pipes
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.
The 1800mm butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
The Butt Fusion Machine is designed to butt fuse pipe sizes 1200mm to 1800mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
Fusion with Excellence
※ Special designed
※ Built for heavy-duty welding
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Heating Plate
|
1 Set
|
|
Trimmer
|
1 Set
|
|
Reducers
|
1 Set
|
Tool Box | 1 Set |
PARAMETER
|
Mode
|
WP1800A
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
|
Range
|
Standard 1200-1800mm
|
|
Power supply
|
380V/50Hz 3PH
|
Rated power (kw) | 78 |
Heater | 65 |
Facer | 7.5 |
Hydraulic station | 5.5 |
Pressure | 0-16Mpa |
Working Temp. | 170-250℃ |
Temp. deviation | ±10℃ |
Piston area (cm2) | 100.48 |
Hydraulic oil | 46# |
Viscosity | 41.4 - 50.6 cSt |
PRODUCT DETAILS MAP
Frame(Carriage)
· Complete steel welded design, with complex reinforced structure, heavy-duty
· Featuring a 3+1 detachable frame structure, the WP1800A offers flexible configuration for pipe fittings as well as easy transportation
· Clamping part with inner anti-slip teeth Independent hydraulic cylinders provide 008 reliable performance and easy maintenance
Hydraulic station
· Integrated hydraulic and electrical control, for easy operation access
· Compact and Enclosure design, shielding splash and dirt
· Equipped with branded electronic parts WELPING to ensure long-term stable operation Welding &Piping
· Standard data logger available to support efficient welding operations

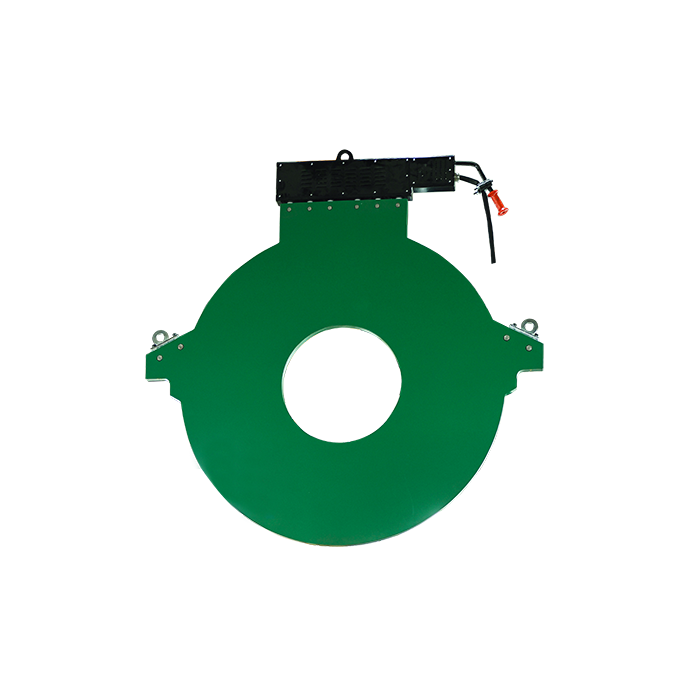

Heating plate
· Thickened cast aluminum body with well-structured internal heating elements, ensuring fast heat-up and excellent temperature deviation control within ±10°℃
· Non-stick PTFE coating supplied by Daikin provides excellent resistance to sticking
· A specialized coating process ensures long-lasting adhesion without peeling
Facer (Milling Cutter)
· Thickened milling cutter plates, solid and reliable
· Dual-blade, HSS material, ensures precise cutting and high efficiency
· Equipped with an internal dual-chain drive system and auto-tensioning mechanism, for heavy-duty applications and long-term
usage without loosening
Wide reducers
· Laser-cut, precision-welded clamp inserts for a perfect fit and stable grip
· Multiple anti-slip ridges inside the clamp inserts to enhance pipe gripping force
· 4-piece widened design ensures both easy installation/removal and reliable clamping performance
Hydrauli Crane (optional)
· Custom-built hydraulic lifting arm designed for efficient handling of the facer and heating plate
· Space-saving multi-section telescopic design for compact storage and extended reach
· The base is integrated with the main frame to ensure stability during operation
