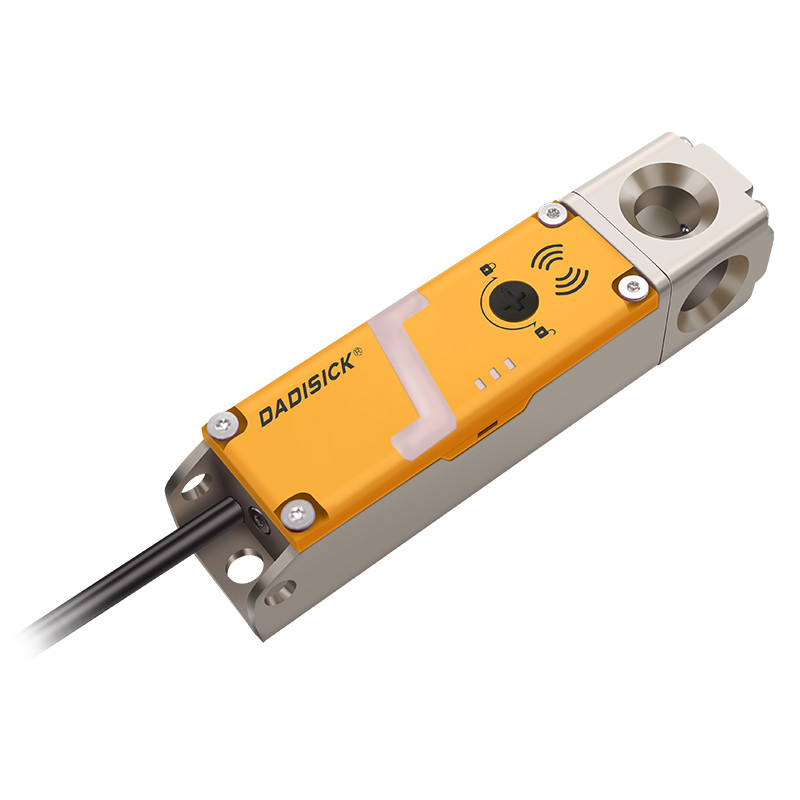

DK-OX-D6｜The Safety Switch Devices with Locking Function｜DADISICK

Categories

Machinery / Mechanical Parts

Machinery
|Cleaning Equipment
|Construction Machinery Parts
|Electronic Products Machinery
|Packaging Forming Machine
|Packaging Machinery
|Printing Machinery
Mining Machinery
|Crusher
|Mine Drilling Rig
|Mining Machinery Parts
|Vibrating Screen
Food & Beverage Machinery
|Food Processing Machinery Parts
|Fruit & Vegetable Processing Machines
|Meat Product Making Machines
|Snack Machines
Packaging Machine
|Filling Machines
|Multi-Function Packaging Machines
|Packaging Line
|Sealing Machines
|Wrapping Machines
Printing Machine
|Digital Printers
|Inkjet Printers
|Printing Machinery Parts
|Screen Printers
Mechanical Parts & Fabrication Services
|Butterfly Valves
|Flanges
|Gaskets
|General Mechanical Components Design Services
|General Mechanical Components Stock
|Moulds
|Pipe Fittings
|Seals
|Shafts
|Solenoid Valves
|Valves
Chemicals / Minerals & Metallurgy

Chemicals
|Adhesives & Sealants
|Chemical Reagents
|Daily Chemicals
|Flavour & Fragrance
|Pharmaceutical
|Polymer
Basic Organic Chemicals
|Alcohol & Hydroxybenzene & Ether
|Amine
|Hydrocarbon & Derivatives
|Organic Acid
Chemical Auxiliary Agent
|Coating Auxiliary Agents
|Plastic Auxiliary Agents
|Rubber Auxiliary Agents
|Surfactants
|Water Treatment Chemicals
Minerals & Metallurgy
|Carbon
|Cast & Forged
|Cemented Carbide
|Ceramics
|Glass
|Magnetic Materials
|Refractory
Ceramic Fiber Products
|Ceramic Fiber Blankets
|Ceramic Fiber Boards
|Ceramic Fiber Cloth
|Ceramic Fiber Paper
|Ceramic Fiber Rope
Graphite Products
|Graphite Crucible
|Graphite Electrodes
|Graphite Powder
|Graphite Sheets
Steel
|Steel Coils
|Steel Pipes
|Steel Plates
|Steel Rebars
|Steel Round Bars
|Steel Sheets
|Steel Strips
|Steel Structures
|Steel Wire
Steel Profiles
|Flat Steel
|Steel Angles
|Steel Channels
|Steel H-Beams
|Steel I-Beams
Construction / Home & Garden

Construction & Real Estate
|Aluminum Composite Panels
|Balustrades & Handrails
|Building Glass
|Countertops,Vanity Tops & Table Tops
|Floor Heating Systems & Parts
|HVAC Systems & Parts
|Metal Building Materials
|Mouldings
|Multifunctional Materials
Bathroom
|Bathroom Sinks
|Bathroom Vanities
|Bathtubs & Whirlpools
|Toilets
Bathroom Accessories
|Bathroom Shelves
|Paper Holders
|Towel Bars
|Towel Racks
Bathroom Products
|Bath Brushes, Sponges & Scrubbers
|Bath Mats
|Bathroom Sets
|Shower Curtains
Cooking Tools
|Coffee & Tea Tools
|Colanders & Strainers
|Cooking Tool Sets
|Egg Tools
|Fruit & Vegetable Tools
|Ice Cream Tools
|Openers
|Utensils
Home Storage & Organization
|Hooks & Rails
|Storage Bags
|Storage Baskets
|Storage Bottles & Jars
|Storage Boxes & Bins
|Storage Holders & Racks
|Storage Trays
Household Cleaning Tools & Accessories
|Cleaning Brushes
|Cleaning Cloths
|Sponges & Scouring Pads
|Waste Bins
Pet Products
|Pet Apparel & Accessories
|Pet Bowls & Feeders
|Pet Cages, Carriers & Houses
|Pet Cleaning & Grooming Products
|Pet Collars & Leashes
Drinkware
|Coffee & Tea Sets
|Cups & Saucers
|Mugs
|Water Bottles
Automobiles / Consumer Electronics

Automobiles & Motorcycles
|ATV
|Brake System
|Exhaust System
|Fuel System
|Motorcycles
|Suspension System
|Tricycles
Accessories & Parts
|Adapters
|Charger
|Earphone & Headphone
|Power Banks
Mobile Phone Accessories
|Mobile Phone Holders
|Mobile Phone Housings
|Mobile Phone LCDs
|Mobile Phone Straps
Packaging & Printing / Electrical Equipment

Packaging & Printing
|Adhesive Tape
|Bottles
|Cans
|Handles
|Lids, Bottle Caps, Closures
|Packaging Bags
|Packaging Boxes
|Packaging Labels
|Plastic Film
Electrical Equipment & Supplies
|Circuit Breakers
|Contactors
|Electrical Plugs & Sockets
|Electronic & Instrument Enclosures
|Power Distribution Equipment
|Professional Audio, Video & Lighting
|Relays
|Transformers
Wires, Cables & Cable Assemblies
|Electrical Wires
|Power Cables
|Power Cords & Extension Cords
|Wiring Harness
Health & Medical / Rubber & Plastics

Medical Devices
|Clinical Analytical Instruments
|Equipments of Traditional Chinese Medicine
|Medical Consumables
|Physical Therapy Equipments
|Ward Nursing Equipments
Plastic Products
|Automotive Plastic Products
|Plastic Nets
|Plastic Rods
|Plastic Sheets
|Plastic Tubes
Rubber Products
|Automotive Rubber
|Household Rubber
|Rubber Belts
|Rubber Hoses
|Rubber Sheets
Lights / Electronic Components

LED Residential Lighting
|LED Bulb Lights
|LED Ceiling Lights
|LED Downlights
|LED High Bay Lights
|LED Panel Lights
|LED Spotlights
|LED Track Lights
|LED Tube Lights
Hardware / Gifts & Crafts

Hardware
|Abrasive Tools
|Abrasives
|Brackets
|Chains
|Clamps
|Hardware Stock
|Hooks
|Mould Design & Processing Services
|Springs
Fasteners
|Bolts
|Nails
|Nuts
|Screws
Gifts & Crafts
|Antique Imitation Crafts
|Art & Collectible
|Artificial Crafts
|Flags, Banners & Accessories
|Folk Crafts
|Gift Sets
|Glass Crafts
|Key Chains
|Lanyard
|Metal Crafts
|Money Boxes
|Paper Crafts
|Plastic Crafts
|Resin Crafts
|Souvenirs
|Stickers
|Wood Crafts
Festive & Party Supplies
|Event & Party Decorations
|Christmas Decoration Supplies
|Decorative Flowers & Wreaths
|Event & Party Supplies
Security & Protection / Beauty

Beauty Equipment
|Derma Rolling System
|IPL Machine
|Laser Beauty Equipment
|Multi-Functional Beauty Equipment
|RF Equipment
Hair Salon Equipment
|Comb
|Hair Curler
|Hair Dryer
|Hair Straightener
Measurement / Apparel

Measurement & Analysis Instruments
|Counters
|Instrument Parts & Accessories
|Level Measuring Instruments
|Temperature Instruments
|Testing Equipment
|Weighing Scales
Apparel
|Coats
|Hoodies & Sweatshirts
|Jackets
|Ladies' Blouses & Tops
|Pants & Trousers
|Sweaters
|Tank Tops
|Vests & Waistcoats
|Workwear
Textiles & Leather Products / Furniture

Home Textile
|Blanket
|Cushion
|Mat
|Pillow
|Table Cloth
|Towel
Living Room Furniture
|Coffee Tables
|Living Room Cabinets
|Living Room Chairs
|Living Room Sofas
Outdoor Furniture
|Garden Chairs
|Garden Sets
|Garden Sofas
|Hammocks
|Patio Swings
|Patio Umbrellas & Bases
View more

Products

Safety Switch Electrical Parameters
Control output (OSSD output)	Output type	Transistor output x2
	Maximum load current	≤200mA
	Residual voltage (ON)	<2.5V@200mA
	Voltage when OFF	≤2V@cable 5m
	Leakage current	≤0.5mA
	Maximum load capacity	2.2uF
	Load connection resistance	≤2.5Ω
AUX output (non-safety output)	Output type	Transistor output
	Number of outputs	1
	Maximum load current	50mA
	Residual voltage (when ON)	≤2.5V@50mA
External input (break current)	Safety input	1.5mA*2
	Reset/EDM input	About 10mA*1
	Lock control input	About 10mA*1
Power supply	Operating voltage	DC24V±15%
	Rated power	4.6W (no load)

Mechanical Parameters
Dimensions (whl)	3050125mm
Lock method	Mechanical lock/electromagnetic lock
Safety output	NPN2/PNP2
Response time	100ms (independent work)
Lock holding force Fzh	≥2000N
Lock bolt insertion deviation	≤2mm
Mechanical durability	>1 million times (door operation speed 1m/s)
Operation frequency	1Hz
Minimum radius of revolving door	≥220mm
Manual unlocking	front, back
Material	Nylon/zinc alloy/stainless steel

Environmental data
Ambient temperature	-20°C~55°C (no freezing)
Environment humidity	5%~95%RH

Locking method	Conǁguration type	Encoding type	Output method	Lead method	Model
Mechanical lock	Standard type	Universal code	NPN	Direct outlet	DK-OX-D6-CR-SN-A
				M12 connector	DK-OX-D6-CR-SN-B
			PNP	Direct outlet	DK-OX-D6-CR-SP-A
				M12 connector	DK-OX-D6-CR-SP-B
		Unique code	NPN	Direct outlet	DK-OX-D6-CR-DN-A
				M12 connector	DK-OX-D6-CR-DN-B
			PNP	Direct outlet	DK-OX-D6-CR-DP-A
				M12 connector	DK-OX-D6-CR-DP-B
	High-function type	Universal code	NPN	Direct outlet	DK-OX-D6-CH-SN-A
				M12 connector	DK-OX-D6-CH-SN-B
			PNP	Direct outlet	DK-OX-D6-CH-SP-A
				M12 connector	DK-OX-D6-CH-SP-B
		Unique code	NPN	Direct outlet	DK-OX-D6-CH-DN-A
				M12 connector	DK-OX-D6-CH-DN-B
			PNP	Direct outlet	DK-OX-D6-CH-DP-A
				M12 connector	DK-OX-D6-CH-DP-B
Electromagnetic lock	Standard type	Universal code	NPN	Direct outlet	DK-OX-D6-DR-SN-A
				M12 connector	DK-OX-D6-DR-SN-B
			PNP	Direct outlet	DK-OX-D6-DR-SP-A
				M12 connector	DK-OX-D6-DR-SP-B
		Unique code	NPN	Direct outlet	DK-OX-D6-DR-DN-A
				M12 connector	DK-OX-D6-DR-DN-B
			PNP	Direct outlet	DK-OX-D6-DR-DP-A
				M12 connector	DK-OX-D6-DR-DP-B
	High-function type	Universal code	NPN	Direct outlet	DK-OX-D6-DH-SN-A
				M12 connector	DK-OX-D6-DH-SN-B
			PNP	Direct outlet	DK-OX-D6-DH-SP-A
				M12 connector	DK-OX-D6-DH-SP-B
		Unique code	NPN	Direct outlet	DK-OX-D6-DH-DN-A
				M12 connector	DK-OX-D6-DH-DN-B
			PNP	Direct outlet	DK-OX-D6-DH-DP-A
				M12 connector	DK-OX-D6-DH-DP-B
Note: the default cable is 3m. If you need other lengths, please contact customer service.
