Aluminum Wall Panel Joint Trim
group namePanel Profile
-
Min Order500 piece
brand nameDYM Tile Trim Manufacturer
modelDYM-P-003
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeWed, 09 Sep 2026 23:08:46 GMT
Paramtents
Product Type Wall Panel H Joint Profile
Length 2.5m/ 2.7m or Customized

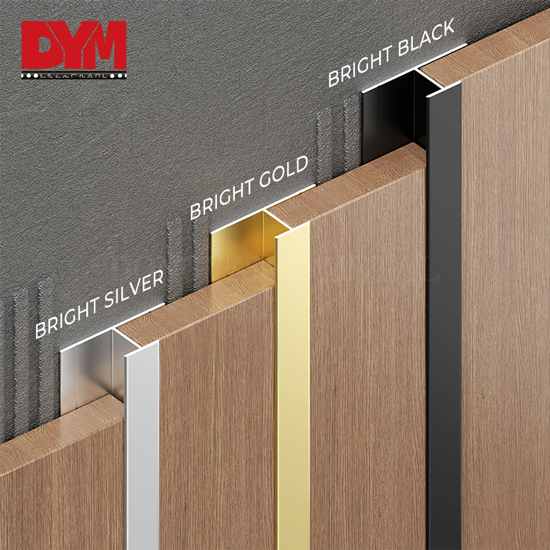

Colors Silver, Matte Black, Champagne Gold, Custom RAL
Finish Anodized / Powder Coated / Brushed
Material Aluminum Alloy 6063-T5
Application Fully encases the cut edges of the panels
Thickness 0.8mm – 2.0mm (customizable)
Surface treatment Anodized / Brushed / Matte / Polished
OEM&ODM CAD Drawing / Color / Punching / Packaging
Packging & Delivery
Min Order500 piece
Briefing
Aluminum wall panel joint trim for clean panel-to-panel connections and edge finishing. 6063-T5 aluminum, custom sizes, colors and finishes for PVC, WPC and decorative wall panels.
Detailed
DYM - Aluminum Wall Panel Joining Trim
Product Overview

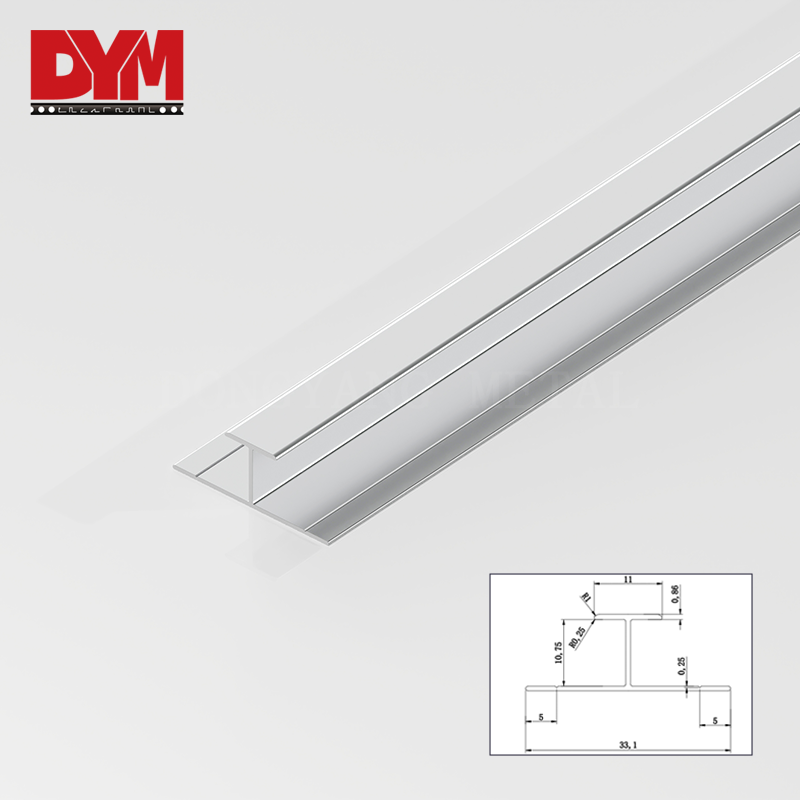

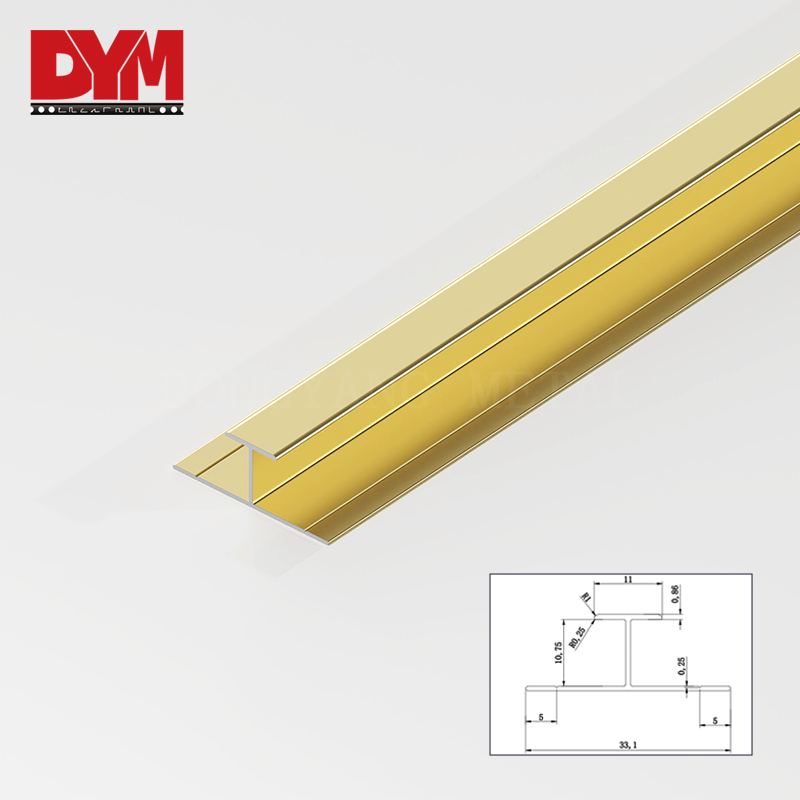

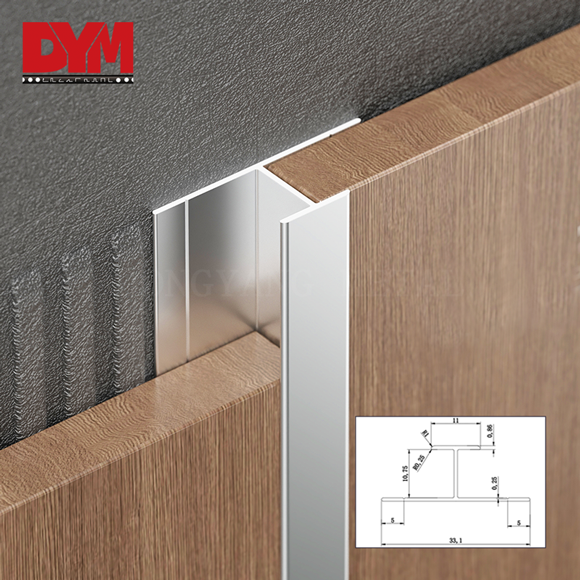

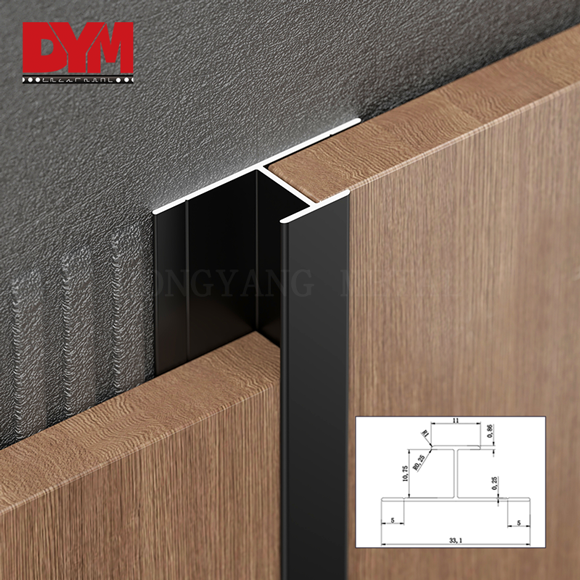

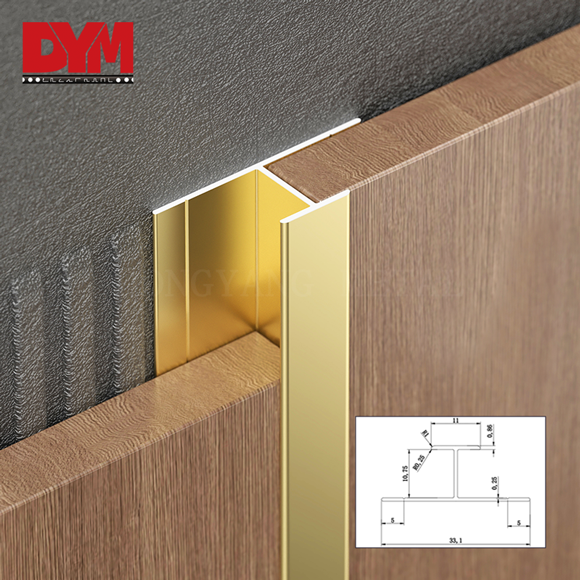

The Aluminum Wall Panel Joint Trim is an H-shaped aluminum extrusion profile designed to create a clean, consistent joint between two adjacent wall panels. The dual-channel structure receives the edges of adjoining panels, helping cover exposed cuts, maintain a uniform joint line, and create a precise transition across the wall surface.
· Panel-to-panel joining — provides a defined connection between adjacent wall panels.
· Exposed edge finishing — covers the cut edges of both panels at the joint.
· Joint alignment — helps maintain a consistent relationship between adjoining panels.
· Controlled joint width — creates a repeatable visible line across the wall surface.
· Architectural detailing — turns the panel joint into a precise and coordinated design element.
Specifications
Manufactured from 6063-T5 aluminum alloy, this wall panel joint trim is suitable for PVC, WPC, SPC, fluted and other decorative wall panel systems. The profile can be customized in dimensions, length, color and surface finish to match different panel thicknesses and architectural requirements. The H-shaped wall panel joint trim can be produced according to different panel constructions and installation requirements.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |

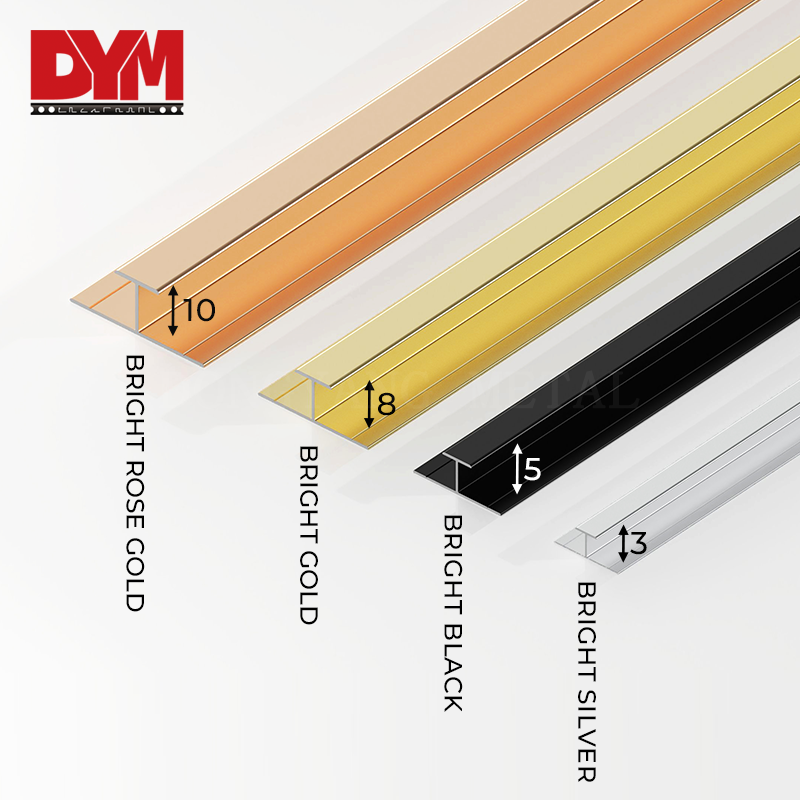

MM |
6
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |
Color Options or Customized
Different wall panel manufacturers may use different panel thicknesses, edge structures and joining methods. A universal H profile may therefore not provide the required fit.
We support custom aluminum extrusion for wall panel joint profiles based on CAD drawings, technical specifications or physical samples.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.
Installation Guide
Step 1: Measure the actual wall panel thickness and joint position.
Step 2: Cut the H profile to the required installation length.
Step 3: Prepare the panel edges and ensure they are straight and free from debris.
Step 4: Position the H profile at the designed panel joint.
Step 5: Insert the adjoining wall panels into the two receiving sections of the profile.
Step 6: Check panel alignment and ensure the joint remains straight and consistent.
Applications of Wall Panel Inside Corner Trim
PVC Wall Panels: Used to create a defined and finished joint between adjacent PVC wall panels while covering their exposed edges.
WPC Wall Panels: Suitable for WPC decorative wall systems where a durable aluminum joint line is required between panel sections.
SPC Wall Panels: Can be customized according to SPC panel thickness and edge construction.
Fluted Wall Panels: Provides a controlled transition between adjacent fluted or slatted wall panels while introducing a precise aluminum joint.
