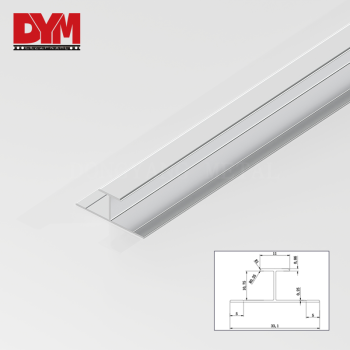

H Profile Wall Panel Trim
group namePanel Profile
-
Min Order500 piece
brand nameDYM Tile Trim Manufacturer
modelDYM-P-003
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeThu, 10 Sep 2026 00:35:45 GMT
Paramtents
Product Type Wall Panel Joining Profile（H Shape）
Length 2.5m/ 2.7m or Customized
Colors Silver, Matte Black, Champagne Gold, Custom RAL
Finish Anodized / Powder Coated / Brushed
Material Aluminum Alloy 6063-T5
Application Fully encases the cut edges of the panels
Thickness 0.8mm – 2.0mm (customizable)
Surface treatment Anodized / Brushed / Matte / Polished
OEM&ODM CAD Drawing / Color / Punching / Packaging
Packging & Delivery
Min Order500 piece
Briefing
H profile wall panel trim for clean panel-to-panel joining and joint finishing. 6063-T5 aluminum, custom sizes, colors and finishes for PVC, WPC and decorative wall panels.
Detailed
DYM - h Profile Wall Panel Trim
Product Overview

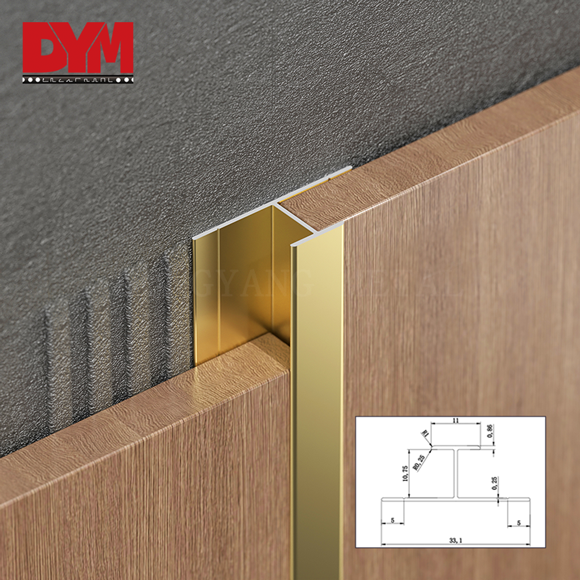

An aluminum wall panel joint trim is used where two separate wall panels meet along a straight joint. Unlike an exposed panel-to-panel connection, the H-shaped profile creates a defined interface between the adjoining panels while enclosing their cut edges.
The profile consists of two receiving sections that accommodate the edges of the adjacent panels. This structure allows the joint to remain visually consistent while providing a controlled transition between panel sections.
For large-format wall installations, this makes the H profile an important component of a complete aluminum wall panel profile system.
Specifications
Manufactured from 6063-T5 aluminum alloy, the profile combines dimensional stability, corrosion resistance and suitability for architectural finishing applications. It can be used with PVC, WPC, SPC, fluted and other decorative wall panels in residential, commercial and hospitality projects.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |
MM |
5
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |
Color Options or Customized
For wholesalers, distributors, contractors and wall panel manufacturers, the profile can be supplied with customized dimensions, lengths, colors and surface finishes to match different panel systems and project requirements.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.
Installation Guide
Install the H profile at the planned panel joint and position the adjacent wall panels into the two receiving channels. Ensure both panels are properly aligned before fixing them according to the selected wall panel installation system. For project-specific applications, profile dimensions should be matched to the actual panel thickness and installation structure.
Applications of Wall Panel Inside Corner Trim
The H profile provides a defined connection between two wall panels without leaving exposed cut edges at the joint. The two-sided channel structure helps position adjoining panels consistently and creates a uniform architectural joint.
It is particularly suitable when the wall panel system requires a straight, controlled and visually consistent panel-to-panel connection.
