Wall Panel Slot Joining Profile
group namePanel Profile
-
Min Order500 piece
brand nameDYM Tile Trim Manufacturer
modelDYM-P-136
payment methodL/C, D/A, D/P, Western Union, T/T
-
update timeThu, 10 Sep 2026 00:36:06 GMT
Paramtents
Profile Structure Slot / Channel / H-Shaped
Length 2.5m/ 2.7m or Customized
Colors Silver, Matte Black, Champagne Gold, Custom RAL
Finish Anodized / Powder Coated / Brushed
Material Aluminum Alloy 6063-T5
Suitable Panels PVC, WPC, SPC, Fluted & Decorative Wall Panels
Thickness 0.8mm – 2.0mm (customizable)
Surface treatment Anodized / Brushed / Matte / Polished
OEM&ODM Custom Profile / Size / Finish / Packaging
Packging & Delivery
Min Order500 piece
Briefing
Wall panel slot joining profile for secure panel-to-panel connection and clean joint finishing. 6063-T5 aluminum with custom sizes, colors and finishes for PVC, WPC and decorative wall panels.
Detailed
DYM - Wall Panel Slot Joining Profile
Product Overview

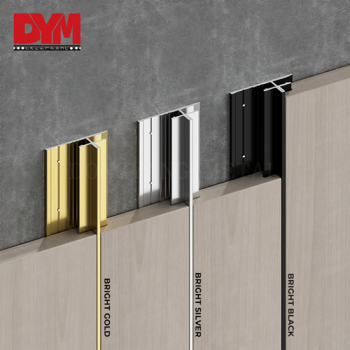

Wall panel slot joining profile is an aluminum extrusion designed to connect two adjacent wall panels through a dedicated slot or channel structure. The panel edges are inserted into the profile channels, creating a defined and consistent connection between adjoining panels while concealing the exposed panel edges at the joint.
Manufactured from 6063-T5 aluminum alloy, the profile provides a lightweight and dimensionally consistent solution for interior wall panel systems. Its slot-type construction can be customized according to the actual panel thickness, edge structure and required joint configuration. The slot structure allows the edges of two wall panels to be positioned within the profile, forming a controlled connection between adjacent panels.
Specifications
Slot-type aluminum joining profile for connecting adjacent wall panels through integrated receiving channels. Custom profile dimensions, lengths, colors and finishes are available for different wall panel systems.
CODE |
DYM-C-001
|
DYM-C-002
|
DYM-C-003
|
DYM-C-004 | DYM-C-005 |
MM |
5
|
8
|
10
|
12 | 15 |
G |
0.121
|
0.123
|
0.126
|
0.129 | 0.134 |
Color Options or Customized
The aluminum wall panel joining profile can be supplied with different surface treatments to coordinate with the wall panel material and overall interior design. Silver, black, gold and champagne are available for common architectural applications, while customized colors can be developed for branded wall panel systems and project specifications.
Matte Finish
Offers a low-reflective surface, ideal for a modern and minimalist look.
Polish Bright
Features a high-gloss surface, enhancing visual brightness and texture.
Brushed
Provides a fine-textured effect, adding tactile and visual depth.
Coating Texture
Available in various colors and textures to suit different design requirements.
Installation Guide
Position the slot joining profile at the planned panel joint and insert the edges of the two adjoining wall panels into the corresponding receiving channels. Check panel alignment and joint consistency before completing the final fixing of the wall panel system.
The slot width and depth should be matched to the actual panel thickness and edge structure to ensure proper installation.
Applications of Wall Panel Inside Corner Trim
The profile is suitable for PVC, WPC, SPC, fluted and decorative wall panels, making it a practical joining component for wall panel manufacturers, distributors, contractors and architectural project procurement. The slot structure allows the edges of two wall panels to be positioned within the profile, forming a controlled connection between adjacent panels.
