Wholesale Disc Diffuser AS-DD350 | 12"Fine Bubble Diffuser Long Operational Lifespan Low Energy Consumption And Operating Cost | For Pulp And Paper Industry Wastewater Secondary Treatment
FOB Price
- US $10.00
100 - 1,000 piece
- US $8.00
1,001 - 10,000 piece
group nameDisc Diffuser
-
Min Order100 piece
brand nameAquaSust
modelAS-DD350
payment methodL/C, D/A, D/P
-
update timeSun, 05 May 2024 09:59:30 GMT
Paramtents
Membrane Material EDPM, Rubber,Silica Gel
Connector 3/4"NPT male thread
Plate Color Black, White, Gray, Black
Packging & Delivery
Weight0.42kg / piece
Min Order100 piece
Briefing
AS-DD350 Disc Diffuser: OEM/ODM Wastewater Solution. Long-lasting, low energy consumption for Pulp & Paper Industry
Detailed

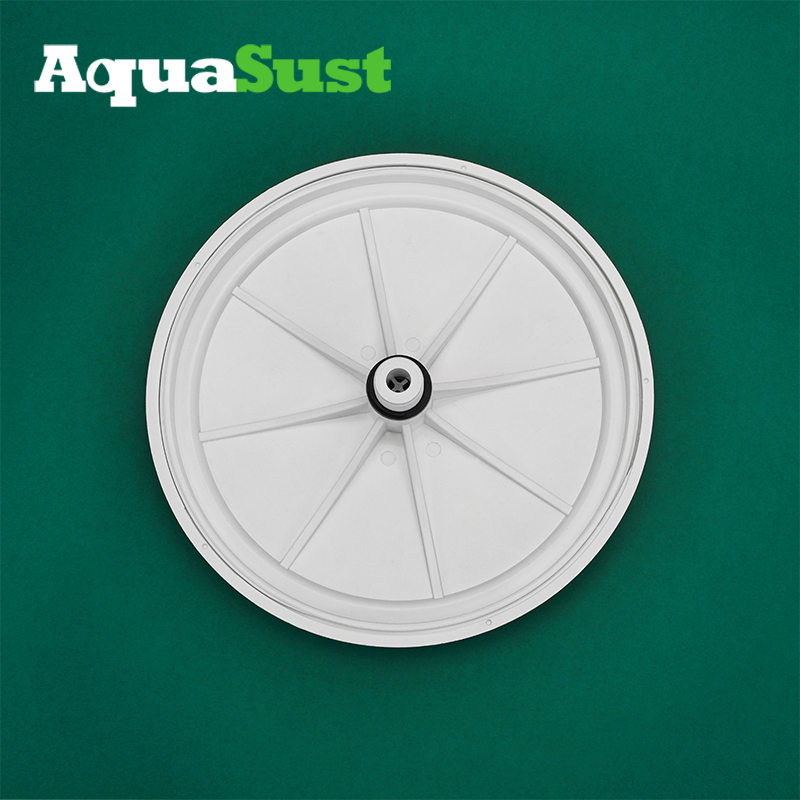

Disc Diffuser AS-DD350 Introduction
Category: Biochemical Tank - Aeration Diffuser
Brand: AquaSust
Model: AS-DD350
Size: 12 inch
Material: EDPM, Rubber, Silica Gel
Disc Diffuser AS-DD350 Advantage
Our 12" Fine Bubble Aerator is ideal for the wastewater treatment industry due to its long life, energy efficiency low operating costs. This aerator is made of high-quality materials and cutting-edge technology to ensure long-lasting stability and durability. The fine bubbles it produces effectively boost dissolved oxygen levels, accelerating the efficiency of microorganisms in treating organic matter, while the optimized oxygen transfer efficiency significantly reduces energy consumption, bringing users an economical treatment solution.
Disc Diffuser AS-DD350 Application
In the secondary treatment of pulp and paper industry wastewater, the AS-DD350 Disc Diffuser significantly enhances the efficiency and effectiveness of the process through its efficient working mechanism. These aerators are installed at the bottom of the treatment tank and connected to an air supply source, utilizing micro-pores in the EPDM diaphragm to generate fine and uniform air bubbles. This design increases the air-water contact area, which improves the efficiency of dissolved oxygen transfer. As dissolved oxygen levels increase, microbial activity in the tank is enhanced, effectively breaking down the high concentrations of organics, colorants, and chemical additives in the wastewater. The disc aerator not only supports the metabolic needs of the microorganisms and accelerates the degradation of organic pollutants, but also reduces the operating costs of the entire system due to its design optimizing energy use. Their clogging resistance and durability further reduce maintenance requirements and ensure long-term stable operation, making them a key technology solution for pulp and paper industry wastewater treatment.
Parameter
|
No.
|
Item No.
|
AS-DD350
|
|
1
|
Bubble Type
|
Fine Bubble
|
2 | Plate Diameter | 350mm |
3 | Membrane Diameter | 12 inch |
4 | Membrane Material | EDPM, Rubber,Silica Gel |
5 | Base Material | ABS, ABS + Glass Fibre，PP PP+ Glass Fibre |
6 | Connector | 3/4"NPT male thread |
7 | Weight | 1.14KG |
8 | Plate Color | Black, White, Gray, Black |
9 | Membrane Thickness | 2mm |
10 | Bubble Size | 1-2mm |
11 | Design Flow | 5-6 m3/h |
12 | Flow Range | 1-12 m3/h |
13 | SOTE | ≥40% |
14 | SOTR | ≥0.75kg O2/h |
15 | SAE | ≥8.9kg O2/kw*h |
16 | Headloss | 1500-4300Pa |
17 | Service Area | 0.4-1.5 m2/pcs |
18 | Service Life | > 7years |
