600V Energy Storage Cable UL 10070

  • group nameUL Energy Storage Cable

  • Min Order1 piece

  • brand nameSUNKEAN Solar Manufacturer

  • modelUL 10070

  • payment methodT/T, L/C

  • update timeSun, 07 Dec 2025 06:06:03 GMT

Paramtents

  • Conductor Tinned copper stranded, or bare copper

  • Insulation Lead free PVC, Passed RoHS

  • Rated temperature 105°C

  • Rated voltage 600V AC

  • Flame test Horizontal flame UL VW-1 & CSA FT1

  • According to UL758, UL1581

Packging & Delivery

  • Min Order1 piece

Briefing

Conductor: 18AWG~4/0AWG
Color: Black, Optional color

Detailed

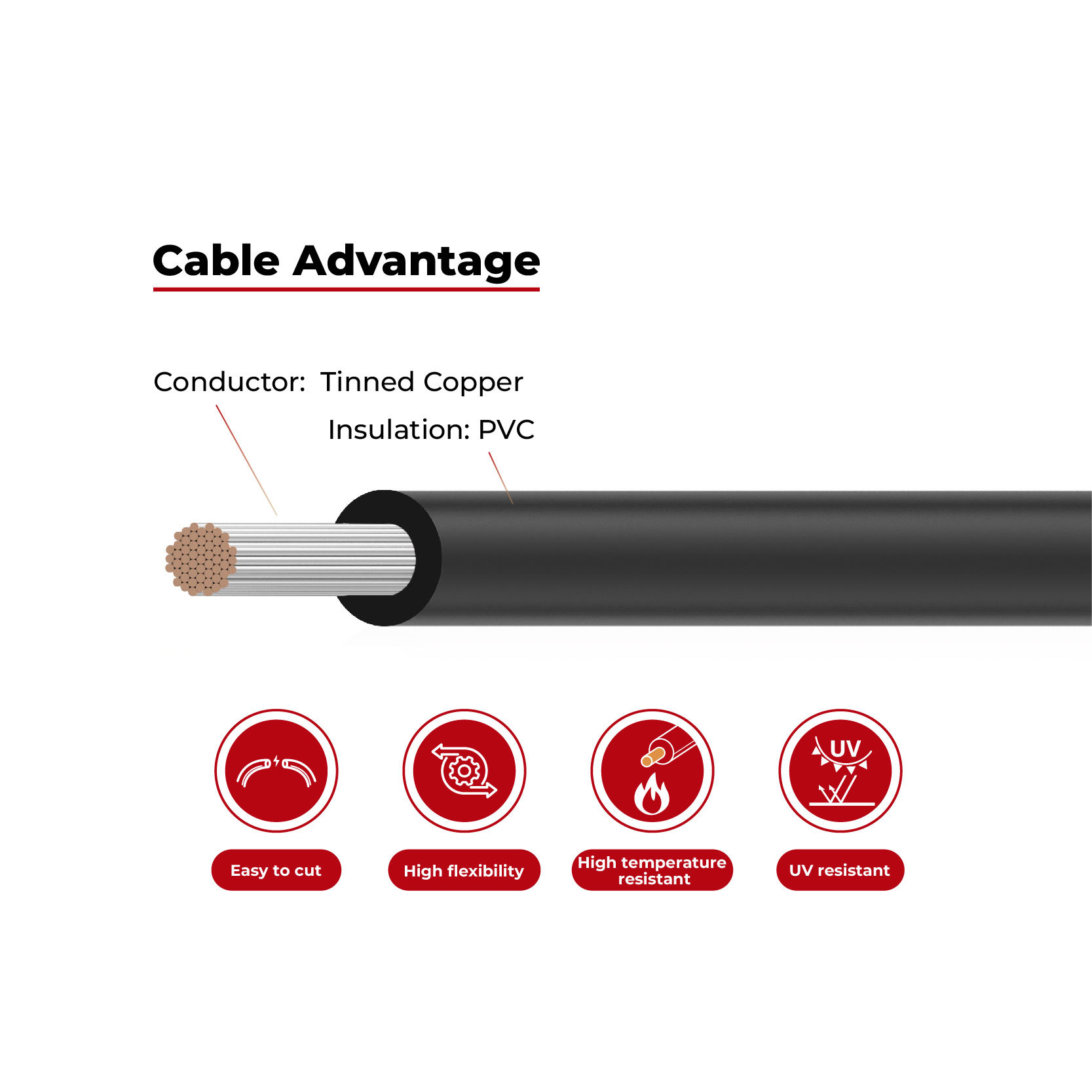

UL 10070 Energy Storage Cable Advantages
energy storage cable
UL 10070 Energy Storage Cable
UL 10070 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.

· Easy stripping and cutting
· High flexibility
· High temperature resistant
· UW resistant
· High flame retardant
UL 10070 Energy Storage Cable Technical Data
Conductor:
Tinned copper stranded, or bare copper stranded or solid conductor
Insulation:
 Lead free PVC, Passed RoHS
Rated temperature:
105°C
Rated voltage:
600Vac
According to:
UL758, UL1581
Flame test:
Horizontal flame
UL VW-1 & CSA FT1
ul energy storage cable in cabinet with solar panel system
UL 10070 Energy Storage Cable Product description
Cable Name
Cross Section
(AWG)
Insulation Nom Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistant Max
 at 20°C (Ώ/km)
UL 10070
18
0.76
2.80
23.2
16
0.76
3.10
14.6
14
0.76
3.50
8.96
12
0.76
4.00
5.64
10
0.76
4.90
3.54
9
0.76
5.30
2.81
8
1.14
6.50
2.23
7
1.14
7.00
1.768
6
1.52
8.30
1.403
5
1.52
8.90
1.113
4
1.52
9.70
0.882
3
1.52
10.50
0.6996
2
1.52
11.60
0.5548
1
2.03
13.40
0.4398
1/0
2.03
14.60
0.3487
2/0
2.03
16.00
0.2766
3/0
2.03
17.40
0.2194
4/0
2.03
19.00
0.1722
