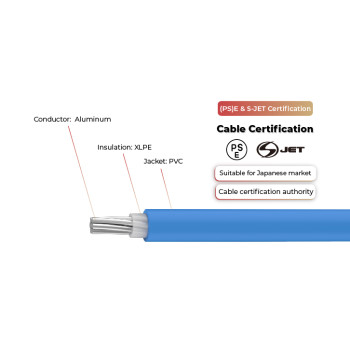

600V Solar Cable AL-CV Single Core (PS)E & S-JET
group namePSE Solar Cable
-
Min Order1000 meter
brand nameSUNKEAN Solar Manufacturer
modelCV Single Core
payment methodT/T, L/C
-
update timeSat, 06 Dec 2025 06:41:31 GMT
Paramtents
Rated temperature -15°C~+90°C
Tested voltage 14~22mm² : 2.0 k V/1min AC
Rated voltage 600V DC
Reference Standard JCS 4348，JIS C 3005
Conductor Aluminum
Insulation XLPE, Natural color
Jacket PVC, Blue
Packging & Delivery
Min Order1000 meter
Briefing
Conductor: 14~100mm²
Insulation Color: Natural
Jacket Color: Blue
Insulation Color: Natural
Jacket Color: Blue
Detailed
600V AL-CV Single Core Solar Cable Advantages
600V Solar Cable AL-CV Single Core (PS)E & S-JET
Compared with CV multi-core cable, pse japanese cable CV single-core cable has natural color insulation. With the most universal 600V low voltage and aluminum conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test and JCS 4348, ensuring the security and stability of Japanese market projects.
· Good flexibility
· Damp heat-resistant
· Oil resistant
· UV resistant
600V AL-CV Single Core Solar Cable Technical Data
|
Rated temperature
|
-15°C~+90°C
|
|
Tested voltage | 14~22mm² : 2.0kV/1min AC 38~100mm²：2.5kV//1min AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JCS 4348, JIS C 3005 | |
600V AL-CV Single Core Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D. Range
(mm) |
Approximate Weight (kg/km) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable AL-CV Single Core (PS)E & S-JET | 38 | 1.2 | 1.5 | 12.70±0.30 | 215 | 0.789 |
60 | 1.5 | 1.5 | 15.30±0.30 | 310 | 0.500 | |
100 | 2.0 | 1.5 | 18.80±0.30 | 485 | 0.300 |
