100Ω High Speed Cable SAS 3.0 UL Certified
group nameAI Interconnection Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelSAS3.0
payment methodT/T, L/C
-
update timeSat, 06 Dec 2025 01:49:45 GMT
Paramtents
Rated temperature 80°C
Rated voltage 30V
Conductor Silver-plated
Insulation FEP/PE
Environmental Standards Compliance RoHS 2.0
File Number E522621
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 30AWG, 32AWG, 34AWG
Insulation: FEP/PE
Insulation: FEP/PE
Detailed
High Speed SAS 3.0 Cable Advantages

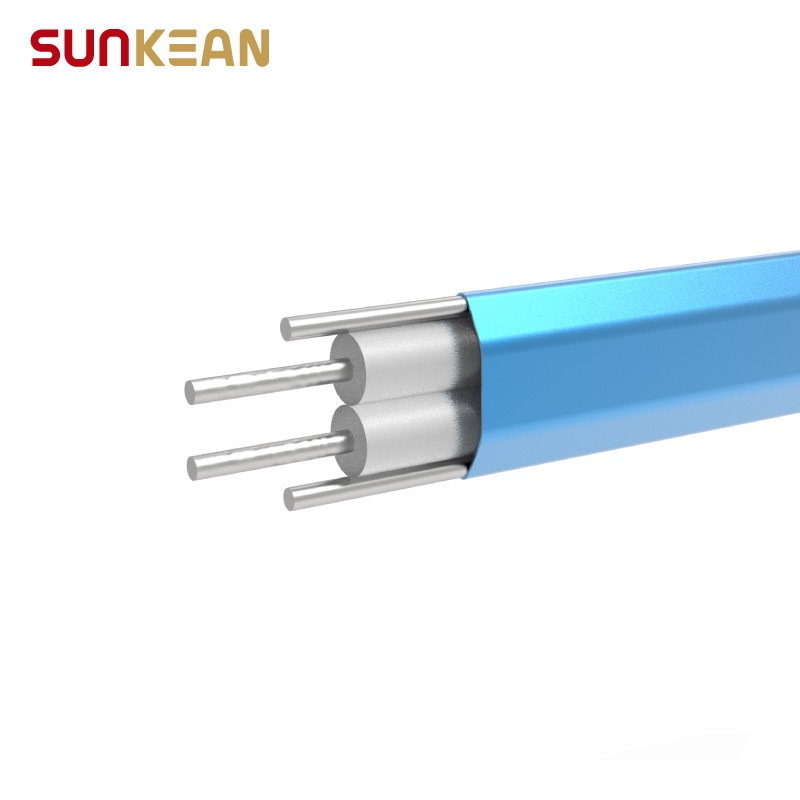

100Ω High Speed Cable SAS 3.0
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
High Speed SAS 3.0 Cable Technical Data
Conductor | Silver-plated |
Insulation | FEP/PE |
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | Yes |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
High Speed SAS 3.0 Cable Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Cable O.D.
(mm) | Insertion Loss (4.5GHz) | Insertion Loss
(9GHz) | Delay |
100Ω High Speed Cable SAS 3.0 | 34 | 0.5 | 0.62*1.52 | 6dB | 10.2dB | 5.2ns |
32 | 0.58 | 0.75*1.75 | 5dB | 8.5dB | 5.2ns | |
30 | 0.82 | 0.96*2.18 | 4dB | 6.5dB | 5.2ns |
