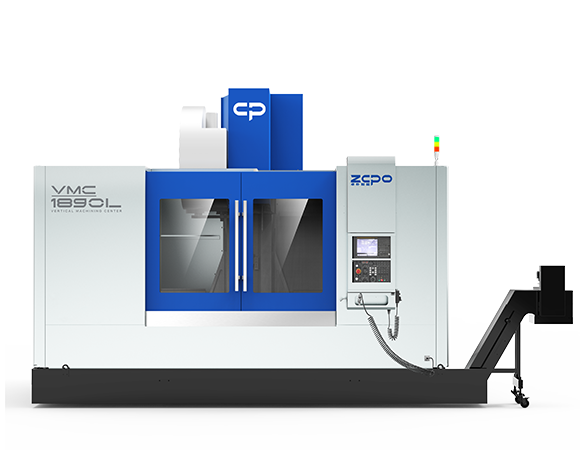

VMC1890L XY Linear guideway Z Box guideway Belt spindle
group nameVMC Series - Classic Models
-
Min Order1 piece
brand nameZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
modelVMC1890L
-
update timeFri, 05 Dec 2025 19:25:58 GMT
Paramtents
BRAND ZOPOCNC
CNC FANUC/SIEMENS/MITSUBISHI
SPINDLE BELT SPINDLE
CONTROL SEMI-CLOSED LOOP CONTROL
Packging & Delivery
Min Order1 piece
Briefing
Detailed
vertical cnc machine
VMC1890L
High rigiety for heavy cutting
Heavy stock removal, tough materials, highrigidity/torque, precision for mold/engineeringmachinery.
1850/900/900mm
X/Y/Z axis travel
900×2000mm
Worktable size
6000rpm
Spindle speed
24/24/15m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
XY axis linear guideway Z axis box guideway large machine body structure with high rigidity heavy cutting and high stability
- Three-axis full-travel support: unique machine bed slide design, saddle full-travel without hanging phenomenon, the table in the X-axis travel for the full support, processing center in the middle of the two guideway, load force is strong.
- Y-axis adopts four 45mm high rigidity and high load roller linear guideway, 8 heavy slider, strengthen the rigidity and load.
- Convenient and efficient chip conveyor: the machine is equipped with 2 screw rows as standard, effectively discharging the chips generated during machining, with high conveying efficiency.
Superior processing capabilities
The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
Working range
- X/Y/Z axis travel
- 1850/900/900mm
- Distance from column to spindle center
- 960mm
- Max. load bearing of worktable
- 95-995mm
Worktable
- Worktable size
- 900x2000mm
- T-slot size
- 7-18*125mm
- Max. load bearing of worktable
- 1800kg
Spindle
- Spindle hole taper
- BT50
- Main motor power
- 15/18.5KW
- Spindle speed
- 6000(belt)rpm
Feed
- Max. feed speed
- 10000mm/min
- Rapid feed speed
- 24/24/15m/min
Tool magazine
- Tool magazine capacity
- 24T
- Tool change time
- 4.5S
Machine
- Machine dimension
- 6400*3550*3880mm
- Machine weight
- 14800kg
