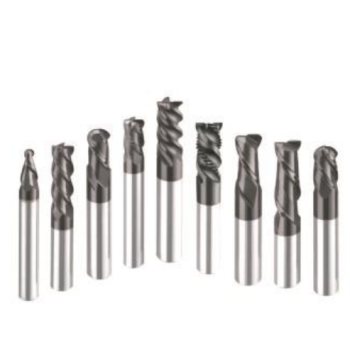

Carbide End Mills Carbide CNC End Mills for Mold and Steel
group nameGrinding Tools
-
Min Order1 piece
brand nameDONG CHENG
-
update timeWed, 09 Apr 2025 17:58:04 GMT
Paramtents
material tungsten carbide
Packging & Delivery
Min Order1 piece
Briefing
Carbide end mills are essential tools for precision machining in various industries.
Detailed
Carbide end mills Carbide CNC End Mills for Mold and Steel Product Overview
Carbide end mills are essential tools for precision machining in various industries. Designed for milling molds and steel, these CNC end mills offer exceptional durability and performance. Their carbide composition provides a high level of hardness and wear resistance, making them ideal for complex machining tasks.
Carbide end mills Carbide CNC End Mills for Mold and Steel Specifications
Size(MM) | 45° | 50° | 55° | 60° | 65° | |||||
Flat | Ball nose | Flat | Ball nose | Flat | Ball nose | Flat | Ball nose | Flat | Ball nose | |
Φ3×Φ3×50 | 9 | 12 | 12 | 13 | 12 | 14 | 24 | 28 | / | / |
Φ3×Φ3×100 | 13 | 16 | 20 | 23 | 21 | 24 | 31 | 36 | / | / |
Φ1－Φ4×50 | 10 | 13 | 13 | 15 | 14 | 16 | 27 | 31 | 37 | 43 |
Φ4×75 | 14 | 17 | 19 | 21 | 21 | 23 | 32 | 36 | 45 | 51 |
Φ4×100 | 17 | 23 | 22 | 25 | 24 | 28 | 37 | 41 | 69 | 76 |
Φ5×Φ5×50 | 14 | 20 | 18 | 20 | 21 | 24 | 33 | 37 | / | / |
Φ5×Φ5×75 | 20 | 30 | 29 | 32 | 32 | 36 | 46 | 52 | / | / |
Φ5×Φ5×100 | 24 | 34 | 32 | 36 | 37 | 41 | 53 | 59 | / | / |
Φ6×50 | 17 | 21 | 23 | 26 | 25 | 28 | 46 | 52 | 55 | 61 |
Φ6×75 | 24 | 30 | 33 | 37 | 36 | 40 | 56 | 64 | 72 | 83 |
Φ6×100 | 30 | 35 | 39 | 44 | 43 | 48 | 67 | 76 | 107 | 118 |
Φ8×60 | 32 | 38 | 40 | 45 | 45 | 51 | 77 | 87 | 109 | 123 |
Φ8×75 | 40 | 44 | 56 | 64 | 62 | 70 | 89 | 100 | 133 | 150 |
Φ8×100 | 52 | 62 | 67 | 76 | 74 | 83 | 112 | 127 | 169 | 190 |
Φ10×75 | 54 | 62 | 68 | 77 | 76 | 85 | 124 | 140 | 169 | 190 |
Φ10×100 | 72 | 81 | 94 | 107 | 102 | 116 | 156 | 178 | 236 | 262 |
Φ12×75 | 74 | 86 | 94 | 106 | 104 | 117 | 167 | 189 | 251 | 281 |
Φ12×100 | 99 | 115 | 128 | 144 | 138 | 156 | 213 | 240 | 314 | 351 |
Φ14×100 | 137 | 147 | 173 | 194 | 185 | 209 | 277 | 313 | 504 | 605 |
Φ16×100 | 179 | 197 | 216 | 245 | 233 | 263 | 360 | 407 | 647 | 780 |
Φ18×100 | 227 | 239 | 261 | 296 | 281 | 371 | 442 | 498 | 739 | 886 |
Φ20×100 | 270 | 285 | 315 | 357 | 353 | 399 | 529 | 598 | 828 | 995 |
Φ5×30×150 | 40 | 49 | 54 | 61 | 59 | 66 | / | / | / | / |
Φ6×30×150 | 51 | 60 | 66 | 75 | 71 | 81 | 115 | 130 | / | / |
Φ8×40×150 | 77 | 89 | 101 | 114 | 109 | 123 | 177 | 200 | / | / |
Φ10×50×150 | 116 | 131 | 143 | 162 | 154 | 175 | 251 | 284 | / | / |
Φ12×55×150 | 159 | 177 | 193 | 219 | 208 | 236 | 345 | 390 | / | / |
Φ14×65×150 | 193 | 214 | 252 | 285 | 271 | 307 | 526 | / | / | / |
Φ16×65×150 | 270 | 294 | 317 | 359 | 340 | 385 | 572 | 645 | / | / |
Φ18×70×150 | 330 | 369 | 394 | 446 | 423 | 478 | 723 | / | / | / |
Φ20×70×150 | 393 | 452 | 475 | 537 | 508 | 574 | 891 | 999 | / | / |
Φ6×35×200 | 82 | / | 90 | / | 98 | / | / | / | / | / |
Φ8×50×200 | 118 | / | 138 | / | 148 | / | / | / | / | / |
Φ10×60×200 | 163 | / | 200 | / | 199 | / | / | / | / | / |
Φ12×60×200 | 216 | / | 269 | / | 267 | / | / | / | / | / |
Φ14×70×200 | 282 | / | 347 | / | 365 | / | / | / | / | / |
Φ16×70×200 | 347 | / | 436 | / | 467 | / | / | / | / | / |
Φ18×70×200 | 424 | / | 527 | / | 593 | / | / | / | / | / |
Φ20×70×200 | 506 | / | 627 | / | 708 | / | / | / | / | / |
Carbide end mills Carbide CNC End Mills for Mold and Steel Applications
Carbide CNC end mills are widely used in industries such as aerospace, automotive, and manufacturing. They are perfect for creating intricate designs in molds and machining hard steel components. Their versatility allows for both roughing and finishing operations, ensuring high precision in every cut.
Carbide end mills Carbide CNC End Mills for Mold and Steel Advantages
High hardness and wear resistance for prolonged tool life.
Excellent chip removal for better surface finish.
Reduced vibration and noise during operation.
Compatible with various CNC machines for versatility.
Cost-effective in the long run due to durability.
Carbide end mills Carbide CNC End Mills for Mold and Steel Maintenance Tips
To ensure the longevity of your carbide end mills, proper maintenance is crucial. Regularly clean the tools after use to remove any debris. Store them in a dry, protective case to prevent damage. Avoid using excessive force during machining to prevent chipping and breakage.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
