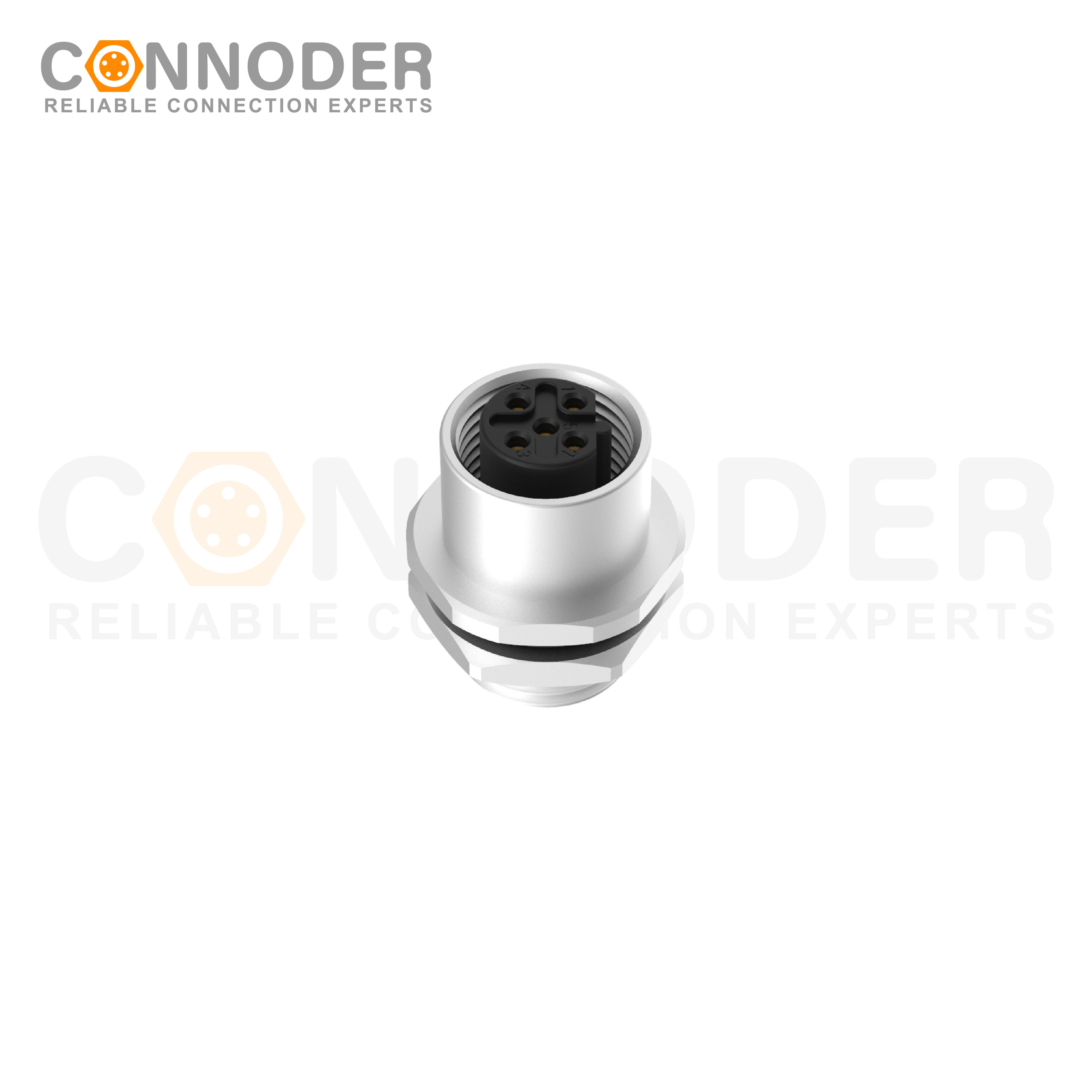

Wholesale M12 Circular Connector l 4 Pin Panel Mount,Solder Connection,M12x1.0, Rear Fastened
group nameM12 B Coded Connector
-
Min Order1 piece
brand nameConnoder Circular Connector Manufacturer
modelMC12BF-05F2LSLNS101
payment methodL/C, D/A, D/P
-
update timeFri, 05 Dec 2025 22:25:48 GMT
Paramtents
Type M12 Circular Connector
Contact Connection Type female Connector
Number OF Positions 3 Pin（3/4/5Pin Optional）
Coding B
Termination Solder
Mounting Type Rear Fastened
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
Min Order1 piece
Briefing
M12 Circular Connector is a versatile and robust connector designed for industrial applications.
Detailed
Wholesale M12 Circular Connector characteristic
Description
- Wholesale M12 Circular Connector provides multiple key control options (A, B, C, D, K, L, M, P, S, T, X, Y) and pins (2, 3, 4, 5, 6 , 8, 12, 17), ensure reliable connection and stable signal transmission.
- Its compact design and high reliability are suitable for various applications such as industrial automation, robotics and process control.
- The Wholesale M12 Circular Connector is designed with a threading, which is easy to install and has IP67/IP68 waterproof level. Use national standard brass and thickened copper core to ensure excellent conductivity. Nickel -plated metal shells and wear -resistant nuts provide a firm connection, the contact is plated, and the life span is 500 times, and the contact resistance is low.
Wholesale M12 Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
Wholesale M12 Circular Connector Size diagram
Wholesale M12 Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12BF-03F2LSLNS101 | 3 | 4A | 250V | 250V | 22 | 0.34 | |
MC12BF-04F2LSLNS101 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
MC12BF-05F2LSLNS101 | 5 | 4A | 60V | 60V | 22 | 0.34 | |
Wholesale M12 Circular Connector Coding Parameter:
| Pins | 3B | 4B | 5B |
| Male |  |
 |
 |
| Pins | 3B | 4B | 5B |
| Female |  |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
Wholesale M12 Circular Connector Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | Pins | 5 Pin Core Color | ||||||
| 1 | BN |  |
1 | BN | |
1 | BN | |
|||
| 2 | - |  |
2 | WH |  |
2 | WH | |
|||
| 3 | BU |  |
3 | BU | |
3 | BU | |
|||
| 4 | BK | 4 | BK | 4 | BK |  |
|||||
| 5 | GY |  |
|||||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
Wholesale M12 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
You need a product
You May Like
- Nearest port for product export
- Shenzhen Guangdong, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
