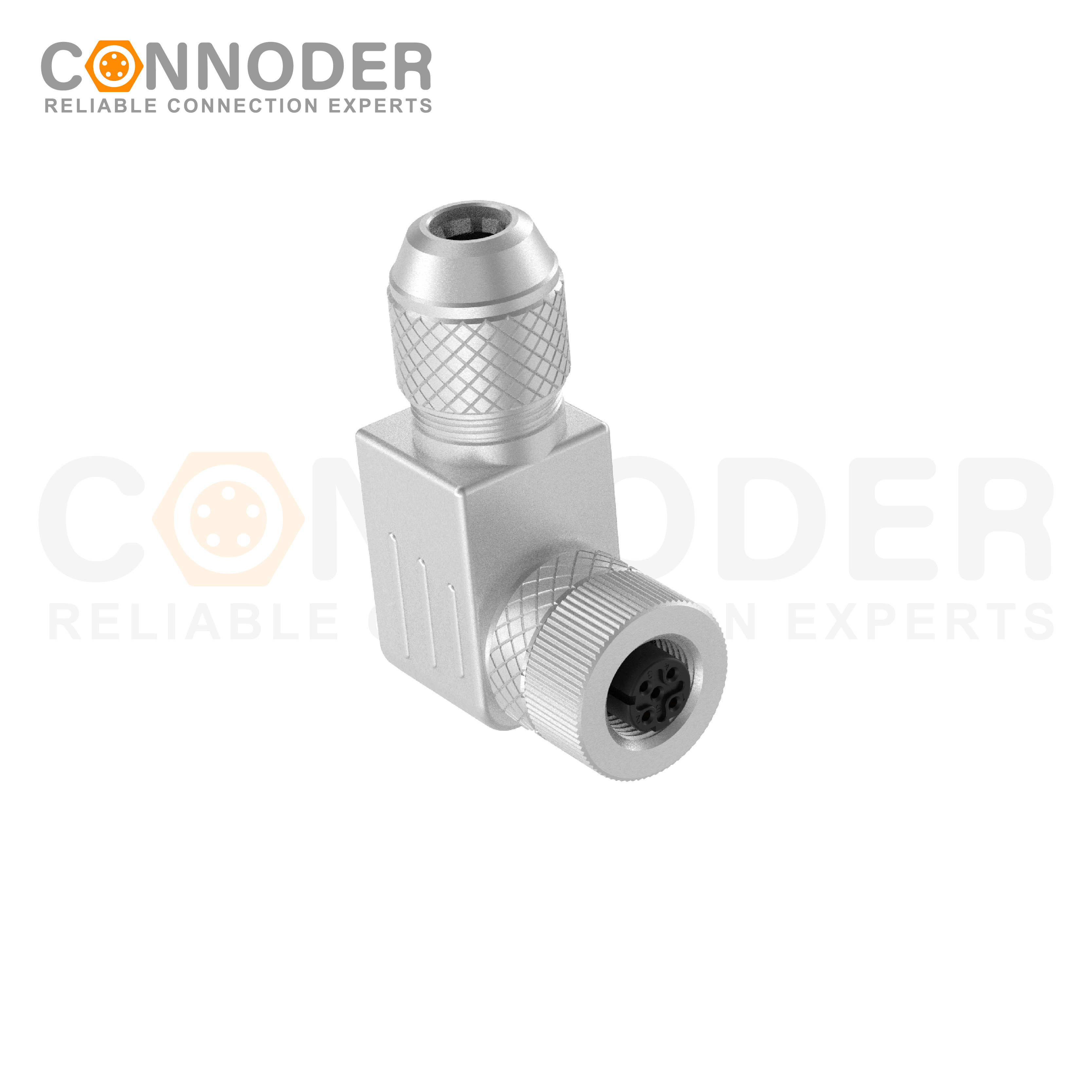

Wholesale M12 D Coded 4 Pin Circular Connector l Female Angle Circular Connector-Metal Assembled,Field Wireable,Screw Connection,Shielded,PG9
group nameM12 D Coded Connector
-
Min Order1 piece
brand nameConnoder Circular Connector Manufacturer
modelMC12DF-04N4LJZSR701
payment methodL/C, D/A, D/P
-
update timeFri, 05 Dec 2025 21:31:32 GMT
Paramtents
Type M12 Circular Connector
Contact Connection Type Female Connector
Number OF Positions 4 Pin
Coding D
Termination Screw
Mounting Type Right Angle Plastic Assembled
Shielded Option Shielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
Min Order1 piece
Briefing
M12 D Coded 4 Pin Circular Connector is a flexible and highly customizable connector suitable for a variety of industrial applications.
Detailed
Wholesale M12 D Coded 4 Pin Circular Connector characteristic
Description
- Pin count configuration: Wholesale M12 D Coded 4 Pin Circular Connector are typically available in a 4-pin configuration, making them ideal for Ethernet and other high-speed data transfer protocol applications such as ProfiNet and EtherCAT. This configuration meets the needs of most industrial networks, ensuring fast and stable data exchange.
- High-performance materials: The Wholesale M12 D Coded 4 Pin Circular Connector feature gold-plated contacts and corrosion-resistant housing materials. The high-quality material not only improves the electrical conductivity, enhances the durability of the connector, and can maintain stable operation under harsh working conditions.
- Protection level: up to IP67 or higher protection level, effectively prevent dust from entering, and can resist underwater immersion in a short time. The Wholesale M12 D Coded 4 Pin Circular Connector also performs well outdoors or in wet, dusty environments.
- Application scenario: Wholesale M12 D Coded 4 Pin Circular Connector are widely used in industrial Ethernet, Internet of Things (IoT), factory automation, sensor networks and other fields. Whether used to connect field devices or to build complex network architectures, Wholesale M12 D Coded 4 Pin Circular Connectors provide the ideal solution.
Difference between PG7 and PG9
PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.
Wholesale M12 D Coded 4 Pin Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
Wholesale M12 D Coded 4 Pin Circular Connector Size diagram
Wholesale M12 D Coded 4 Pin Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12DF-04N4LJZSR701 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
Wholesale M12 D Coded 4 Pin Circular Connector Coding Parameter:
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
Wholesale M12 D Coded 4 Pin Circular Connector Wire Definition:
| Pins | 4 Pin Core Color | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
Wholesale M12 D Coded 4 Pin Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
