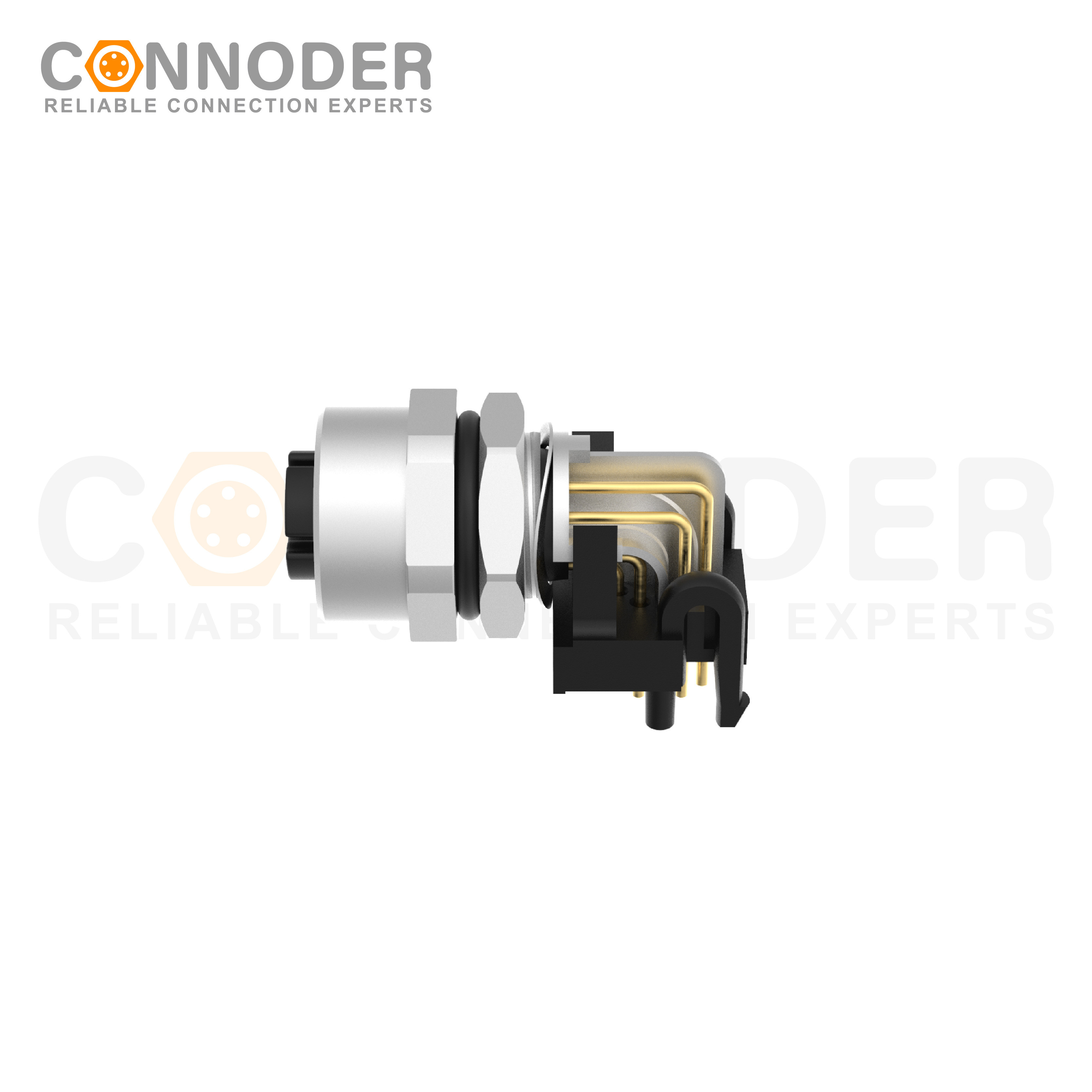

M12 X Coded Female 8 Pin Circular Connector - Wholesale with OEM & ODM Manufacturing | Panel Mount, PCB Dip-Solder Connection, Rear Fastened, M12x1.0 - Tailored Solutions for Distributors
group nameM12 X Coded Connector
-
Min Order1 piece
brand nameConnoder Circular Connector Manufacturer
modelMC12XF-08F2LMlNR101
payment methodL/C, D/A, D/P
-
update timeFri, 05 Dec 2025 22:42:40 GMT
Paramtents
Type M12 Circular Connector
Contact Connection Type Female Connector
Number OF Positions 8 Pin
Coding X
Termination PCB type
Mounting Type Right Angle Sockets
Shielded Option Yes/No Optional
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
Min Order1 piece
Briefing
M12 X Coded Female 8 Pin Circular Connector is a versatile and robust connector designed for industrial applications.
Detailed
M12 X Coded 8 Pin Circular Connector characteristic
Description
- TheM12 X Coded Female 8 Pin Circular Connector family is designed to meet the demands of high-speed data transmission in today's industrial environments. Our X-coded connectors not only support data transfer rates up to 10 Gbps, but are also equipped with advanced shielding technology to ensure stable, interference-free data communication in any environment.
- Ultra-high-speed transmission: The Cat6A standard supports a transmission rate of up to 10 Gbps, which is suitable for application scenarios requiring high bandwidth.
- Excellent EMI/RFI protection: Built-in alloy shielding effectively protects against electromagnetic interference and RF interference, ensuring data integrity.
- Rugged design: IP67 protection for optimal performance even under harsh operating conditions.
M12 X Coded Female 8 Pin Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 X Coded Female 8 Pin Circular Connector Size diagram
M12 X Coded Female 8 Pin Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12XF-08F2LMlNR101 | 8 | 0.5A | 50V | 60V | 26-24 | 0.14-0.25 | |
M12 X Coded Female 8 Pin Circular Connector Coding Parameter:
| Pins | 8X | 6Y | 8Y |
| Male |  |
 |
 |
| Pins | 8X | 6Y | 8Y |
| Female | |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 X Coded Female 8 Pin Circular Connector Wire Definition:
| Pins | 8 Pin X Core Color | Pins | 6 Pin Y Core Color | Pins | 8 Pin Y Core Color | ||||||
| 1 | WHOG |  |
D1+ | 1 | WHOG | |
D1+ | 1 | WHOG | |
D1+ |
| 2 | OG |  |
D1- | 2 | OG | |
D1- | 2 | OG | |
D1- |
| 3 | WHGN |  |
D2+ | 3 | WHGN | |
D2+ | 3 | WHGN | |
D2+ |
| 4 | GN |  |
D2- | 4 | GN | |
D2- | 4 | GN | |
D2- |
| 5 | WHBN |  |
D4+ | 5 | BU |  |
D4+ | 5 | BU | |
D4+ |
| 6 | BN |  |
D4- | 6 | WH |  |
D4- | 6 | WH | |
D4- |
| 7 | WHBU |  |
D3- | 7 | BN | |
D3- | ||||
| 8 | BU | |
D3+ | 8 | BK |  |
D3+ | ||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 X Coded Female 8 Pin Circular Connector PCB Pins Arrangement:
| Pins | 8X | 6Y | 8Y |
| PCB Pins Arrangement |  |
 |
 |
M12 X Coded Female 8 Pin Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
