Single-Crystal Sapphire
Selected for scratch resistance, stable optical protection and long service in demanding environments.

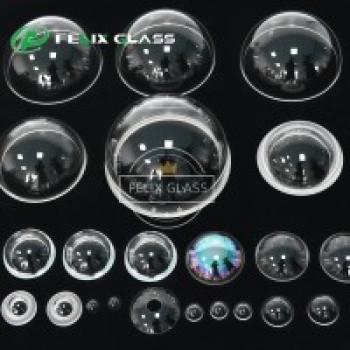

Custom Sapphire Optical Dome | OEM Custom Single Crystal Sapphire Spherical Cover
FOB Price
- US $5.99
5 - 99 piece
- US $4.85
100 - 999 piece
- US $3.89
1000 - 4999 piece
- US $2.88
5000 - 9999 piece
group nameSapphire Optical Dome
-
Min Order5 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelFG-GENERAL-OPTICAL-DOME-001
payment methodL/C, D/A, D/P, Western Union
-
update timeFri, 17 Jul 2026 01:17:28 GMT
Paramtents
Material Options Synthetic Single-Crystal Sapphire (BK7/K9 optical glass available as secondary custom option)
Customizable Items Diameter, wall thickness, hemispherical curvature, edge finish, functional coating
Optional Coating AR anti-reflective, AG anti-glare, AF anti-fog coating
Optical Surface Grade Up to λ/10 precision polishing standard
Dimensional Tolerance Up to ±0.01mm per customer drawing
Diameter Custom Range Custom 10–350mm outer diameter
Production Service OEM / ODM full engineering custom service
MOQ Support 1 piece prototype sampling available
Quality System ISO 9001 certified full traceability inspection system
Main Application Underwater optical systems, laser equipment, aerospace sensors, industrial imaging, machine vision,
Packging & Delivery
Size10cm x12cm x15cm
Weight0.5kg / piece
Min Order5 piece
Briefing
OEM custom single-crystal sapphire optical dome for underwater, aerospace, laser, imaging and machine vision equipment.
Detailed
Felix Glass Co., Limited manufactures OEM custom single-crystal sapphire spherical covers for optical systems that need a hard, clear and dimensionally controlled protective dome. custom size, sapphire optical dome engineering, optional coating, prototype support, tight drawing review and production for underwater, aerospace, laser, imaging and machine vision equipment. A sapphire optical dome is used when the optical path needs protection from abrasion, pressure, outdoor exposure, cleaning, heat or chemical contact while still allowing imaging or sensing through a curved cover. The dome can be reviewed around diameter, wall thickness, radius, edge finish, coating and inspection method so the part fits the housing instead of forcing the equipment design around a standard catalog item. Diameter, curvature, thickness and edge details can be matched to customer drawings. Dimensional, surface, coating and optical checks can be aligned with the project requirement. The primary material is synthetic single-crystal sapphire. BK7 or K9 optical glass can still be discussed as a secondary option when the project requires optical glass but does not need sapphire hardness. The correct dome design depends on the optical path, housing seal, cleaning method, working pressure, target wavelength and expected service environment. Sapphire can help protect imaging modules where pressure, corrosion, cleaning and optical clarity must be considered together. Drawing-based domes support compact sensor housings, laser modules and optical covers with defined inspection needs. For machine vision and inspection systems, sapphire helps reduce wear on exposed protective covers. Small changes in wall thickness, edge finish or spherical radius can affect assembly fit, sealing pressure and optical performance. For US buyers comparing custom suppliers, the useful question is not only whether sapphire can be made, but whether the drawing can be reviewed against machining, polishing, coating and inspection limits. Felix Glass can review the drawing, application environment and target quantity before confirming the production route, helping purchasing teams avoid unclear specifications and repeated sample changes. Outer diameter, radius, thickness, optical zone, coating and assembly edge are checked first. Sapphire blank size, machining allowance and inspection requirements are planned for the project. Diamond tooling is used to form the curved profile and prepare the part for optical polishing. Surface quality and optional AR, AG or AF coating are reviewed by optical and service needs. Dimensions, surface condition, coating appearance and packing protection are checked before shipment. The dome faces abrasion, repeated cleaning, marine exposure, outdoor service, heat, pressure or a long-use protective role. The assembly needs an optical dome shape but the service conditions do not require sapphire hardness or chemical resistance. AR, AG and AF choices should be tied to wavelength band, lighting environment, cleaning method and visible reflection target. Yes. Diameter, radius, thickness, edge finish, coating and inspection points can be reviewed from the drawing before quotation. Prototype sampling can be discussed for custom projects so engineering teams can verify fit and optical performance before larger orders. Share the wavelength range, reflection target, cleaning condition and application environment so AR, AG, AF or another coating route can be reviewed. Send the drawing, material request, diameter, radius, wall thickness, tolerance, coating, quantity, use environment and inspection requirement. For a useful quotation, provide the dome drawing, material choice, coating target, quantity, inspection notes and application environment. The Felix Glass team can review feasibility and production details for your custom sapphire optical component project.
Custom sapphire optics manufacturer
Custom Sapphire Optical Dome for Drawing-Based Optical Protection
Direct answer
What This OEM Sapphire Spherical Cover Is Built For
Custom Geometry
Inspection Focus
Interest stage
Material and Coating Options for Sapphire Optical Components
Specification review
Typical Technical Specifications for Custom Sapphire Domes
Product type OEM custom sapphire optical dome, spherical cover or hemispherical dome Model reference FG-GENERAL-OPTICAL-DOME-001 Material options Synthetic single-crystal sapphire; BK7/K9 optical glass available as a secondary custom option Custom items Diameter, wall thickness, curvature, edge finish, coating and optical surface requirement Optical surface grade Project review up to lambda/10 precision polishing standard when suitable for the design Dimensional tolerance Project review up to +/-0.01 mm according to drawing, structure and inspection method Diameter range Custom 10-350 mm outer diameter depending on geometry and material feasibility Common applications Underwater optical systems, laser equipment, aerospace sensors, industrial imaging and machine vision
Application fit
Where Custom Sapphire Spherical Covers Are Used

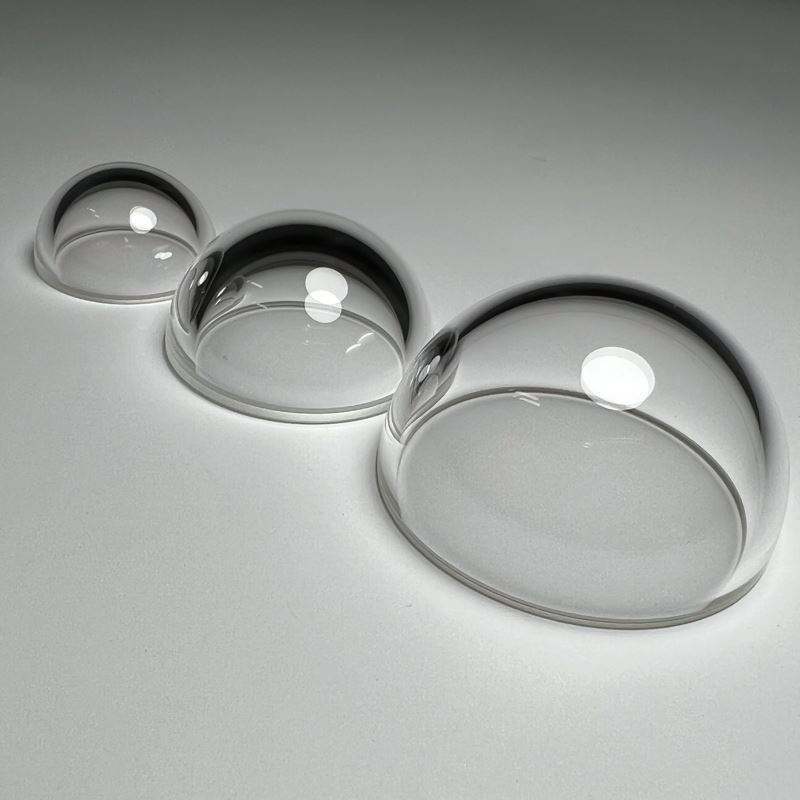

Underwater and ROV Systems
Aerospace and Laser Equipment

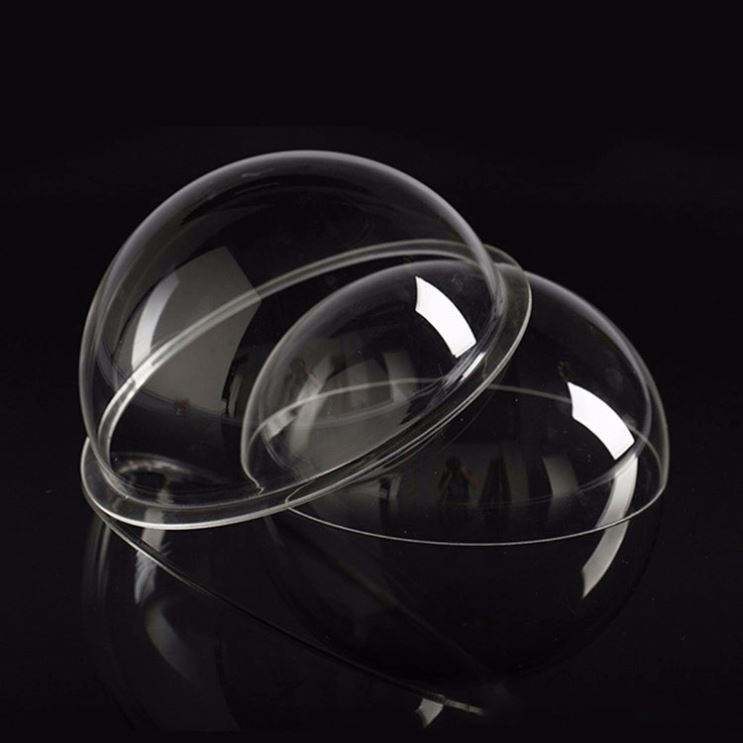

Industrial Imaging
Desire stage

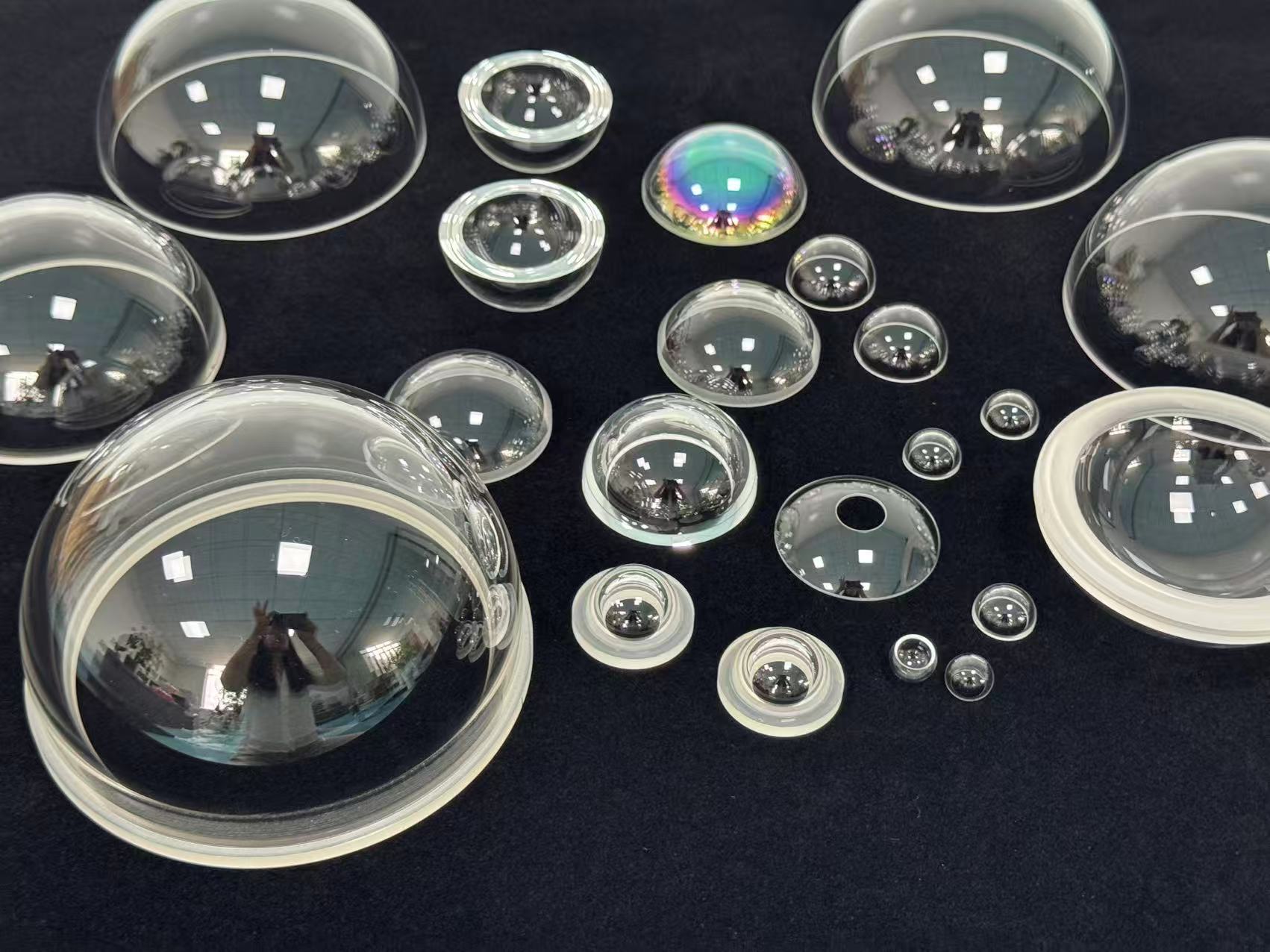

Why Drawing-Based Manufacturing Matters for Optical Domes
Production path
OEM Sapphire Optical Dome Manufacturing Workflow
Drawing Review
Material Planning
CNC Forming
Polishing and Coating
Final Inspection
Buyer evaluation
When to Choose Sapphire Instead of BK7 or K9 Optical Glass
Choose Sapphire When
Review BK7 or K9 When
Confirm Coating Early
Cross-link support
Related Sapphire Optical Dome Products for Comparison
FAQ
Questions Before Ordering a Custom Sapphire Optical Dome
Can the dome be made from a customer drawing?
Is one-piece prototype sampling available?
Which coating should be selected?
What information helps quotation accuracy?
Action stage
Send Your Sapphire Dome Drawing for Practical RFQ Review
