Assembly Fit
Outline, thickness, holes and narrow-bezel geometry follow the device drawing.
Laptop Screen Glass & Notebook Display Cover Glass | OEM Tempered Glass Manufacturer
FOB Price
- US $5.99
5 - 99 piece
- US $4.85
100 - 999 piece
- US $3.89
1000 - 4999 piece
- US $2.88
5000 - 9999 piece
group nameDisplay Cover Glass
-
Min Order5 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelFG-LAP-0012
payment methodL/C, D/A, D/P, Western Union
-
update timeThu, 16 Jul 2026 20:59:39 GMT
Paramtents
Material Tempered Glass
Shape Flat / Narrow Bezel
Size Customizable Size
Thickness 0.7mm / 1.1mm (Customizable)
Tempering Heat Tempering / Chemical Tempering
Edge Processing Flat Surface (Flat / Pencil / Beveled / Chamfered
Holes Round / Square (Irregular Holes Available)
Color Black / White / Silver (Up to 7 Layers of Color)
Surface Silk‑Print, Anti‑Fingerprint, Anti‑Scratch
Production Process Cutting → Edge Polishing → CNC → Cleaning → Printi
Application Laptop, Notebook, All‑in‑One PC
Packging & Delivery
Size50cm x50cm x30cm
Weight0.5kg / piece
Min Order5 piece
Briefing
Laptop screen tempered glass cover, high strength & clear view.
Detailed
Attention
OEM Laptop Screen Glass for Notebook Display Assemblies
Felix Glass Co., Limited manufactures custom laptop screen glass and notebook display cover glass for touch notebooks, business laptops and all-in-one PCs. The original product scope is retained: drawing-based sizes, narrow bezels, camera and sensor openings, silk printing, tempering and optional AR or AF surface treatment.
0.7 mm and 1.1 mm optionsHeat or chemical temperingPrototype and production support
Direct answer
What Is Custom Notebook Display Cover Glass?
Notebook display cover glass is the finished protective glass placed over an LCD or touch display. It can combine clear viewing, edge protection, printed decoration, camera openings and functional coatings in one drawing-controlled component.
Display Clarity
Material and coating choices are reviewed around transmission, reflection and use conditions.
Interest
Technical Specifications Retained From the Original Product
| Material | Tempered glass; high-strength aluminosilicate glass can be reviewed. |
|---|---|
| Shape | Flat panel with narrow-bezel and drawing-based outline options. |
| Size | Customizable to the laptop or notebook display drawing. |
| Thickness | 0.7 mm or 1.1 mm typical options; other thin-glass requirements reviewed by project. |
| Tempering | Heat tempering or chemical tempering. |
| Edge processing | Flat, pencil, beveled or chamfered edge according to assembly needs. |
| Holes | Round, square and irregular camera or sensor openings. |
| Color | Black, white or silver printing, with multilayer color printing available. |
| Surface | Silk printing, anti-fingerprint and anti-scratch treatment; AR and AF coating review available. |
| Application | Laptop, notebook and all-in-one PC display assemblies. |
Material selection

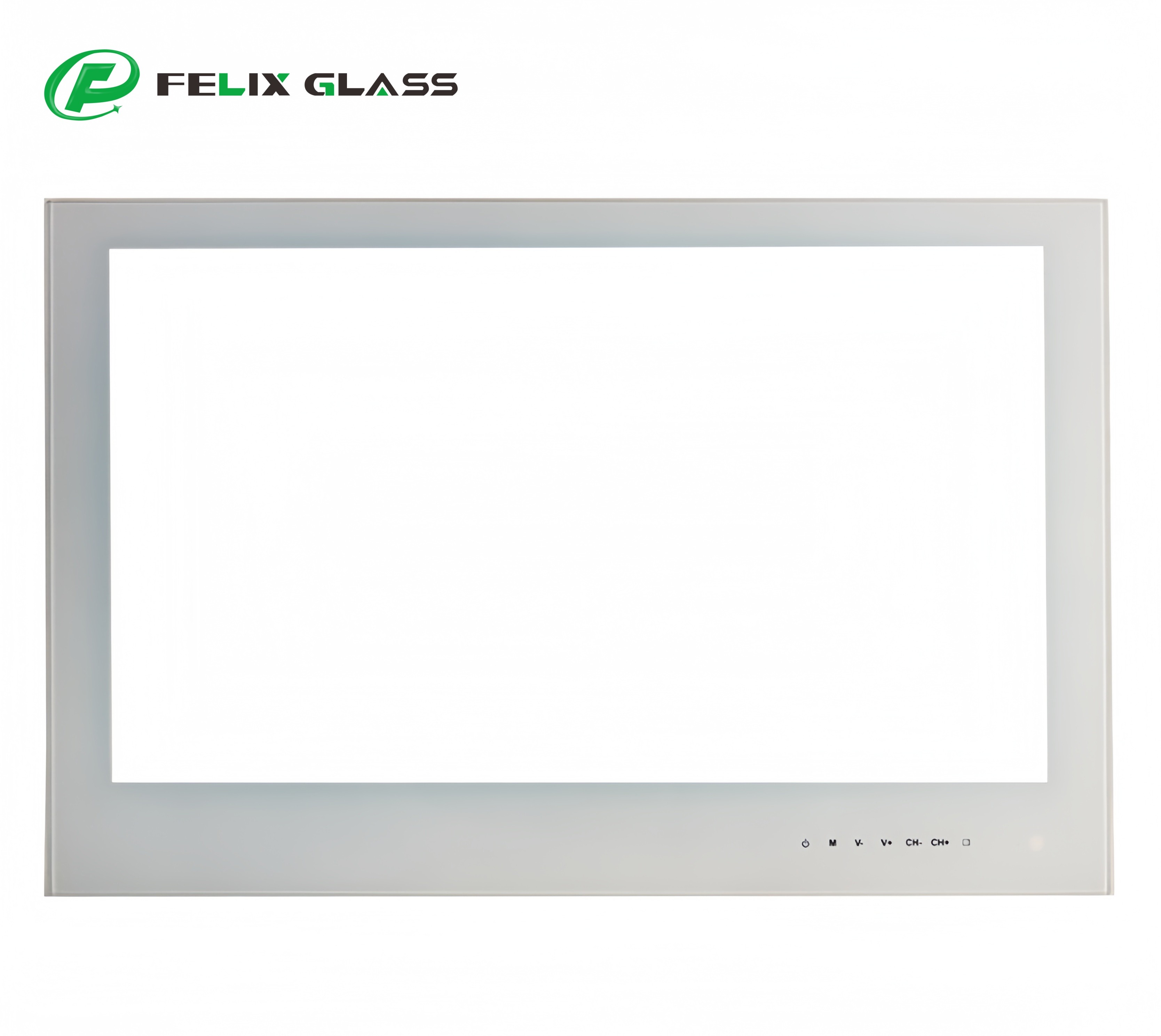

Glass, Printing and Coating Options
Material and treatment selection should be tied to the display structure, impact requirement, optical target and cleaning environment.
- Thin tempered glass: supports a low-profile notebook display assembly.
- Silk printing: creates borders, logos, icons and masking areas with drawing-defined registration.
- AR coating: can be reviewed to reduce visible reflection in the target display configuration.
- AF coating: can help reduce fingerprint marks and simplify routine cleaning.
Custom geometry

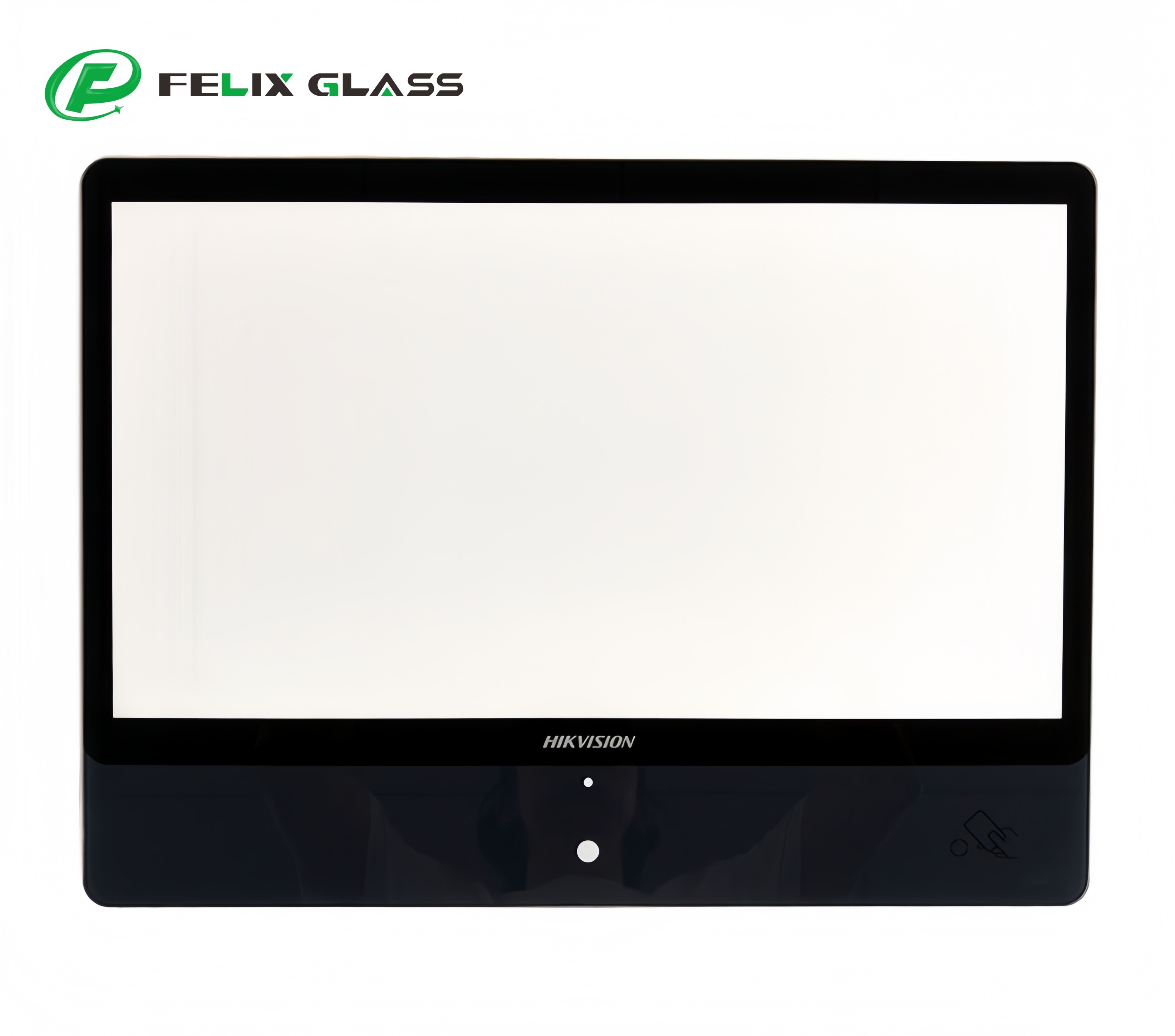

Narrow Bezels, Camera Openings and Edge Details
Outline and Bezel
CNC processing supports rectangular and drawing-based outlines with narrow printed borders.
Camera and Sensor Areas
Round, square or irregular openings can be reviewed for camera, microphone and sensor placement.
Edge Finish
Flat, pencil, beveled and chamfered edges can be matched to bonding and housing requirements.
Manufacturing
In-House Laptop Cover Glass Production Workflow
The retained production sequence is organized for engineering review: cutting, edge polishing, CNC machining, cleaning, printing, tempering, optional coating, inspection and protective packaging.
01 Drawing review02 Cutting and CNC03 Edge polishing04 Printing05 Tempering06 Coating and inspection
Desire
Quality Checks for Laptop Screen Glass Buyers
Appearance
Clear area, printed border, holes, edges and visible defects are reviewed against agreed criteria.
Dimensions
Outline, thickness, opening position and print registration are checked against the approved drawing.
Surface and Strength
Tempering and coating requirements are checked using the inspection plan defined for the project.
Application fit

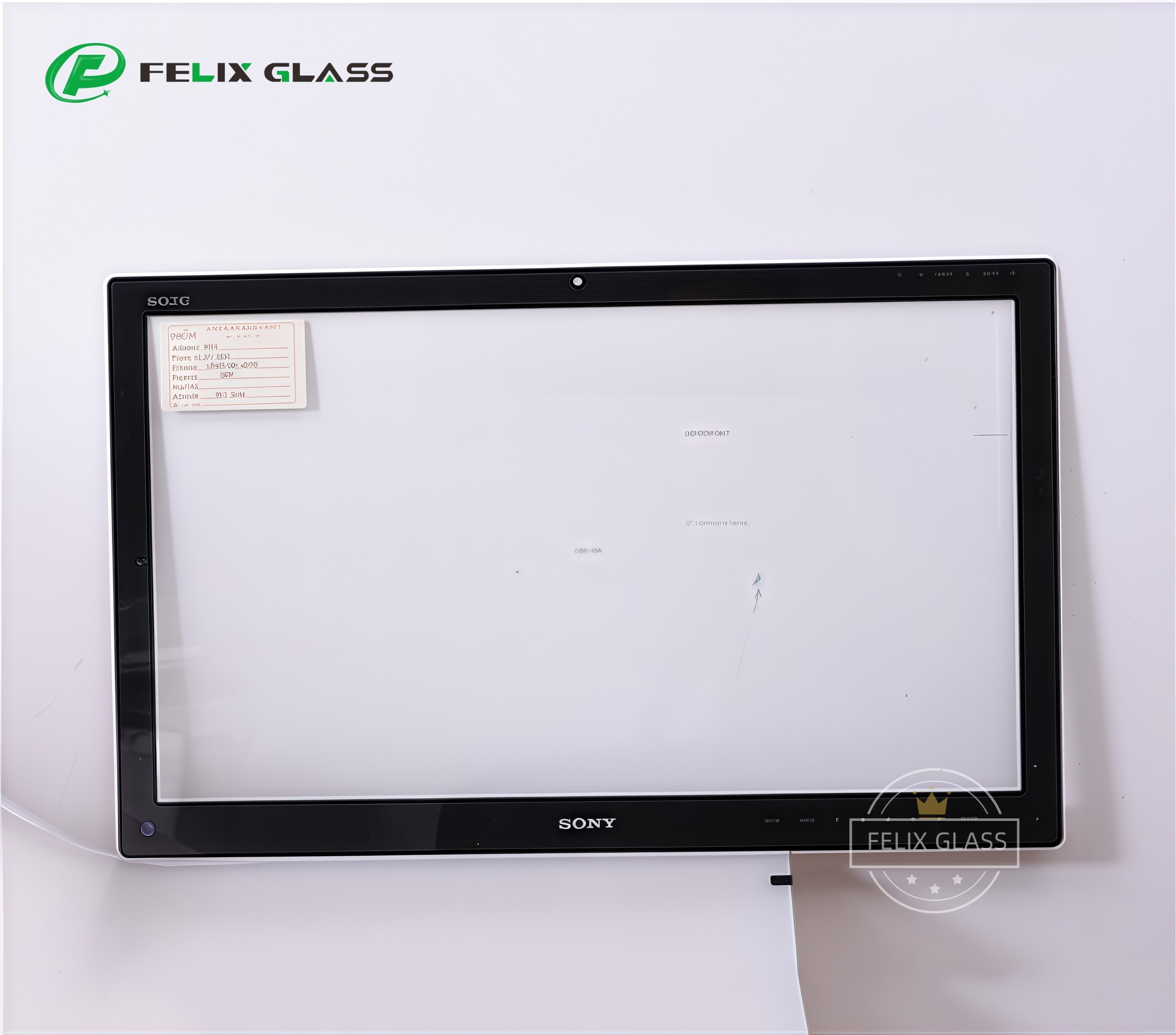

Touch Notebook, Business Laptop and All-in-One PC Uses
This cover glass can be adapted for touch-enabled notebooks, conventional laptop display covers, commercial computer terminals and all-in-one PC assemblies. Share the display stack, bonding method and housing constraints so glass thickness, bezel, openings and coating can be reviewed together.
OEM planning
Information Needed for a Drawing-Based Quote
Drawing Data
Provide outline dimensions, thickness, tolerances, holes, edge finish and print artwork.
Optical and Surface Data
Provide transmission, reflection, AR, AF, anti-scratch and cleaning requirements when applicable.
Commercial Data
Provide prototype quantity, production forecast, packaging needs and delivery destination.
Cross-link guide
Related Felix Glass Resources
Use these site pages to review the product family, company capabilities and inquiry options.
Buyer FAQ
Questions About Custom Laptop Display Glass
Can the glass follow an existing laptop drawing?
Yes. The outline, openings, printed areas, thickness and edge details can be reviewed from the supplied drawing.
Can AR and AF treatments be combined?
AR and AF options can be reviewed together after the substrate, optical target and service conditions are confirmed.
Are prototype quantities supported?
Prototype support can be discussed before repeat production so fit, appearance and assembly conditions can be checked.
What files help with print review?
A dimensioned drawing and vector artwork help confirm border width, logo position, openings and print registration.
Action
Send Your Laptop Cover Glass Drawing for Review
Felix Glass Co., Limited can review the drawing, glass thickness, print artwork, tempering route, coating target and order quantity for a practical OEM quotation.
