N-BK7 & Fused Silica plano convex cylindrical lens For Laser Scanning Metrology

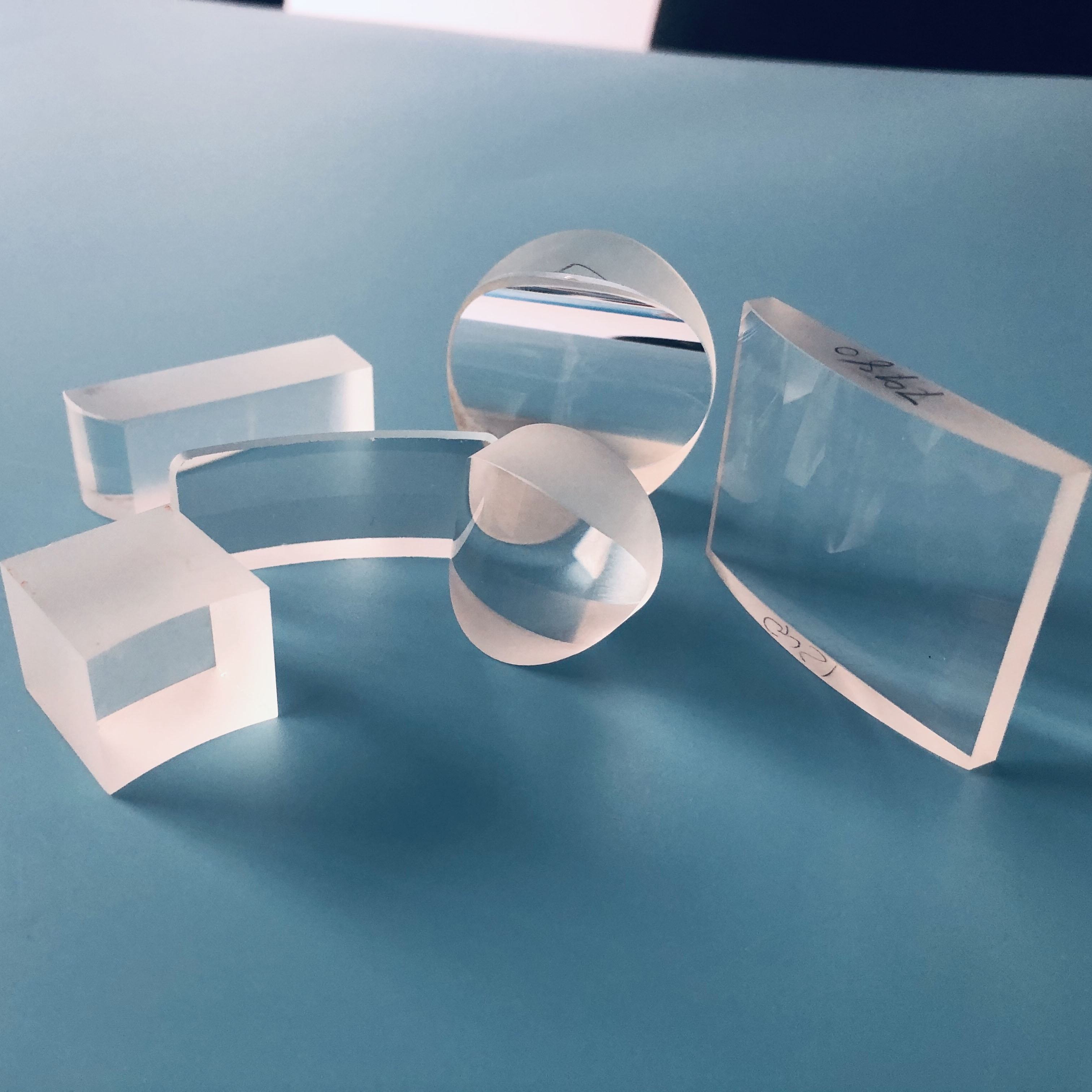

Felix Glass uncoated cylindrical lens is a one-dimensional beam shaping optical element, available in plano-convex (positive focusing) and plano-concave (negative diverging) two structures. Two mainstream optical substrates are optional: N-BK7 crown optical glass and high-purity fused silica, without any anti-reflection coating to meet special optical path requirements where film layer reflection interference is prohibited.



Cylindrical lens only focuses or diverges light along one single axis, forming linear laser spot, which is the core optical component for laser scanning, contour measurement, linear optical metrology and machine vision line scan detection. Ultra-precision surface polishing ensures uniform linear beam quality, stable focal line consistency for long-term precision measurement equipment.





- Optional Substrate: N-BK7 optical glass / High purity synthetic fused silica

- Lens Structure: Plano-convex (positive) & Plano-concave (negative) cylindrical single element

- Surface Coating: Uncoated raw optical surface, no AR film deposition

- Working Spectrum: N-BK7:400–1100nm; Fused Silica:185–2100nm deep UV to near IR

- Surface Quality: Standard 60-40 scratch-dig, upgradeable to 40-20 high precision

- Surface Flatness: ≤ λ/10 ..........8nm precision polishing standard

- Beam Characteristic: One-dimensional linear focusing/diverging, line laser spot output

- Edge Treatment: Optional black edge paint for stray light suppression





1. Dual substrate selection: N-BK7 for visible-near infrared low-cost measurement; fused silica for deep UV laser scanning metrology

2. Two cylindrical structures available: plano-convex for linear focusing, plano-concave for laser beam expansion

3. Uncoated bare surface design, eliminate coating film stray light interference, fit special metrology optical path demands

4. Ultra-precision cylindrical curved surface, uniform linear laser spot without distortion, stable measurement repeatability

5. Customizable aperture, cylindrical focal length, length and edge treatment to match laser scanning & linear measurement equipment

6. Low bubble & striation blank material, low internal light absorption, long service life for continuous industrial metrology





- Laser scanning contour measurement & optical metrology equipment

- Line scan machine vision linear detection optical modules

- UV laser marking & linear laser positioning systems

- Industrial precision dimensional measuring instruments

- Semiconductor linear defect inspection optical assemblies

- Laboratory laser beam shaping experimental platforms





We provide full one-stop cylindrical optical processing including N-BK7/fused silica blank cutting, ultra-precision cylindrical CNC grinding, high-precision surface polishing, edge chamfer/black edge treatment, strict linear beam uniformity testing and surface quality inspection.

Prototype sampling, small-batch trial production and mass manufacturing are supported. Every uncoated cylindrical lens is fully tested to meet customer-specified dimensional, spectral and beam shaping requirements before delivery.



Cylindrical lens only shapes light on one axis to form linear laser spot, suitable for linear scanning metrology; spherical lens focuses light on two axes to form circular spot.

N-BK7 works for 400nm+ visible & near infrared with lower cost; fused silica transmits deep UV below 300nm, high temperature resistant for UV laser scanning equipment.

Uncoated surface avoids extra reflection interference from coating film, meeting special optical metrology systems that require pure raw glass light transmission without film stray light.

It fits laser contour scanners, line scan machine vision detectors, UV laser linear positioning systems and industrial precision dimensional measuring instruments.

We supply single-spec sample trial and mass customized production, all cylindrical lenses pass linear beam uniformity and surface quality inspection before shipment.
