Custom ZnSe selenide infrared window For CO2 Laser Equipment

group nameZnSe Infrared Lens
Min Order1 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelFG-ZNSE-WINDOW-001
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T
update timeFri, 17 Jul 2026 20:35:18 GMT

contact supplier

Paramtents

Substrate Material High purity zinc selenide (ZnSe) infrared crystal
Transmission Band 0.6~18μm wide infrared transmission, optimal for 10.6μm CO2 laser
Working Temperature -40℃ ~ 250℃ continuous operation
Thickness Range 1mm ~ 10mm, thickness tolerance ±0.02mm
Available Shape Custom square, rectangle, round disc, special irregular outline
Surface Quality 40/20, 60/40 scratch/dig grade for optical surface
Edge Treatment Option Raw edge, chamfer polish, protective edge passivation
Optional Coating AR anti-reflective coating @10.6μm, single/double side coating
Main Application CO2 laser cutting, laser marking machine, thermal imaging, infrared spectroscopy

Packging & Delivery

Weight1kg / piece
Min Order1 piece

Briefing

Custom OEM high-purity ZnSe selenide infrared optical window for 10.6μm CO2 laser equipment. AR coating optional, custom size

Detailed

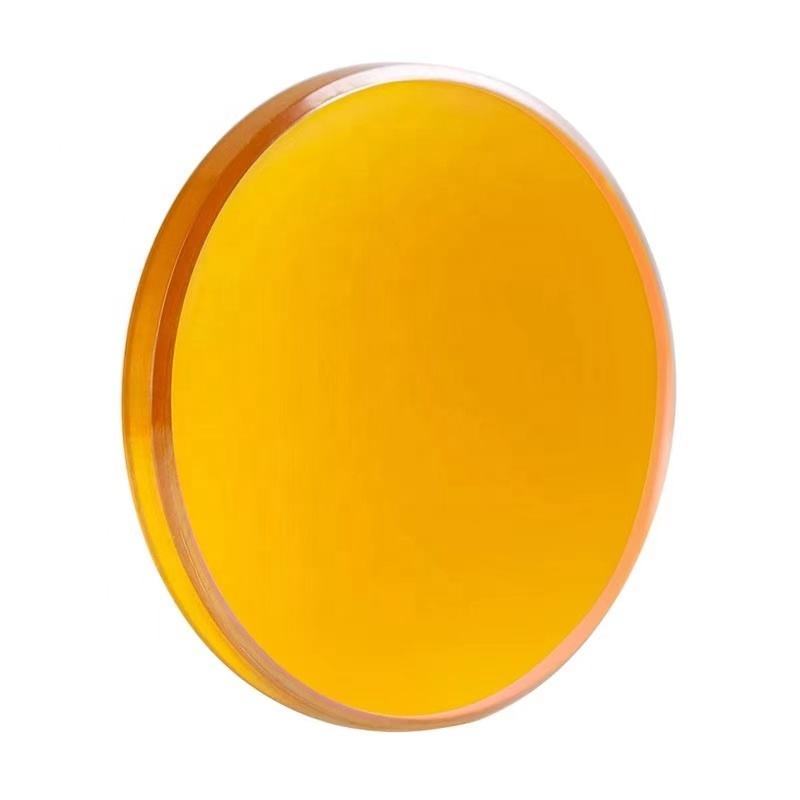

Custom Zinc Selenide ZnSe Infrared Optical Window

Felix Glass Zinc Selenide (ZnSe) infrared window is high-purity polycrystalline infrared optical substrate specially developed for mid-far infrared and CO2 laser systems. It features ultra-high transmittance within 0.6~18μm infrared wavelength band, with excellent optical performance at the 10.6μm CO2 laser core wavelength, making it the standard optical window material for industrial carbon dioxide laser equipment.

We adopt high-purity CVD-grown ZnSe crystal raw material, with stable physical and chemical properties, low thermal absorption and low thermal distortion. Optional single-sided or double-sided anti-reflection coating can further reduce infrared reflection loss and improve laser transmission efficiency. The substrate supports long-term stable operation under continuous laser irradiation and high temperature environment.

Core Product Advantages

Ultra-wide infrared transmission spectrum covering visible light to far infrared, peak transmittance over 97% at 10.6μm CO2 laser band.

Low thermal absorption coefficient, effectively avoid thermal lens effect and surface deformation during long-time laser work.

High mechanical uniformity, low internal stress, high scratch resistance optical surface with strict 40/20 scratch-dig grade standard.

Full customization support: outline size, substrate thickness, edge chamfer treatment, 10.6μm AR anti-reflective coating.

Stable chemical inertness, resistant to moisture and weak acid, suitable for complex industrial workshop environment.

Each finished ZnSe window will pass infrared spectral testing, dimensional inspection and surface defect detection before delivery.

Custom Processing Options

1. Shape Customization: Custom square, rectangle, circular wafer and irregular special outlines per customer engineering drawing.

2. Thickness Customization: 1mm to 10mm optional, strict thickness tolerance ±0.02mm.

3. Surface & Coating Customization: Uncoated bare ZnSe substrate or double-sided AR anti-reflection coating optimized for 10.6μm CO2 laser.

4. Edge Treatment: Raw edge, 0.5~2mm chamfer polished edge, anti-oxidation passivation edge for assembly.

5. Size Customization: Diameter or side length from 5mm to 300mm available for small laser head and large-format laser cutting equipment.

Typical Application Scenarios

This high-purity ZnSe infrared window is the core optical component of all kinds of CO2 laser equipment. It serves as protective output window for CO2 laser cutting machines, laser marking engraving equipment and laser welding systems. Besides, it can be applied to thermal infrared imaging detectors, mid-infrared spectral analysis instruments, industrial temperature measurement cameras and medical infrared diagnostic optical modules.

OEM Manufacturing Capability

Felix Glass supplies one-stop OEM & ODM custom processing service for Zinc Selenide infrared windows. Our complete production workflow includes high-purity ZnSe blank cutting, precision surface polishing, infrared anti-reflective vacuum coating, edge finishing and strict infrared spectrum performance testing.

We support prototype sampling, small trial batches and large-scale mass production. All ZnSe optical windows will go through full optical inspection to meet customer customized dimension and laser optical standards.

Complete production technological flow: ZnSe Blank Cutting → Precision Surface Polishing → AR Vacuum Coating → Infrared Spectrum Test → Edge Treatment → Vacuum Anti-Oxidation Pack

FAQ

1. What is the core advantage of ZnSe window for CO2 laser?

ZnSe material has extremely low light absorption at 10.6μm, avoiding thermal deformation, and maintains high transmittance for stable long-time laser output.

2. Can I customize anti-reflective coating on the ZnSe window surface?

Yes, we provide single-sided and double-sided AR coating specially optimized for 10.6μm CO2 laser to reduce surface reflectivity below 0.5%.

3. What shapes and sizes can be customized for ZnSe infrared window?

Round, square and rectangular outlines are all available, customizable size range from 5mm to 300mm, thickness adjustable from 1mm to 10mm.

4. Do you offer sample testing service and bulk mass supply?

Free prototype samples are available for laser performance testing. We support small trial orders and large volume mass production, with full optical inspection for every finished ZnSe window piece.

Request a Quote

Please send us your required window dimension, thickness, coating demand, edge processing standard and order quantity. Our professional optical engineering team will provide tailored laser optical matching solution and competitive quotation within 24 hours.
