Beam Control
Supports beam steering, deviation, splitting, folding and image rotation in compact optical layouts.
Custom Precision Optical Prism for Laser Medical Industrial Vision Scientific Instruments
group nameOptical Prisms
-
Min Order5 piece
brand nameFELIX GLASS optical glass Manufacturing base
modelFG-OPTICAL-PRISM-001
payment methodL/C, D/A, D/P, Western Union
-
update timeMon, 13 Jul 2026 23:45:47 GMT
Paramtents
Material Options BK7/K9, fused silica, borosilicate, sapphire and specialty optical materials
Prism Type Available Right angle, penta, Dove, equilateral, wedge, roof, beam splitter and custom prism
Precision Machining Index Custom size, thickness, angle tolerance and optimized surface flatness
Polishing Grade High-precision optical surface polishing for low distortion imaging
Optional Functional Coating AR, mirror, beam splitter, UV, visible and IR band coating customization
Optical Performance Accurate light deviation, high transmittance, stable long-term optical consistency
Production Service Prototype trial, small batch and OEM mass manufacturing support
Quality Management System ISO 9001:2015 certified, batch traceability, third-party inspection support
Main Application Machine vision, medical optics, laser systems and scientific instruments
Packging & Delivery
Size10cm x10cm x10cm
Weight0.5kg / piece
Min Order5 piece
Briefing
Custom precision optical prism for laser, medical, industrial vision and scientific instruments with BK7/K9 or fused silica.
Detailed
Felix Glass Co., Limited manufactures custom precision optical prisms for laser systems, medical optical equipment, industrial machine vision, scientific research and optical instrumentation. This renovated page keeps the original product direction: drawing-based prism geometry, multiple optical substrates, precision angle control, optical polishing and optional UV, visible or IR coating. Standard and custom prisms can be produced in BK7/K9 optical glass, fused silica, borosilicate glass, monocrystalline sapphire and selected specialty optical materials. The production route is matched to beam steering, image rotation, beam splitting or optical path correction requirements. A custom precision optical prism is a shaped optical component used to redirect, rotate, split, fold or correct a light path inside an optical assembly. Felix Glass reviews prism type, substrate, dimensions, angle tolerance, surface flatness, coating and inspection criteria from the buyer's drawing or optical design notes. BK7/K9, fused silica, borosilicate and sapphire can be reviewed by wavelength and environment. Angle, flatness, size, edge finish and coating are confirmed from project requirements. The specification order follows the existing product information while making each item easier for US buyers and engineering teams to scan. Different prism geometry solves different alignment or light-path tasks. Felix Glass can review the actual drawing rather than forcing a standard catalog shape into a custom assembly. Right angle, penta and wedge prisms can redirect the optical path inside instruments and laser modules. Dove, roof and related prism forms can be reviewed for image orientation and compact layout needs. Beam splitter prism coating can be customized by wavelength band, split ratio and inspection method. Material choice should follow wavelength, power level, thermal condition, mechanical exposure and cost target. BK7/K9 is often used for general optical instrumentation and machine vision, fused silica is reviewed for laser and UV-related stability, borosilicate supports many industrial environments, and sapphire can be considered for hard, scratch-resistant prism parts. Coating is selected after the working wavelength, angle of incidence, polarization sensitivity and optical target are known. Felix Glass can review AR anti-reflection coating, reflective mirror coating, beam splitter coating and custom UV, visible or infrared band coatings for prism projects. Confirm UV, visible, NIR or IR working band before coating design. Angle and coated surface position affect prism coating performance. AR, mirror or beam splitter coating is matched to the optical path. Surface quality, coating appearance and optical performance are checked. The original application scope is retained and grouped by how buyers usually evaluate the prism inside a system. Precision angle control supports imaging alignment and stable automated inspection results. Low distortion and high transmittance can support endoscopy, diagnostic devices and compact optical modules. Fused silica and suitable coating choices can be reviewed for higher-power laser transmission and spectroscopy. Custom prism geometry helps match laboratory instruments, measurement systems and experimental layouts. Felix Glass supports OEM and ODM customization from one-piece prototype review to scalable production. Buyers can specify dimensions, thickness, prism angle, tolerance, surface quality, edge treatment, coated surfaces and package requirements. All prism projects are reviewed around material verification, CNC machining, precision polishing, coating and final inspection. Inspection can include angle measurement, surface flatness, scratch-dig or visual screening, spectral transmittance testing, coating adhesion review and batch traceability. Custom shape and edge processing are planned from drawings and tolerance targets. Angle, flatness, appearance and transmittance can be checked before shipment. Batch production traceability and third-party inspection support can be arranged when needed. Define whether the prism steers, rotates, splits, folds or corrects the optical path. Select BK7/K9, fused silica, borosilicate or sapphire based on wavelength, power and environment. Angle tolerance, flatness, coating band and surface quality should be tied to the actual system requirement. Right angle, penta, Dove, equilateral, wedge, roof, beam splitter and irregular custom prisms can be reviewed by drawing. Fused silica is commonly reviewed for low absorption and thermal stability, but the final choice depends on wavelength, power and system design. Yes. AR, reflective and beam splitter coatings can be reviewed for UV, visible and infrared bands. Prototype and small-batch trial support can be reviewed before scaling to repeat OEM production. These internal pages help buyers compare prism geometry, AR-coated prism options, prism cubes, optical lenses and optical filters within the Felix Glass site. For a focused quotation, send prism type, dimensions, material, tolerance, coating requirement, quantity and application notes. Felix Glass can review manufacturability and prepare a practical custom optical prism quotation.
Attention stage
Custom Precision Optical Prism for Laser, Medical and Industrial Vision Systems
Model FG-OPTICAL-PRISM-001BK7/K9, fused silica, sapphireOEM prism geometry
Direct answer
What Is a Custom Precision Optical Prism?
Material Selection
Drawing-Based Tolerance
Interest stage
Original Product Parameters Organized for Engineering Review
Category Optical Prisms. Brand Felix Glass Co., Limited / FELIX GLASS optical glass Manufacturing base. Model FG-OPTICAL-PRISM-001. Material Options BK7/K9 optical glass, fused silica, borosilicate glass, monocrystalline sapphire and specialty optical materials for selected projects. Prism Types Available Right angle, penta, Dove, equilateral, wedge, roof, beam splitter and custom irregular geometry prism. Precision Machining Index Custom dimensions, thickness, angle tolerance and optimized surface flatness. Polishing Grade High-precision optical surface polishing for low-distortion imaging. Optional Functional Coating AR anti-reflection coating, reflective mirror coating, beam splitter coating and UV, visible or IR band customization. Optical Performance Accurate light deviation, high transmittance and stable long-term optical consistency. Production Service Prototype trial, small batch and large-scale OEM manufacturing support. Quality Management ISO 9001:2015 certified production, batch traceability and third-party inspection support when required.
Prism geometry

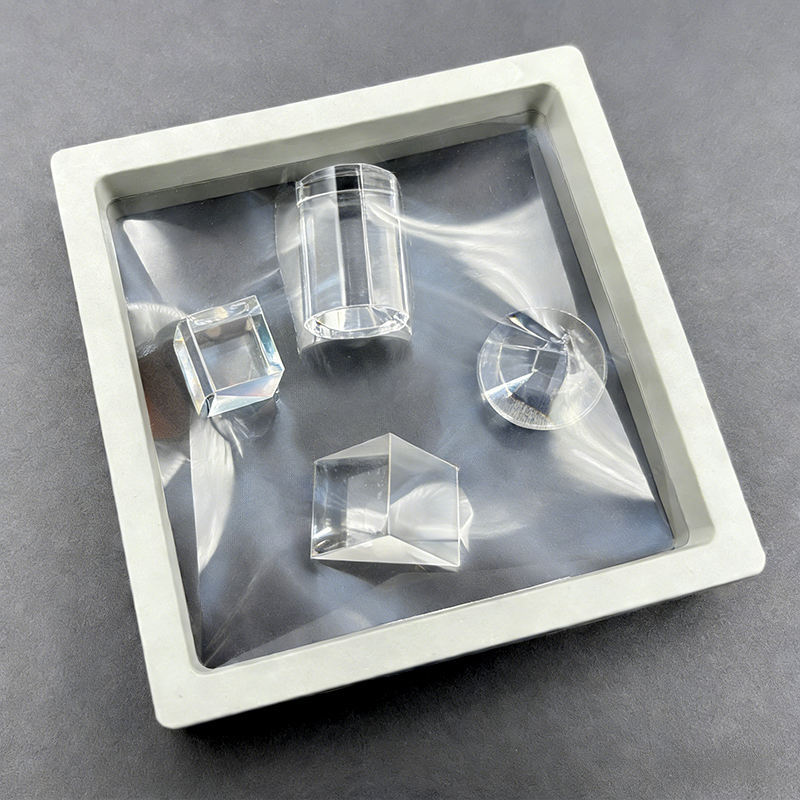

Right Angle, Penta, Dove, Equilateral, Wedge, Roof and Beam Splitter Prisms
Beam Steering and Folding
Image Rotation

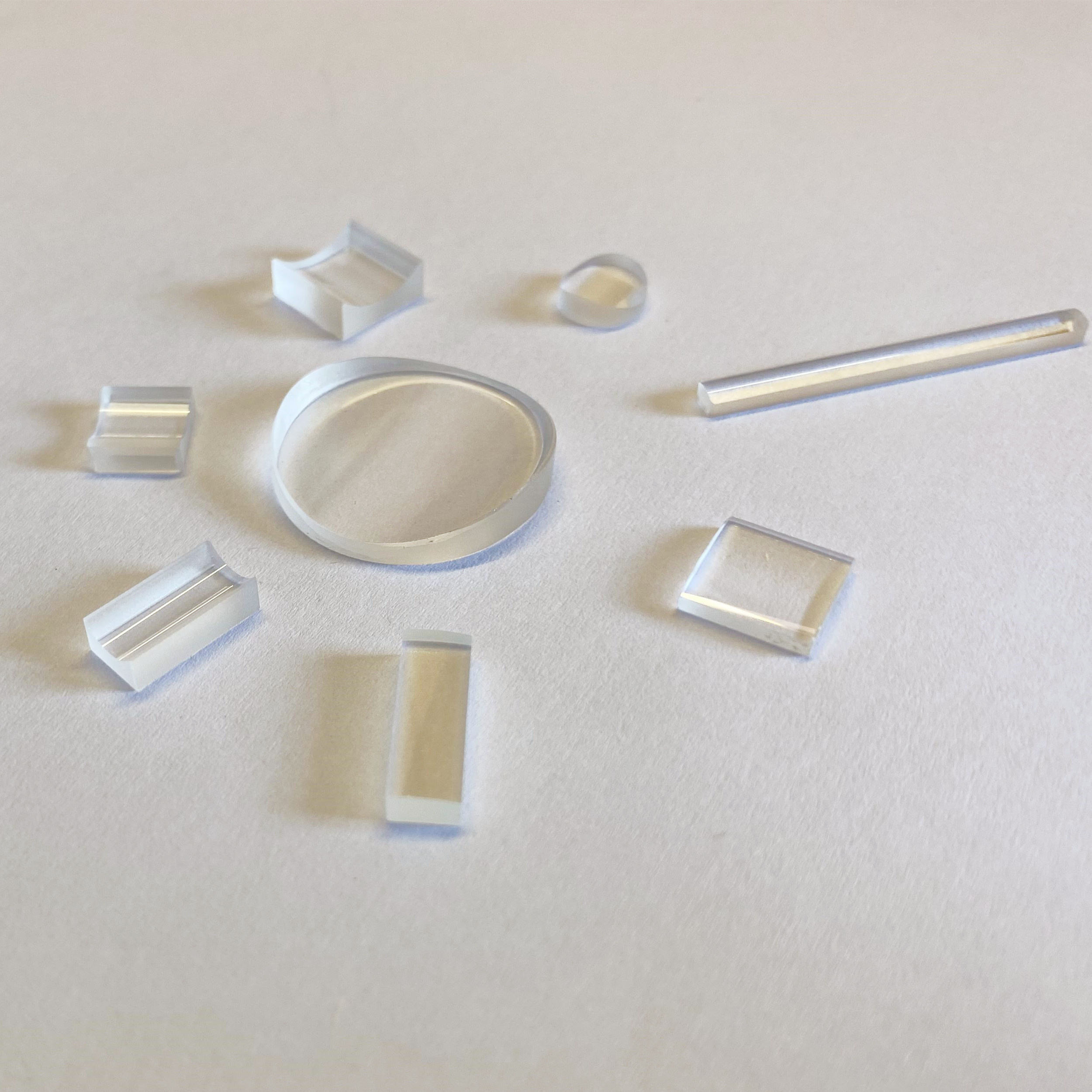

Beam Splitting
Material selection

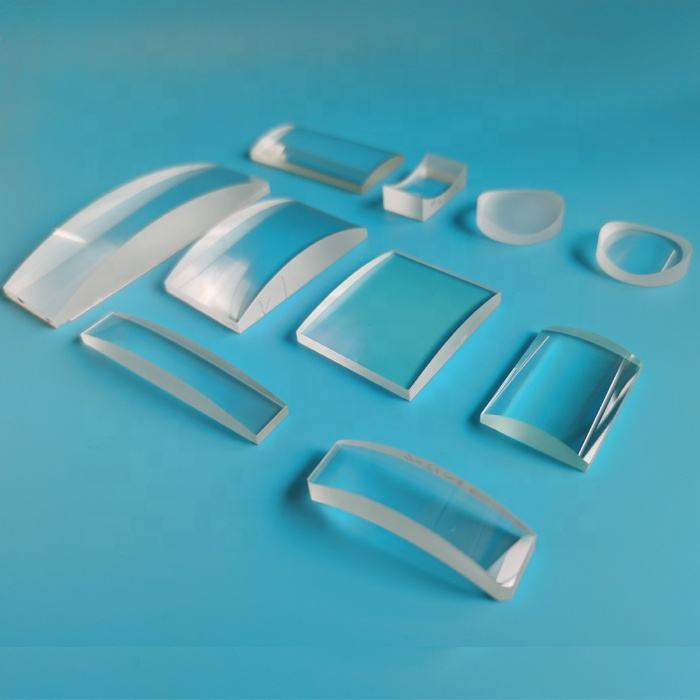

BK7/K9, Fused Silica, Borosilicate and Sapphire Prism Materials
Coating options
AR, Mirror, Beam Splitter, UV, Visible and IR Coating Choices
Define Wavelength
Confirm Geometry
Choose Function
Inspect Surface
Application match
Applications in Machine Vision, Medical Optics, Lasers and Scientific Instruments
Industrial Machine Vision
Medical Optical Equipment
Laser Systems
Scientific Research
Desire stage
Customization Capabilities for Drawing-Based Prism Projects
Quality control
Manufacturing and Inspection for Precision Optical Prisms
CNC Machining
Optical Inspection
Traceability
Selection support
How to Specify a Custom Optical Prism Without Overbuilding the Part
Start With Function
Match Material to Use
Confirm Inspection Items
Buyer FAQ
FAQ About Custom Precision Optical Prisms
What prism types can Felix Glass customize?
Which material is practical for high-power lasers?
Can optical coatings be customized by wavelength?
Do you support prototype and small-batch orders?
Cross-link guide
Related Optical Prism, Lens and Filter Pages
Action stage
Request Prism Review
Send Prism Drawings for Engineering Review and RFQ
