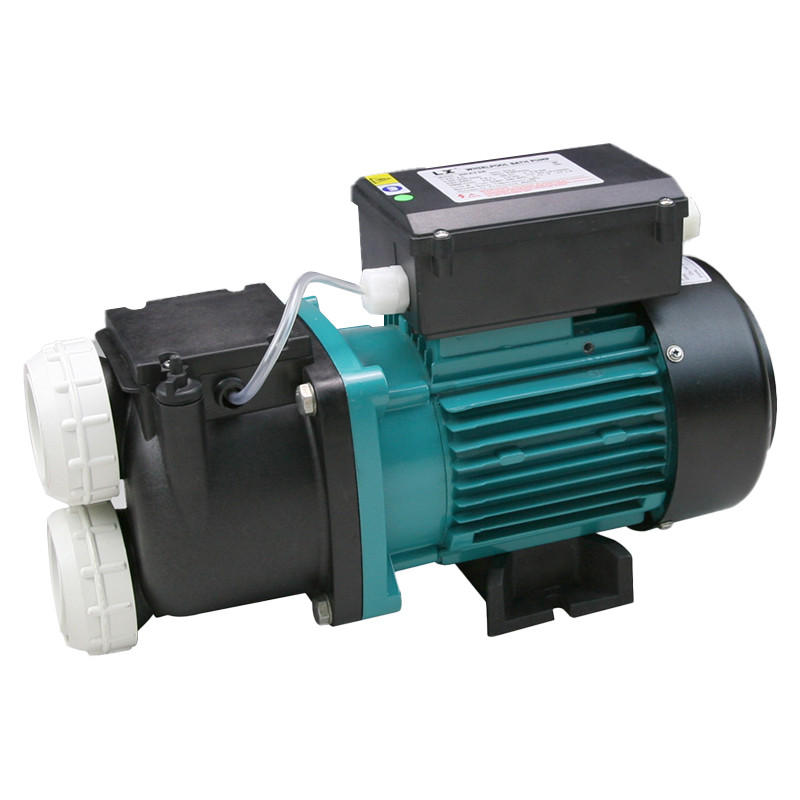

Bathtub Water Pump XDA Series Wholesale | Hydrotherapy Equippment Dual Lower Inlet Massage Bathtub Water Pumpf | Support Mass Supply
group nameWater Pumps
-
Min Order50 piece
brand nameHydrorelax Bathroom industry manufacturer
modelXDA75, XDA100, XDA120, XDA150
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
-
update timeSun, 07 Dec 2025 10:24:12 GMT
Paramtents
Thermal protector: with thermal protector (single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Packging & Delivery
Size410cm x170cm x280cm
Min Order50 piece
Briefing
0.55KW/0.75HP~1.1KW/1.5HP
300~380 QMAX(L/MIN)
300~380 QMAX(L/MIN)
Detailed
Bathtub Water Pump Introduction
The pump is equipped with water pressure type waterless protection, and the pressure sampling and electric pump are integrated. The conduction pressure of the pressure switch is directly sampled from the pressure generated by the electric pump itself when it rotates. When there is no medium in the pump body, the water pressure switch cannot be turned on, thereby achieving the purpose of preventing the electric pump from operating when there is no water in the bathtub.
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Hexagon Bolt | |||
5 | Washer | |||
6 | Pump Casing | |||
7 | O-Ring | |||
8 | Upper Cover | |||
9 | Cross Recessed Pan Head Tapping Screw | |||
10 | Float | |||
11 | Plastic Spacer | |||
12 | Air Drain Plug | |||
13 | Guide Plate | |||
14 | Impeller | |||
15 | Mechanical seal | |||
16 | Shaft Sleeve | |||
17 | O-Ring | |||
18 | Pump Cover | |||
19 | Motor | |||
Bathtub Water Pump Applications
