Wireless monitor and camera
Use a paired display and camera where long cable routing is difficult.

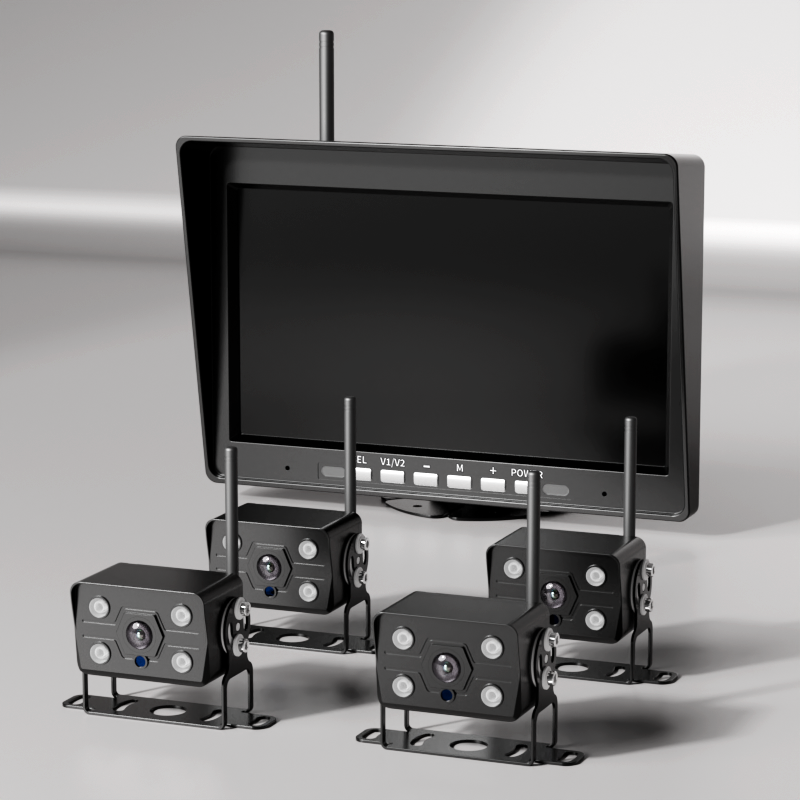

DP240-1 Wireless Monitor and Night-Vision Camera Kit
group nameWireless Camera
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelDP240-1
payment methodT/T, PayPal, Westem Union, Cash
-
update timeFri, 14 Aug 2026 19:00:00 GMT
Paramtents
Voltage 9-30V
Storage 128GB SD Card
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Dimensions 100(L)X60(W)X1.2(H)
Power-on time 2S Max
Transmission distance >200M
RSSI display level 4
Video input impedance 75Ω, Typ.
Audio input impedance 200KΩ, Typ.
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
DP240-1 is a wireless monitor-camera kit with 1080p night vision, quad-view modes, 128GB storage and over-200m range.
Detailed
DP240-1 · Wireless vehicle camera
What is DP240-1?
DP240-1 is a wireless vehicle monitor and camera kit with listed 1080p night vision, 1/2/4-view display modes, SD-card storage and a structured transmission distance above 200 metres.
Buyer overview
Four points to evaluate first
1080p night vision
The current body lists 1920×1080 video and night-view capability.
1/2/4-view modes
The current body lists selectable single, dual and quad display layouts.
Over-200m listed range
Structured attributes list transmission above 200m; real range depends on the installation environment.
Wireless link planning
Test the radio path on the real vehicle
Wireless range depends on antennas, metal structures, obstructions, interference, vehicle movement and the paired receiver. Validate the installation before fleet rollout.
Mounting decision
Confirm camera view, magnet retention, vibration, cable clearance, weather exposure and whether a safety tether is required.
System decision
Confirm receiver or monitor, wireless band, channel count, power or charging, storage and trigger behavior.
Current structured record
Technical specifications
| Voltage | 9-30V |
|---|---|
| Storage | 128GB SD Card |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Dimensions | 100(L)X60(W)X1.2(H) |
| Power-on time | 2S Max |
| Transmission distance | >200M |
| RSSI display level | 4 |
| Video input impedance | 75Ω, Typ. |
| Audio input impedance | 200KΩ, Typ. |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page

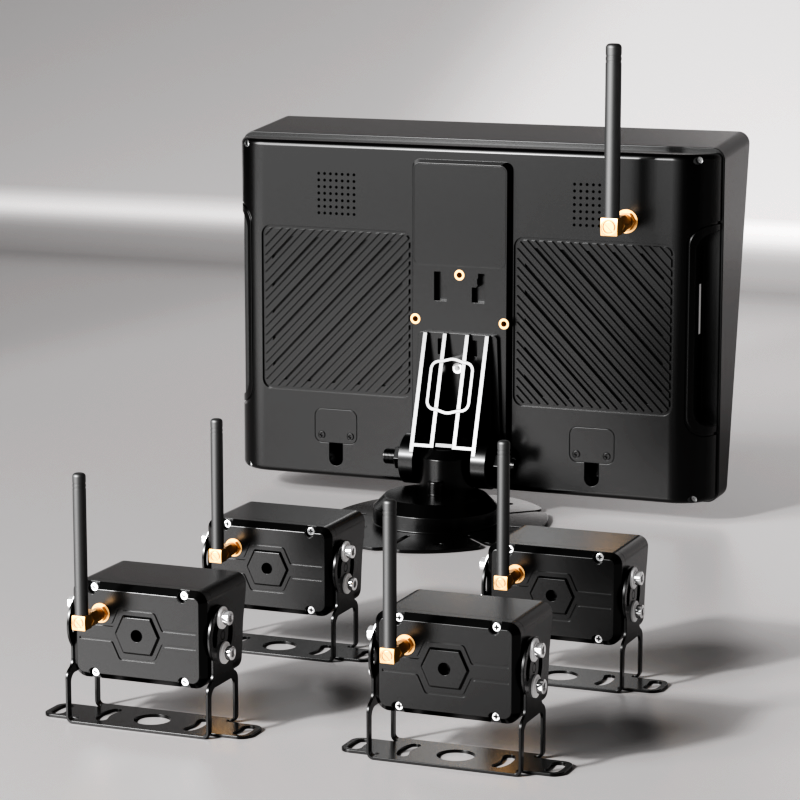

Existing Product and Deployment Views
Deployment planning
Verify view, retention and wireless stability
Inspect the mounting surface, camera angle, antenna clearance, charging access and radio performance under normal vehicle operation.
Example applications
Where DP240-1 may fit
Trailer and truck retrofits
Add rear or side visibility where routing new video cable is impractical.
Agricultural and industrial vehicles
Use a paired wireless view after radio-path and mounting review.
Temporary fleet installations
Support removable or reconfigurable camera layouts with compatible power and storage.
Specification and performance boundary
The structured power range is 9–30V, while the old body says 12–36V. The body states IP69K and 1080p, but those values are absent from the structured attributes. A listed transmission distance above 200m is not a guaranteed installed range; obstructions, interference, antenna placement and vehicle structure affect performance.
Buyer questions
DP240-1 FAQ
What is included in DP240-1?
The product is described as a wireless monitor and camera kit. Confirm camera count, monitor size, antennas, harnesses and brackets in the quotation.
Does it support night vision?
The current body lists 1080p HD night vision. Confirm illumination method, low-light distance and actual camera version.
What display layouts are listed?
The body lists 1, 2 and 4-view switching. Confirm the supplied channel configuration.
What transmission distance is listed?
Structured attributes state more than 200m. Installed range depends on obstruction, radio interference and antenna placement.
What input voltage is correct?
Structured attributes say 9–30V, while the old body says 12–36V. Confirm the approved production specification before wiring.
What should be provided for a quotation?
Share vehicle type, camera count, mounting locations, expected wireless path, storage need, power supply and operating environment.
Confirm the complete wireless system
Share your vehicle, mounting zone and receiver requirements
AlwayCare can review camera placement, wireless path, power, storage, monitor compatibility and environmental exposure.
