1080p baseline
The structured record lists 1920×1080 definition.

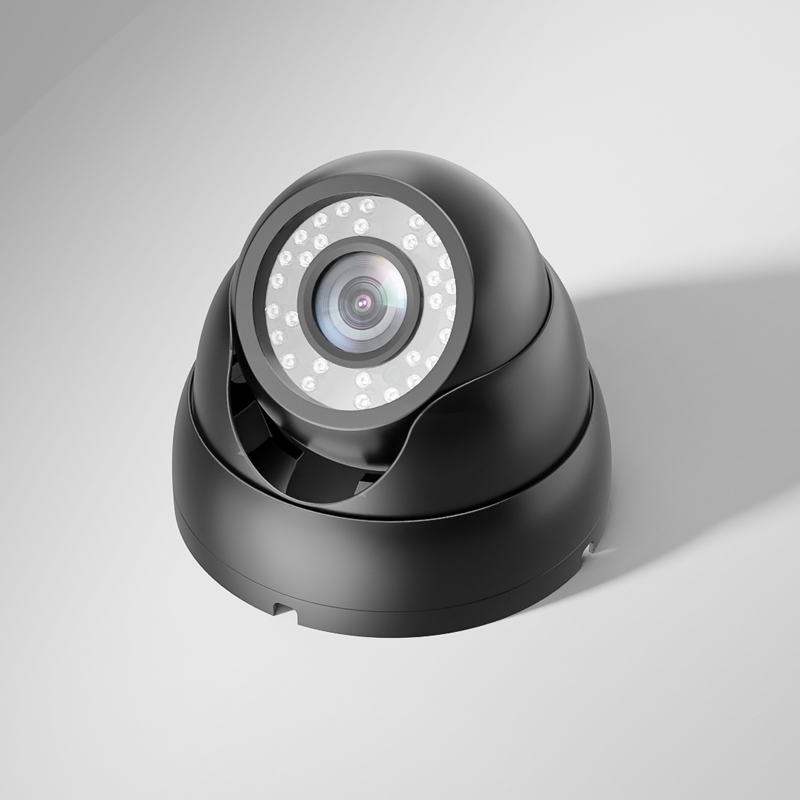

CC803 Infrared HD Vehicle Camera for Fleets
group nameVehicle Camera
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelCC803
payment methodT/T, PayPal, Westem Union, Cash
-
update timeWed, 19 Aug 2026 05:06:04 GMT
Paramtents
Voltage 12V
Definition 1920x1080
Size 60*60*60mm
Application Suitable for All Vehicles
Operating Temperature -30℃ ~ 75℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
CC803 is a 1080p infrared vehicle camera with listed 10–15m night vision and optional audio for fleet systems.
Detailed
CC803 · Vehicle camera
What is CC803?
CC803 is a 12V, 1080p infrared vehicle camera for compatible fleet monitors and recorders. The existing record lists 10–15m night vision, optional audio and optional focal lengths, so final lens and audio configuration should be confirmed before ordering.
Buyer overview
Four points to evaluate first
Infrared night view
The existing body lists infrared imaging and 10–15m night vision.
Compact housing
The structured size is 60×60×60mm.
Configuration choices
Audio and focal length are listed as optional, not standard on every unit.
System fit
Match lens, signal and receiving device
Confirm view, signal, connector, monitor or recorder, power, storage and cable length before installation.
Viewing decision
Define target zone, distance, lens view, night conditions, mounting height and obstruction.
Integration decision
Confirm output channels, video format, connector pinout, power range and compatible equipment.
Current structured record
Technical specifications
| Voltage | 12V |
|---|---|
| Definition | 1920x1080 |
| Size | 60*60*60mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -30℃ ~ 75℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page

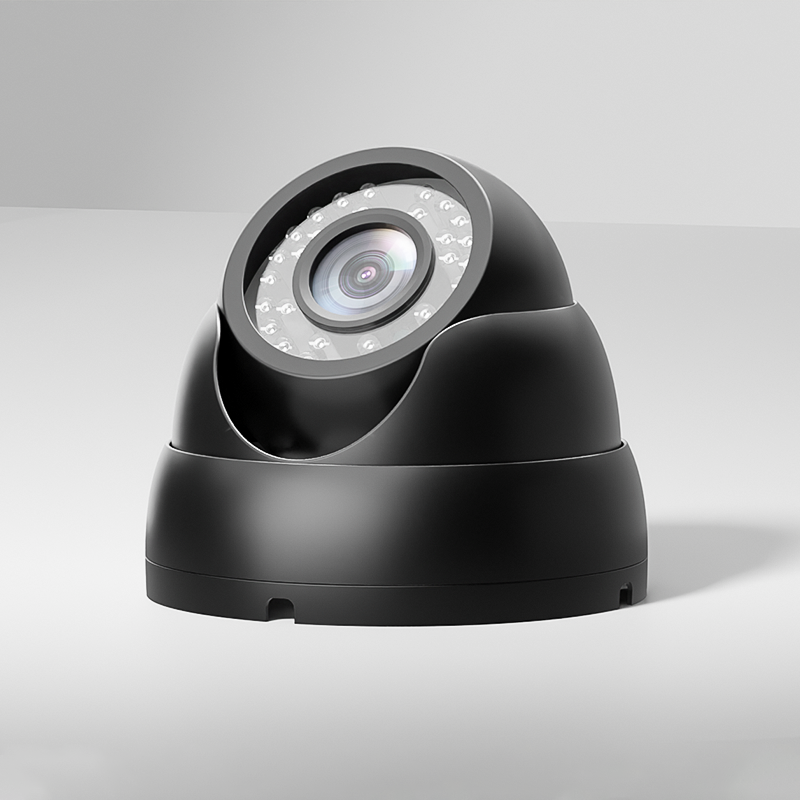

Existing Product and Deployment Views
Installation planning
Validate the real camera view
Test lens coverage, target distance, glare, night illumination, vibration, cable routing and receiving-device image.
Example applications
Where CC803 may fit
Truck and bus exterior views
Evaluate the target zone, night distance and mounting position before selecting the lens.
Municipal and service fleets
Use with a compatible receiving device after checking signal and connector details.
General fleet retrofits
Confirm 12V power, cable route, vibration and actual night image on the vehicle.
Specification and performance boundary
IP68, high-strength glass and 10–15m night vision appear in the existing name/body but are not all present in structured attributes. Audio and lens focal length are optional. Confirm ingress documentation, lens, audio, signal format, connector and real night performance for the selected configuration.
Buyer questions
CC803 FAQ
What resolution is listed for CC803?
The structured record lists 1920×1080 definition.
How far is the listed night vision?
The existing body lists 10–15m. Actual usable distance depends on lens, illumination, mounting and scene conditions.
Does every CC803 include audio?
No. Audio is listed as optional and must be confirmed for the ordered version.
What power input is listed?
The structured record lists 12V.
Can it work with any DVR or monitor?
Compatibility is not automatic. Confirm signal format, connector pinout, power and receiving-device support.
What should be checked before installation?
Confirm monitored zone, lens, night conditions, mount, cable route, connector and receiving equipment.
Confirm the complete camera system
Share your vehicle, monitored zone and receiving equipment
AlwayCare can review view, placement, signal, power, recorder or monitor compatibility and cabling.
