7-inch quad view
The current body lists a four-view display for monitoring several vehicle cameras.

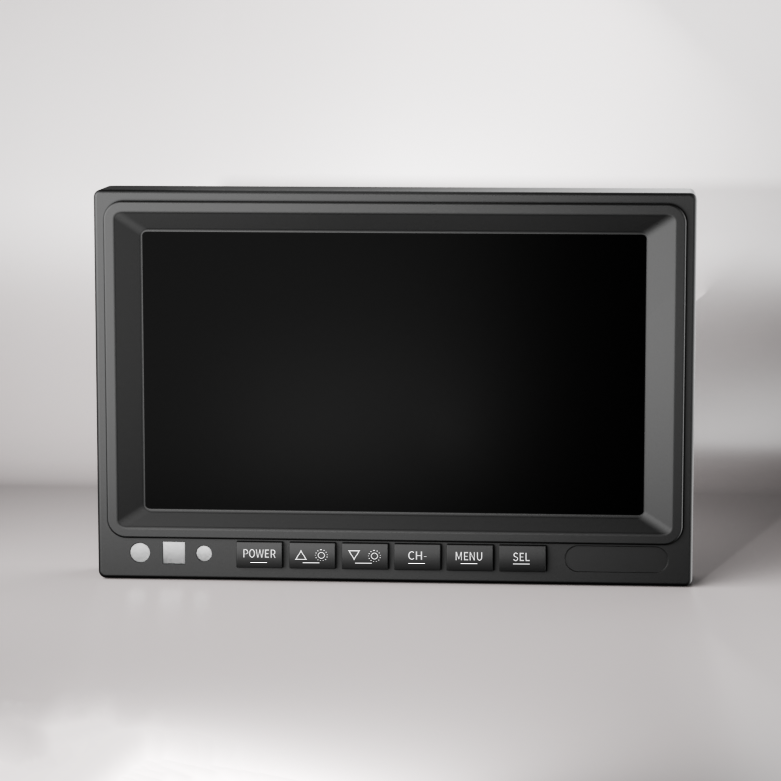

DP230-5 7-Inch Vehicle Monitor with Video Recording
group nameVehicle Monitor
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelDP230-5
payment methodT/T, PayPal, Westem Union, Cash
-
update timeSat, 15 Aug 2026 05:45:14 GMT
Paramtents
Voltage 12-36V
Definition 1920x1080
Storage 256 GB
Application Suitable for All Vehicles

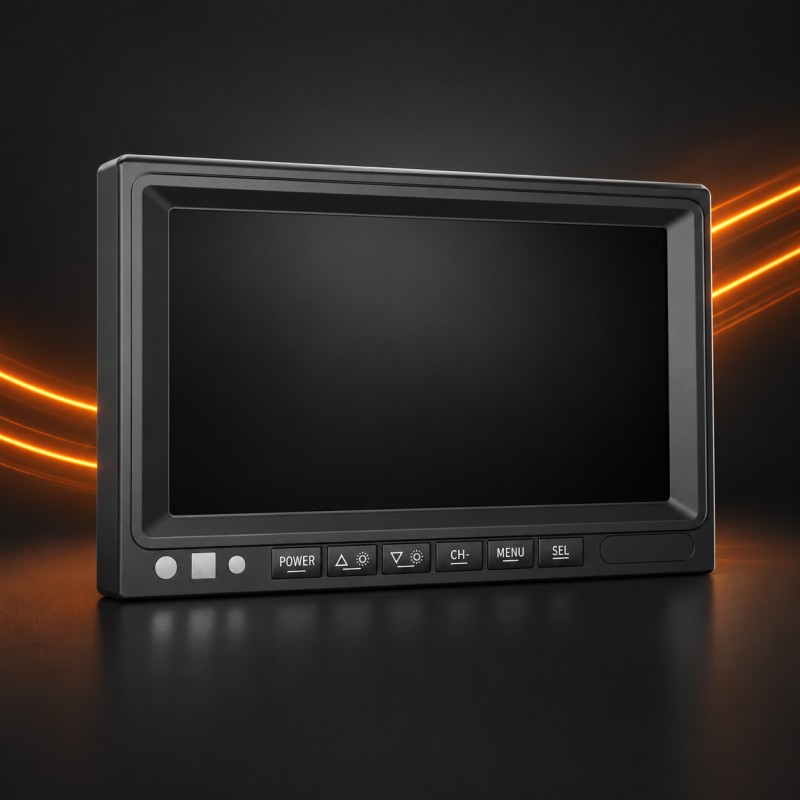

Operating Temperature -20℃ ~ 70℃

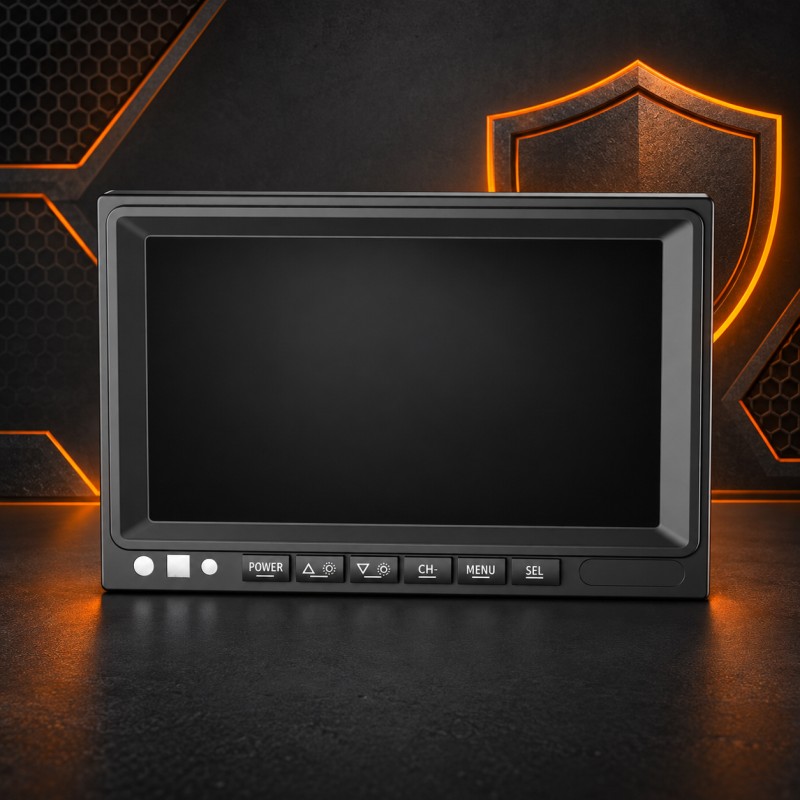

Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
DP230-5 is a 7-inch quad-view vehicle monitor with four-channel AHD recording, automatic brightness and 12–36V input.
Detailed
DP230-5 · Vehicle monitor
What is DP230-5?
DP230-5 is a 7-inch quad-view vehicle monitor that combines four-channel AHD recording, automatic screen-brightness adjustment and listed 256GB storage.
Buyer overview
Four points to evaluate first
Four-channel AHD recording
The source states simultaneous recording from four AHD channels.
Automatic brightness
Screen brightness is described as adjusting automatically for changing cab conditions.
12–36V and 256GB
Structured attributes list wide-voltage input and 256GB storage.
System fit
Match the display to cameras and recorder
A vehicle monitor must match the camera signal, definition, connector, channel layout, trigger behavior, power supply and mounting position. Confirm whether recording or AI functions are inside the monitor or supplied by another device.
Viewing decision
Define camera count, split-screen layout, screen size, viewing distance and automatic trigger views.
Integration decision
Confirm CVBS, AHD or HDMI compatibility, connector pinout, power range, storage and cable lengths.
Current structured record
Technical specifications
| Voltage | 12-36V |
|---|---|
| Definition | 1920x1080 |
| Storage | 256 GB |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Duplicate attribute rows are displayed once. Current structured data is the baseline; older-body conflicts are disclosed below.
Preserved from the original page

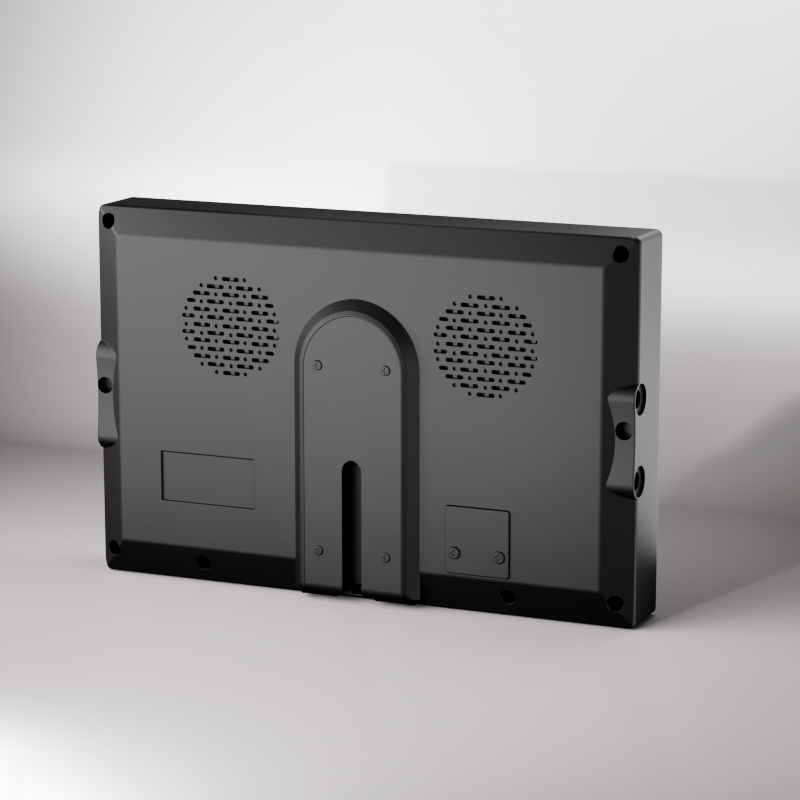

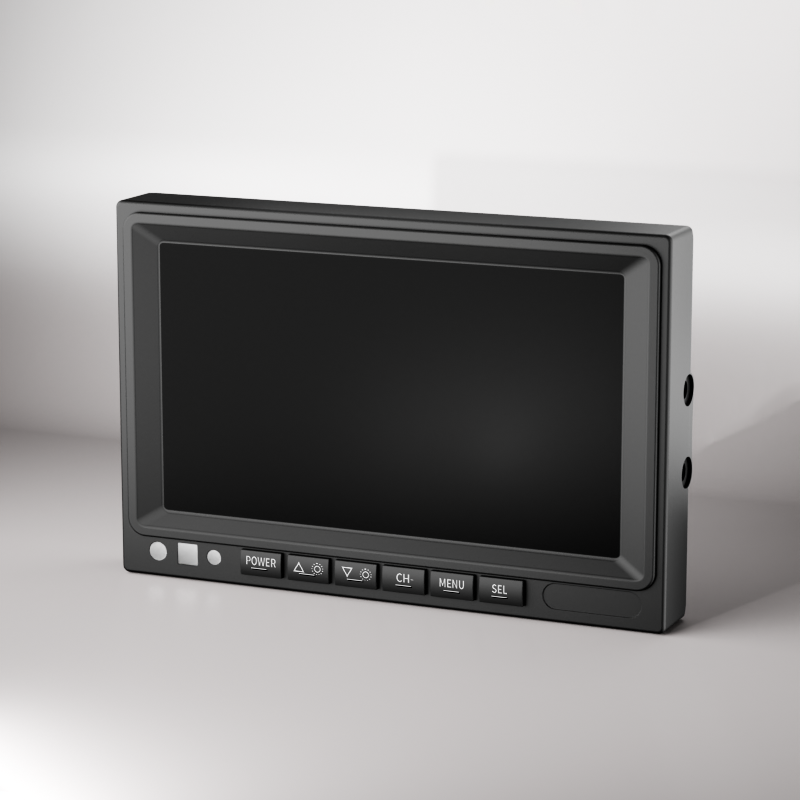

Existing Product and Application Views
Installation planning
Plan the driver view before installation
Check line of sight, glare, cab vibration, bracket clearance, cable routing and whether the display obstructs mirrors, controls or the road view.
Example applications
Where DP230-5 may fit
Lorry reversing systems
Combine rear and side camera views with local four-channel recording.
Delivery fleets
Use a compact monitor-recorder where several operational views are required.
Special-purpose vehicles
Add four-view monitoring after signal, storage and trigger requirements are confirmed.
Specification and integration boundary
The structured attribute ‘Definition’ is 1920×1080, while the body lists 1024×600 display resolution. These may refer to different parts of the system, but the record does not define that distinction. The body also labels 500:1 as ‘Bright lumens’; confirm display contrast, recording resolution, playback, storage format and camera compatibility.
Buyer questions
DP230-5 FAQ
How many channels can DP230-5 record?
The current body states four AHD channels can record simultaneously. Confirm supported camera resolutions and frame rates.
What is the screen resolution?
The body lists 1024×600 for the display. A separate structured ‘Definition’ value says 1920×1080, so confirm whether that refers to video input or recording.
What storage is listed?
The structured record and body list 256GB. Confirm media type, card qualification, file system and expected retention.
Does the screen adjust brightness automatically?
Yes, automatic screen-brightness adjustment is listed in the current body.
What input voltage is supported?
The structured attributes list 12–36V. Confirm the supplied harness, fuse and transient protection.
What should be supplied for a quotation?
Provide vehicle type, four camera models and signals, desired recording resolution, storage duration, trigger inputs, mounting position and cable lengths.
Confirm the complete viewing system
Share your cameras, recorder and vehicle requirements
AlwayCare can review signal compatibility, channel layout, display placement, power, storage and cabling.
