FHUM104 Premium Aluminum Roman Center Pole Outdoor Umbrella, Double-Tier Canopy, Push-Pull, LED Optional, 2.1×2.1M / 3×3M
group nameCenter Pole Umbrella
-
Min Order1 bag
brand nameForis Hortus
modelFHUM104
payment methodL/C, D/A, D/P, Western Union
-
update timeSat, 29 Aug 2026 01:00:42 GMT
Paramtents
Brand Foris Hortus (OEM available)
Model FHUM104 (Phoenix Echo No.1)
Series Roman Umbrella Series
Type Commercial Center Pole Outdoor Umbrella
Size Option A 2.1 × 2.1M Double (12 kg without base)
Size Option B 3 × 3M Double (15 kg without base)
Main Pole Ø48 × 1.2mm Natural Anodized Aluminum
Ribs 14.5 × 24 × 1.0mm Aluminum
Fabric 250g Polyester with PA Coating
Opening System Push-Pull Operation
LED Lighting Optional integrated warm-white LED strips
Wind Resistance Beaufort 4 — approx. 25 km/h (2.1×2.1M) / 30 km/h (3×3M)
Custom Logo Available on canopy corners and valance
Base Options Water Tank / Resin / Iron Plate (sold separately)
Recommended Use Hotels, Resorts, Restaurants, Cafés, Poolside
Packging & Delivery
Min Order1 bag
Briefing
Detailed
FHUM104 Premium Aluminum Center Pole Umbrella
Double-tier canopy, push-pull opening and an optional integrated LED system bring reliable, all-day shading to hotels, resorts and busy outdoor hospitality spaces.
- 2.1×2.1M & 3×3M double-canopy formats
- Natural anodized aluminum frame, 250g PA-coated polyester
- Optional LED lighting for evening atmosphere
- Beaufort 4 wind-rated for commercial sites
Engineered for Commercial Outdoor Hospitality
Six reasons operators choose the FHUM104 for their outdoor spaces.
Push-Pull Opening
Simple push-pull operation replaces fragile rope-and-pulley systems for smoother, longer service life.
Double-Tier Canopy
Two-layer vented top releases wind pressure and keeps the shade surface cooler on hot days.
Optional LED Lighting
Integrated warm-white LED strips turn the umbrella into evening ambient lighting on demand.
Anodized Aluminum Frame
Natural anodized main pole and ribs resist corrosion in coastal and poolside environments.
250g PA-Coated Fabric
High-density polyester with PA coating for UV protection, water resistance and color durability.
Custom Logo Branding
Canopy corners and valance accept custom printing for hotel, restaurant and resort branding.

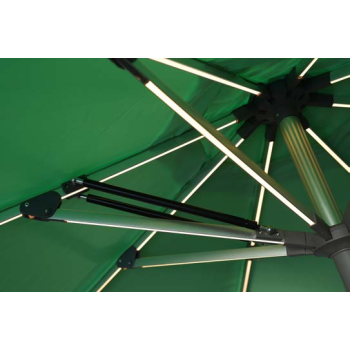

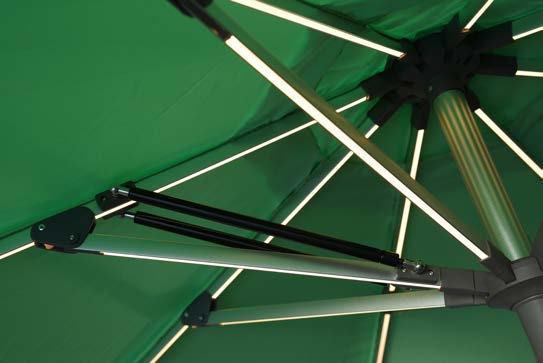

Aluminum Frame & LED Lighting Detail
The hub distributes load evenly across the eight anodized aluminum ribs, with each rib channel housing a warm-white LED strip that turns the umbrella into architectural evening lighting.
- Main pole: Ø48 × 1.2mm natural anodized aluminum
- Ribs: 14.5 × 24 × 1.0mm aluminum, 8-arm layout
- Integrated LED strips with on-rib control box
- Hard-anodized hubs and locking hardware
Simple Push-Pull, Smarter LED Control
The push-pull pole extends smoothly and locks securely. The integrated LED control box sits on the rib shoulder for easy access, with a single on/off switch and a status indicator for quick nighttime operation.
- Push-pull opening, no rope or pulley wear parts
- Rib-mounted LED control with on/off and indicator
- Smooth locking for both fully open and closed positions
- Lower maintenance than traditional rope systems
FHUM104 Technical Specifications
Two size options, one consistent specification set.
| Product Model | FHUM104 (Phoenix Echo No.1) |
|---|---|
| Umbrella Type | Roman Center Pole Umbrella |
| Canopy Style | Double-tier vented canopy |
| Size Option A | 2.1 × 2.1M Double — 12 kg (without base) |
| Size Option B | 3 × 3M Double — 15 kg (without base) |
| Main Pole | Ø48 × 1.2mm natural anodized aluminum |
| Ribs | 14.5 × 24 × 1.0mm aluminum |
| Fabric | 250g polyester with PA coating (UV, water, fade resistant) |
| Opening System | Push-Pull operation |
| LED Lighting | Optional integrated warm-white LED strips |
| Wind Resistance | Beaufort 4 — approx. 25 km/h (2.1×2.1M) / 30 km/h (3×3M) |
| Custom Logo | Available on canopy corners and valance |
| Base Options | Water tank base / Resin base / Iron plate base (sold separately) |
Built for Commercial Outdoor Spaces
From boutique cafés to resort pool decks, the FHUM104 is designed to perform in real hospitality environments.
Hotels & Resorts
Premium guest-facing shading with optional LED for evening atmospheres.
Outdoor Restaurants
3×3M format covers standard four-top tables, double-tier vents gusts.
Cafés & Lounges
2.1×2.1M format fits compact terraces and side-walk seating.
Poolside & Decks
Anodized aluminum resists pool chlorides and salt-air exposure.
Need help choosing the right size or base? Talk to our team — we can recommend the right FHUM104 setup for your space.
Common Questions About FHUM104
Is the FHUM104 suitable for coastal or poolside use?
Yes. The natural anodized aluminum frame and stainless hardware are chosen for chloride-rich environments. A water-tank or resin base is recommended; for permanent installs we suggest the iron plate base.
How does the push-pull opening work, and is it reliable?
The pole extends in two sections and locks with an internal catch. Compared to rope-and-pulley systems, it has far fewer wear parts, which lowers long-term maintenance for commercial operators.
What size FHUM104 should I choose for a four-top restaurant table?
The 3×3M Double is the standard recommendation for four-top outdoor tables with a clearance of about 60–80cm. For two-top or compact café tables, the 2.1×2.1M Double is usually enough.
Can the LED version be retrofitted, and how is it powered?
The LED kit is pre-routed into the ribs at the factory and is best ordered together with the umbrella. Power comes from a standard mains adapter with a low-voltage rib harness, and the on-rib control box provides simple on/off control.
Get a Quote for FHUM104
Tell us your size, fabric color, LED option and base preference. We will reply with a tailored quotation within one business day.
