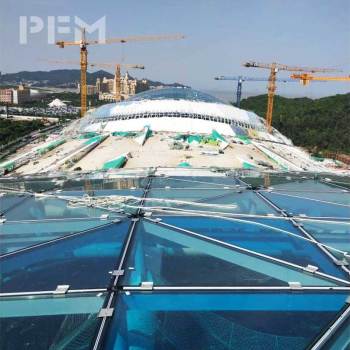

Ultra-Large-Span Grid Shell Roof Structure Aquarium
group nameRoof Structure System
-
Min Order1 piece
brand namePFM Architecture Service Provider
payment methodT/T, L/C
-
update timeFri, 05 Dec 2025 19:38:04 GMT
Paramtents
Project Type Aquarium
Structural System Spherical single-layer grid shell structure
Span 150 meters
Roofing Material Steel structure with a glass skylight dome system
Design Service Life 50 years
Seismic Design Seismic Intensity 8, seismic isolation bearing
Construction Period 12 months
Packging & Delivery
Min Order1 piece
Briefing
PFM, your partner for large-span roof structures. From design to construction, we provide global customers with integrated and complex spatial structure solutions.
Detailed
Quick Details
AQUARIUM FEATURING AN ULTRA-LARGE-SPAN GRID SHELL ROOF STRUCTURE
The project is a marine-themed science education and research complex located in Zhuhai, Guangdong Province, with a total construction area of approximately 365,000 square meters. As the core landmark of the marine resort area, its roof features an ultra-large-span spherical grid shell structure, creating an unobstructed, immersive spherical space within the venue.
This roof not only demonstrates advanced structural engineering design and construction capabilities but also showcases the innovative application of spatial structures in large-scale cultural and tourism architecture.
-These project photos were provided by our partner GZZHCE.
Project Type | Aquarium |
Structural System | Spherical single-layer grid shell structure |
Span | 150 meters |
Roofing Material | Steel structure with a glass skylight dome system |
Design Service Life | 50 years |
Seismic Design | Designed for seismic intensity of 8, using a seismic isolation bearing system |
Construction Period | 12 months |
PROJECT TECHNICAL SOLUTION
Joints & Connections
The tubular truss members are welded at the nodes to ensure overall structural continuity.
Material Selection
Main Structure: Q355B / Q460 steel, offering excellent bending resistance and high load-bearing capacity.
Material Selection
Roofing Material： Metal panels (e.g., aluminum-magnesium-manganese alloy): lightweight, durable, and low-maintenance.
Skylights use insulated laminated glass for natural lighting and energy efficiency.
PROJECT HIGHLIGHTS & ADVANTAGES
World-Leading Large-Span Spherical Roof
A structural scale that ranks among the top of its kind in marine-themed facilities.
Column-Free Space Experience
Maximizes exhibition area and provides an immersive viewing experience.
Complex Curved Surface Construction
Demonstrates advanced capabilities in spatial structure design and installation.
Fusion of Culture and Technology
More than a science venue — it stands as a landmark of architectural art and engineering innovation.
Why Choose PFM
Specialized Solutions For Your Project
With rich international EPC experience, we offer PFM customized structural and roofing solutions tailored to each project's function, design, and architectural needs—ensuring efficient construction, unique appearance, and reliable performance.
| A Variety of Combination Schemes | ||||
| Combination Scheme | Advantages | Application | ||
| Space Frame | Metal Roof | Cost-effective, efficient, long-span | Stadiums, exhibition halls, warehouses | |
| Glass Roof | Long-span, excellent natural lighting | Transport hubs, commercial atriums, lobbies | ||
Truss | Metal Roof | Flexible design, good daylighting | Museums, shopping malls, greenhouses | |
Glass Roof | High load capacity, strong and stable | Heavy-duty workshops, warehouses, venues with hanging systems | ||
Tensile Membrane | ETFE | Unique shape, visually striking | Stadium canopies, landmark building entrances | |
Glass Roof | Ultra-lightweight, translucent and energy-saving | Eco-greenhouses, high-end cultural and sports landmarks | ||
steel structure | Metal Roof | Proven technology, highly adaptable | Commercial buildings, offices, schools, traditional industrial facilities | |
Latticed Shell | Glass Skylight | Natural daylighting, aesthetically pleasing, and modern minimalist design. | Commercial Plazas, Large Shopping Centers | |
Other Customizable Parameters | ||||
Span Range | From 30 to 200 meters, tailored to specific project requirements. | |||
Seismic Rating | Designed to meet seismic intensity levels from 6 to 9. | |||
Material Options | Including Q235/Q355 structural steel, ETFE membrane, weathering steel, and more. | |||
Sustainable Design | Compliant with green building standards, featuring energy-efficient roofing to reduce energy consumption. | |||
Construction Method | Modular prefabrication to shorten construction time and reduce on-site risks. | |||
MORE PROJECTS
30,000 Seats National FIFA Stadium
73,000–75,000 Seats Guangzhou World-Class Football Stadium
Nansha Comprehensive Culture and Sports Complex
Nansha Stadium Upgrade and Renovation
Qingyuan Olympic Sports Center
Zhuhai Sports Center Renovation Phase I Project
Our Supply Capacity
Design Capability
A professional structural design team skilled in complex spatial modeling, structural analysis, and optimized design, ensuring the roofing system is safe, visually appealing, and cost-effective.
Procurement Capability
Long-term partnerships with top manufacturers of steel structures and roofing systems enable flexible material and system selection, guaranteeing both quality and delivery timelines.
Construction Capability
An experienced international engineering team specializes in large-span roof structures and systematic installation, ensuring high-standard, on-time project delivery.
Through an integrated Design–Procurement–Construction (DPC) supply model, PFM delivers stable and reliable turnkey roofing solutions—minimizing risk and reducing overall costs for clients.
