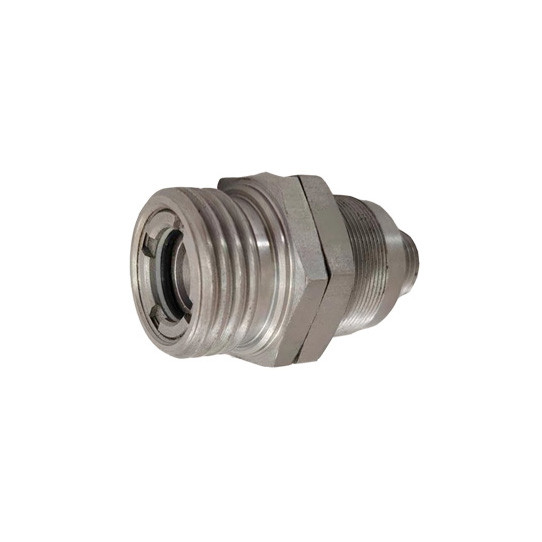

EH 64 Series - VR German Screw Quick Coupler (Steel)
group nameScrew-To-Connect Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 20:52:20 GMT
Paramtents
Interchange STUCCHI VR SERIES
Interchange FASTER FLV SERIES
Interchange VOSWINKEL RH SERIES
Interchange VOSWINKEL RK SERIES
Interchange DNP PRH3 SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with STUCCHI VR SERIES, FASTER FLV SERIES, VOSWINKEL RH SERIES, VOSWINKEL RK SERIES, and DNP PRH3 SERIES. Steel Product. The 64 Series German Screw Coupler features a low-leakage valve for sealing and threaded connections, enabling secure mating even under residual pressure. Its robust construction makes it ideal for demanding applications, including mobile construction and industrial hydraulics.
Detailed
64 Series
Hydraulic Quick Coupling (Steel)
Zero Leakage Screw-To-Connect Coupling, ISO8434-1
This EH series is interchangeable with STUCCHI VR SERIES, FASTER FLV SERIES, VOSWINKEL RH SERIES, VOSWINKEL RK SERIES, and DNP PRH3 SERIES. Steel Product. The 64 Series German Screw Coupler features a low-leakage valve for sealing and threaded connections, enabling secure mating even under residual pressure. Its robust construction makes it ideal for demanding applications, including mobile construction and industrial hydraulics.
Female
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | CH1(mm) | T |
| HFSMC6438-M16X1.5 | 3/8'' | 61.6 | 38.7 | 22 | 32 | M16X1.5/L10 |
| HFSMC6438-M18X1.5 | 3/8'' | 61.6 | 38.7 | 22 | 32 | M18X1.5/L12 |
HFSMC6438-M22X1.5 | 3/8'' | 62.6 | 38.7 | 22 | 32 | M22X1.5/L15 |
HFSMC6412-M22X1.5 | 1/2'' | 71.6 | 54 | 24 | 46 | M22X1.5/L15 |
HFSMC6434-M22X1.5 | 3/4'' | 84.1 | 68 | 32 | 60 | M22X1.5/L15 |
HFSMC6434-M26X1.5 | 3/4'' | 84.1 | 68 | 32 | 60 | M26X1.5/L18 |
HFSMC6410-M26X1.5 | 1'' | 107 | 64 | 41 | 55 | M26X1.5/L18 |
HFSMC6410-M30X1.5 | 1'' | 109 | 64 | 41 | 55 | M30X1.5/L22 |
HFSMC6410-M36X2 | 1'' | 109 | 64 | 41 | 55 | M36X2/128 |
HFSMC64114-M45X2 | 1-1/4'' | 130.4 | 89.7 | 55 | / | M45X2/L30 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | CH1(mm) | T |
| HFSMC6438-M18X1.5 | 3/8'' | / | / | / | / | M18X1.5/S10 |
| HFSMC6438-M20X1.5 | 3/8'' | 64.6 | 38.7 | 22 | 32 | M20X1.5/S12 |
HFSMC6438-M22X1.5 | 3/8'' | 64.6 | 38.7 | 22 | 32 | M22X1.5/S14 |
HFSMC6438-M24X1.5 | 3/8'' | 64.6 | 83.7 | 22 | 32 | M24X1.5/S16 |
HFSMC6412-M24X1.5 | 1/2'' | 73.6 | 54 | 24 | 46 | M24X1.5/S16 |
HFSMC6412-M30X2 | 1/2'' | 100.8 | 54 | 32 | 46 | M30X2/S20 |
HFSMC6434-M24X1.5 | 3/4'' | 86.1 | 68 | 32 | 60 | M24X1.5/S16 |
HFSMC6434-M30X2 | 3/4'' | 86.1 | 68 | 32 | 60 | M30X2/S20 |
HFSMC6410-M30X2 | 1'' | 111 | 64 | 41 | 55 | M30X2/S20 |
HFSMC6410-M36X2 | 1'' | 113 | 64 | 41 | 55 | M36X2/S25 |
HFSMC6410-M42X2 | 1'' | 115 | 64 | 41 | 55 | M42X2/S30 |
HFSMC64114-M52X2 | 1-1/4'' | 136.4 | 89.7 | 55 | / | M52X2/S38 |
Male
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | CH2(mm) | T |
| HFSMP6438-M16X1.5 | 3/8'' | 60 | 36 | 36 | M16X1.5/L10 |
| HFSMP6438-M18X1.5 | 3/8'' | 60 | 36 | 36 | M18X1.5/L12 |
HFSMP6438-M22X1.5 | 3/8'' | 61 | 36 | 36 | M22X1.5/L15 |
HFSMP6412-M22X1.5 | 1/2'' | 69.7 | 41 | 41 | M22X1.5/L15 |
HFSMP6434-M22X1.5 | 3/4'' | 90.1 | 50 | 55 | M22X1.5/L15 |
HFSMP6434-M26X1.5 | 3/4'' | 90.1 | 50 | 55 | M26X1.5/L18 |
HFSMP6410-M26X1.5 | 1'' | 96.2 | 60 | 55 | M26X1.5/L18 |
HFSMP6410-M30X1.5 | 1'' | 98.2 | 60 | 55 | M30X1.5/L22 |
HFSMP6410-M36X2 | 1'' | 98.2 | 60 | 55 | M36X2/L28 |
HFSMP64114-M45X2 | 1-1/4'' | 123 | 90.5 | 85 | M45X2/L30 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | CH2(mm) | T |
| HFSMP6438-M18X1.5 | 3/8'' | 61 | 36 | 36 | M18X1.5/S10 |
| HFSMP6438-M20X1.5 | 3/8'' | 61 | 36 | 36 | M20X1.5/S12 |
HFSMP6438-M22X1.5 | 3/8'' | 63 | 36 | 36 | M22X1.5/S14 |
HFSMP6438-M24X1.5 | 3/8'' | 63 | 36 | 36 | M24X1.5/S16 |
HFSMP6412-M24X1.5 | 1/2'' | 71.7 | 41 | 41 | M24X1.5/S16 |
HFSMP6412-M30X2 | 1/2'' | 73.7 | 41 | 41 | M30X2/S20 |
HFSMP6434-M24X1.5 | 3/4'' | / | / | / | M24X1.5/S16 |
HFSMP6434-M30X2 | 3/4'' | 94.1 | 50 | 55 | M30X2/S20 |
HFSMP6410-M30X2 | 1'' | 100.2 | 60 | 55 | M30X2/S20 |
HFSMP6410-M36X2 | 1'' | 100.2 | 60 | 55 | M36X2/S25 |
HFSMP6410-M42X2 | 1'' | 104.2 | 60 | 55 | M42X2/S30 |
HFSMP64114-M52X2 | 1-1/4'' | 129 | 90.5 | 85 | M52X2/S38 |
Accessories
Not Applicable
