EH 68 Series - NS Agricultural ISO 5675 Quick Couplings, with Ball Valve (Steel)
group nameAgricultural ISO 5675 Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 05:31:19 GMT
Paramtents
Interchange PARKER 4000 SERIES
Interchange EATON AEROQUIP FD42 SERIES
Interchange SAFEWAY S20 SERIES
Interchange STUCCHI IR SERIES
Interchange DIXON AG SERIES
Interchange FASTER NS SERIES
Interchange SNAP-TITE 60 SERIES
Interchange DNP PDS1 SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER 4000 SERIES, DIXON AG SERIES, EATON AEROQUIP FD42 SERIES, FASTER NS SERIES, DNP PDS1 SERIES, STUCCHI IR SERIES, SAFEWAY S20 SERIES, and SNAP-TITE 60 SERIES. Steel Product. ISO-5675 compliant. General-purpose ball valve couplings with quick-disconnect functionality. ISO-7241-A compliant (1/2'' Body Size Only). The rest body sizes are interchangeable with the PARKER 4000 series and Faster NS series. Note that the FASTER NS SERIES 3/4'' size is different from the PARKER 4000 Series 3/4'' size.
Detailed
68 Series
Hydraulic Quick Coupling (Steel)
Ball Valve, ISO-5675
This EH series is interchangeable with PARKER 4000 SERIES, DIXON AG SERIES, EATON AEROQUIP FD42 SERIES, FASTER NS SERIES, DNP PDS1 SERIES, STUCCHI IR SERIES, SAFEWAY S20 SERIES, and SNAP-TITE 60 SERIES. Steel Product. ISO-5675 compliant. General-purpose ball valve couplings with quick-disconnect functionality. ISO-7241-A compliant (1/2'' Body Size Only). The rest body sizes are interchangeable with the PARKER 4000 series and Faster NS series. Note that the FASTER NS SERIES 3/4'' size is different from the PARKER 4000 Series 3/4'' size.

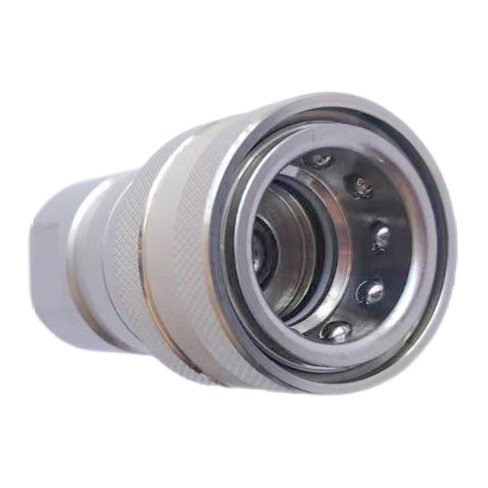

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6814-1/4" | 1/4'' | 52.5 | 28 | S19 | 1/4"BSPP(NPT) |
| HFSFC6838-3/8" | 3/8'' | 59.5 | 35 | S22 | 3/8"BSPP(NPT) |
HFSFC6812-1/2" | 1/2'' | 66 | 38 | S27 | 1/2"BSPP(NPT) |
HFSFC6812-3/4"UNF | 1/2'' | 66 | 38 | S27 | 3/4"-16UNF |
HFSFC6834-3/4" | 3/4'' | 80 | 48 | S33 | 3/4"BSPP(NPT) |
HFSFC6810-1" | 1'' | 88.5 | 52.5 | S39 | 1"BSPP(NPT) |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6814-1/4" | 1/4'' | 35 | S19 | 1/4"BSPP(NPT) |
| HFSFP6838-3/8" | 3/8'' | 40.5 | S24 | 3/8"BSPP(NPT) |
HFSFP6812-1/2" | 1/2'' | 46 | S27 | 1/2"BSPP(NPT) |
HFSFP6812-3/4"UNF | 1/2'' | 46 | S27 | 3/4"-16UNF |
HFSFP6834-3/4" | 3/4'' | 56.5 | S35 | 3/4"BSPP(NPT) |
HFSFP6810-1" | 1'' | 67 | S41 | 1"BSPP(NPT) |
Accessories
Color Can Be Customized
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-5675-1/4-P-P | ISO-5675-1/4-C-P | PVC |
| 06 | 10 | ISO-5675-3/8-P-P | ISO-5675-3/8-C-P | PVC |
08 | 12.5 | ISO-5675-1/2-P-P | ISO-5675-1/2-C-P | PVC |
12 | 20 | ISO-5675-3/4-P-P | ISO-5675-3/4-C-P | PVC |
| 16 | 25 | ISO-5675-1-P-P | ISO-5675-1-C-P | PVC |
