EH 83 Series - ISO 7241-B Quick Couplings (Stainless Steel)
group nameISO 7241-B Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeMon, 08 Dec 2025 19:41:25 GMT
Paramtents
Interchange PARKER 60 SERIES
Interchange DIXON H SERIES
Interchange EATON AEROQUIP FD45 SERIES
Interchange FASTER HNV STAINLESS STEEL SERIES
Interchange DNP PBVX SERIES
Interchange STUCCHI IRBX SERIES
Interchange HANSEN HK SERIES
Interchange SAFEWAY SS10 SERIES
Interchange VOSWINKEL IB-VA SERIES
Interchange GROMELLE 635-Z SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV STAINLESS STEEL SERIES, DNP PBVX SERIES, STUCCHI IRBX SERIES, HANSEN HK SERIES, SAFEWAY SS10 SERIES, VOSWINKEL IB-VA SERIES, and GROMELLE 635-Z SERIES. Stainless Steel Product. Standard couplings for industrial applications with stainless steel components (AISI 316). ISO 7241 part B interchange.
Detailed
83 Series
Hydraulic Quick Coupling (Stainless Steel)
ISO-7241-B, Poppet Valve
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV STAINLESS STEEL SERIES, DNP PBVX SERIES, STUCCHI IRBX SERIES, HANSEN HK SERIES, SAFEWAY SS10 SERIES, VOSWINKEL IB-VA SERIES, and GROMELLE 635-Z SERIES. Standard couplings for industrial applications with stainless steel components (AISI 316). ISO 7241 part B interchange.

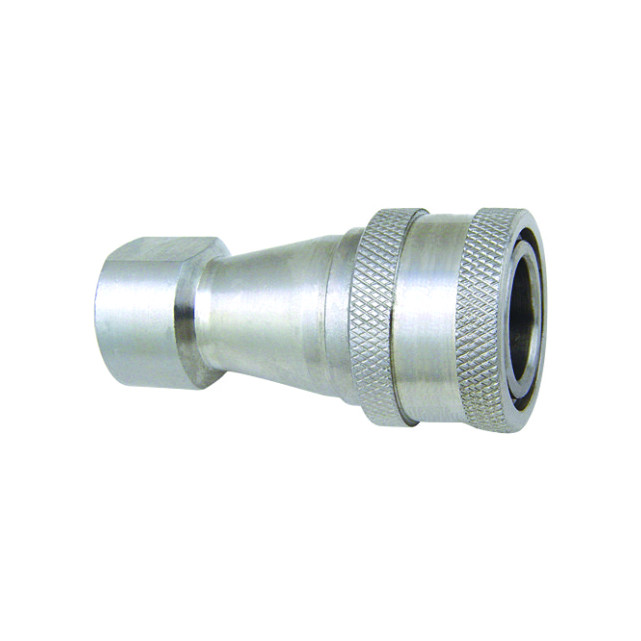

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSSFC8318-1/8" | 1/8'' | 48 | 24 | S14 | 1/8"NPT(BSPP) |
| HFSSFC8314-1/4" | 1/4'' | 58 | 28 | S17 | 1/4"NPT(BSPP) |
HFSSFC8338-3/8" | 3/8'' | 65 | 35 | S21 | 3/8"NPT(BSPP) |
HFSSFC8312-1/2" | 1/2'' | 72 | 44.5 | S29 | 1/2"NPT(BSPP) |
HFSSFC8334-3/4" | 3/4'' | 88 | 55 | S35 | 3/4"NPT(BSPP) |
HFSSFC8310-1" | 1'' | 102 | 65 | S41 | 1"NPT(BSPP) |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFP8318-1/8" | 1/8'' | 30 | S14 | 1/8"NPT(BSPP) |
| HFSSFP8314-1/4" | 1/4'' | 36.5 | S17 | 1/4"NPT(BSPP) |
HFSSFP8338-3/8" | 3/8'' | 40 | S21 | 3/8"NPT(BSPP) |
HFSSFP8312-1/2" | 1/2'' | 44 | S29 | 1/2"NPT(BSPP) |
HFSSFP8334-3/4" | 3/4'' | 52.5 | S35 | 3/4"NPT(BSPP) |
HFSSFP8310-1" | 1'' | 62 | S42 | 1"NPT(BSPP) |
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-B-1/4-P-P | ISO-B-1/4-C-P | PVC |
| 06 | 10 | ISO-B-3/8-P-P | ISO-B-3/8-C-P | PVC |
08 | 12.5 | ISO-B-1/2-P-P | ISO-B-1/2-C-P | PVC |
12 | 20 | ISO-B-3/4-P-P | ISO-B-3/4-C-P | PVC |
| 16 | 25 | ISO-B-1-P-P | ISO-B-1-C-P | PVC |
